DS5 Isolated Bipolar Constant Current Stimulator DS5 Operator's Manual 5.0
Mains Plug Connections
If you have to remove the fitted plug to connect your own plug, the connections are:-
Line or Hot - Brown
Neutral – Blue
Earth or Ground – Green/Yellow
A mains plug should be used which is so constructed that if the lead is pulled the earth/ground wire cannot
come into contact with the line or neutral pins.
This instrument MUST be Earthed/Grounded.
Mains Plug Fuse
If it is possible to fit a fuse into the mains plug, this should be of the correct style and be rated at 3 Amps.
Mains Voltage Selector
The DS5 mains voltage selector should be correctly configured for the local mains voltage supply. Four
voltage options are available (240V, 200V, 120V and 100V) and these are selected by appropriately
positioning both jumpers located in the “Voltage Selector” panel on the rear panel of the DS5.

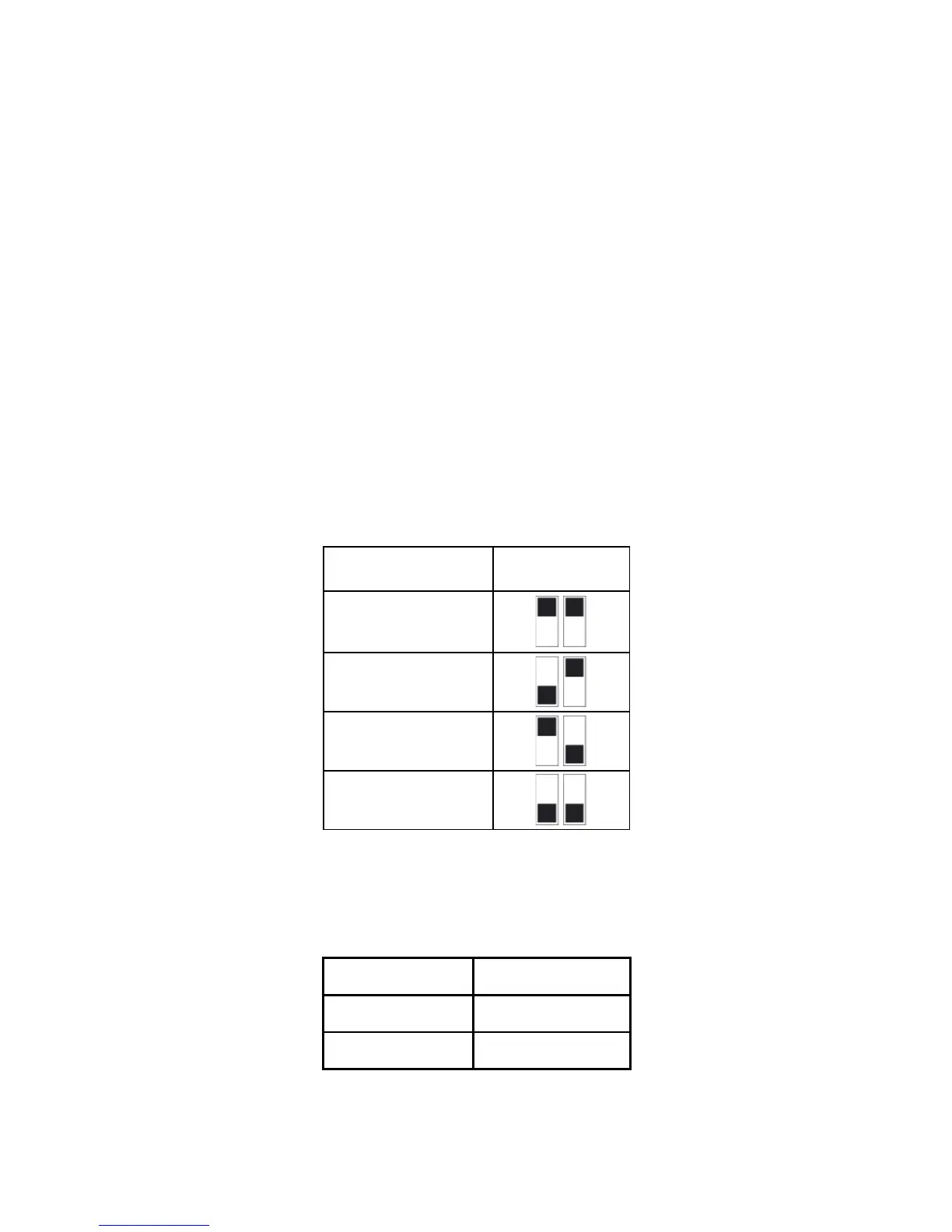

Mains Voltage
Setting
Jumper
Positions
240V
(e.g. Europe & Australia)
200V
(e.g. Japan 200V)
120V
(e.g. USA & Canada)
100V
(e.g. Japan 100V)
Mains Inlet Fuses
Check that the correct fuses have been inserted for your supply voltage. The factory setting is 200-240 volts
and the alternative is 100-120V.
Mains Voltage Correct Fuse
100-120V T 500mA L
200-240V T 250mA L
If replacing these fuses, please ensure the correct size, rating and type is used as a replacement.
Digitimer Ltd. 13 of 52 Copyright © 2009
