DS5 Isolated Bipolar Constant Current Stimulator DS5 Operator's Manual 5.0

Help > Online Help

Opens a PDF copy of the DS5 Operators Manual.

Help > About

Displays information about the DS5 UI sotware. This can also be accessed via the icon

DS5 Console

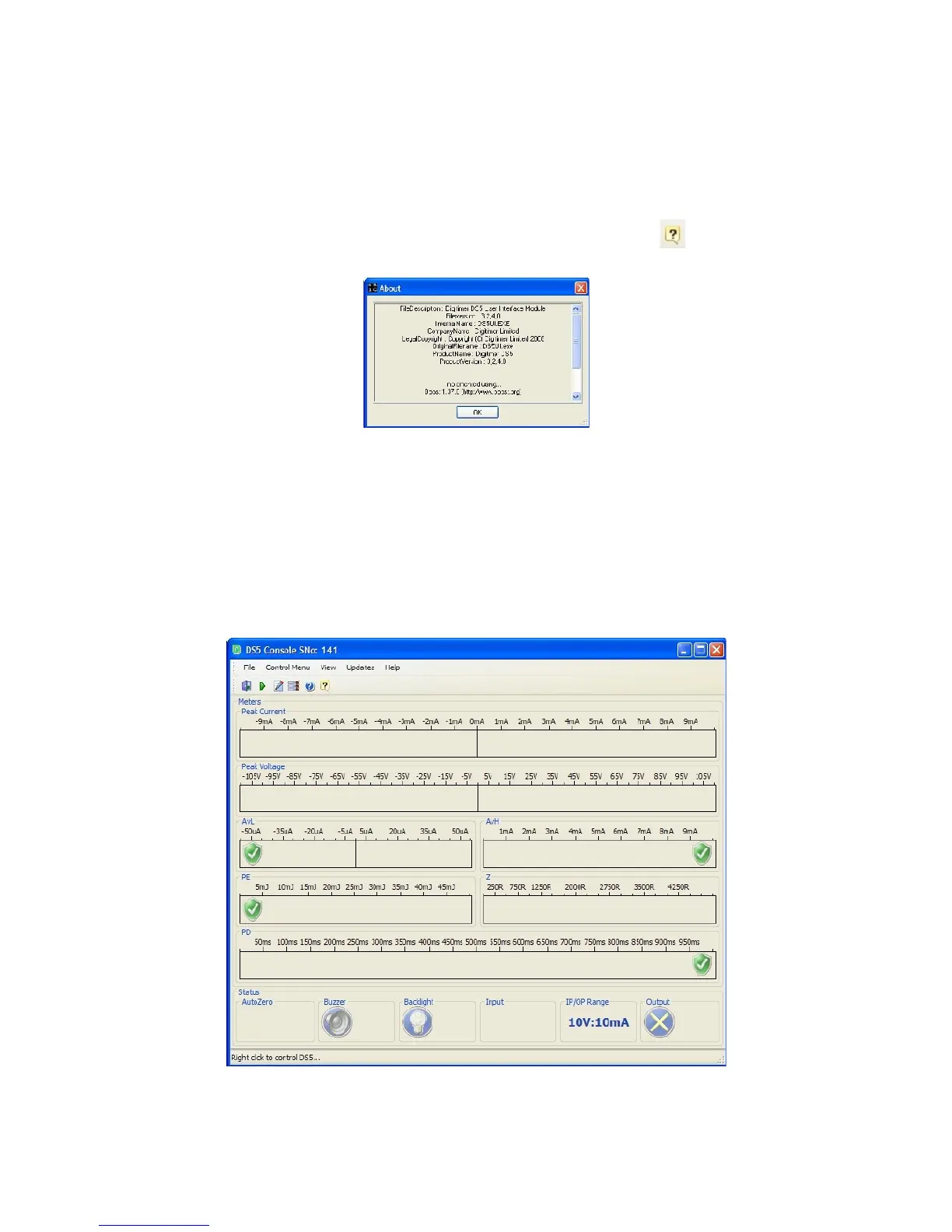

The DS5 Console provides the operator with the virtual front panel of the DS5 and is divided into three

areas. At the top of the window is a Menu and Toolbar which provide the operator access to relevant

settings and actions. Under the Toolbar, is the Meters section, consisting of bar graphs and meters similar

to those present on the front panel of the DS5. At the bottom of the window is a row of Status Indicator

Icons. Double clicking on these can in some cases alter the settings of the stimulator. These icons can

also change to reflect the status of the DS5. Right clicking within the Console window will display the

Control Menu which is used to load or alter previously saved DS5 settings profiles.
