DS5 Isolated Bipolar Constant Current Stimulator DS5 Operator's Manual 5.0

the output has been automatically disabled by a pre-set output limit being exceeded.

6. Amber Warning LED - Illuminated when the output has been disabled either by a fault condition

or due to a pre-set output limit being exceeded (cleared by a power OFF/ON and full test cycle).

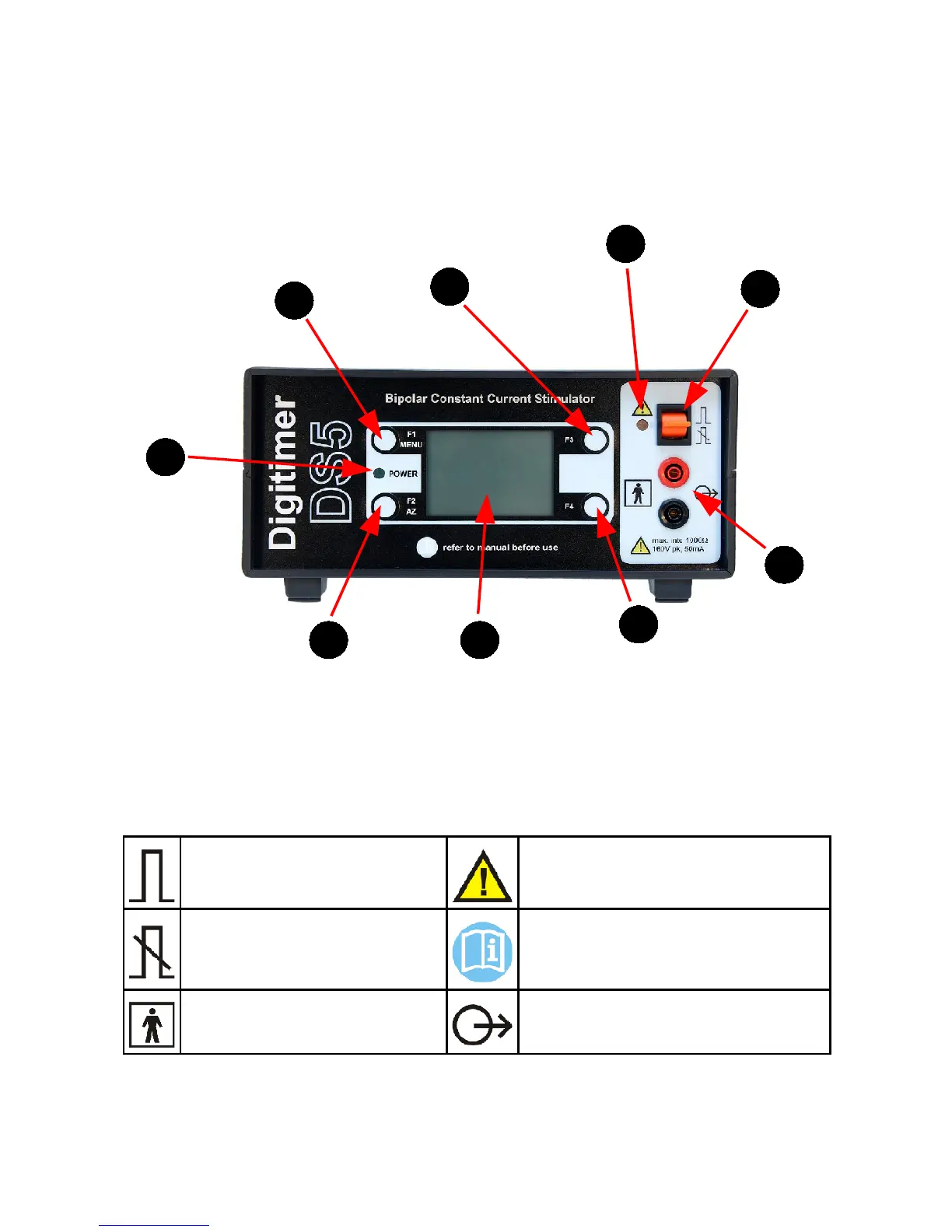

Figure 2.1 Front Panel Components of the DS5 Stimulator

Front Panel Symbols

The front panel of the DS5 has several symbols which the operator should become familiar with before

starting to use the stimulator.

Upward deflection of the toggle switch

enables the output.

Attention, consult accompanying documents.

Downward deflection of the toggle switch

disables the output.

Consult operator documentation (this manual)

before use of this equipment.

Type BF applied part. Output (stimulus connection to patient).

Table 2.1 DS5 Front Panel Symbols
