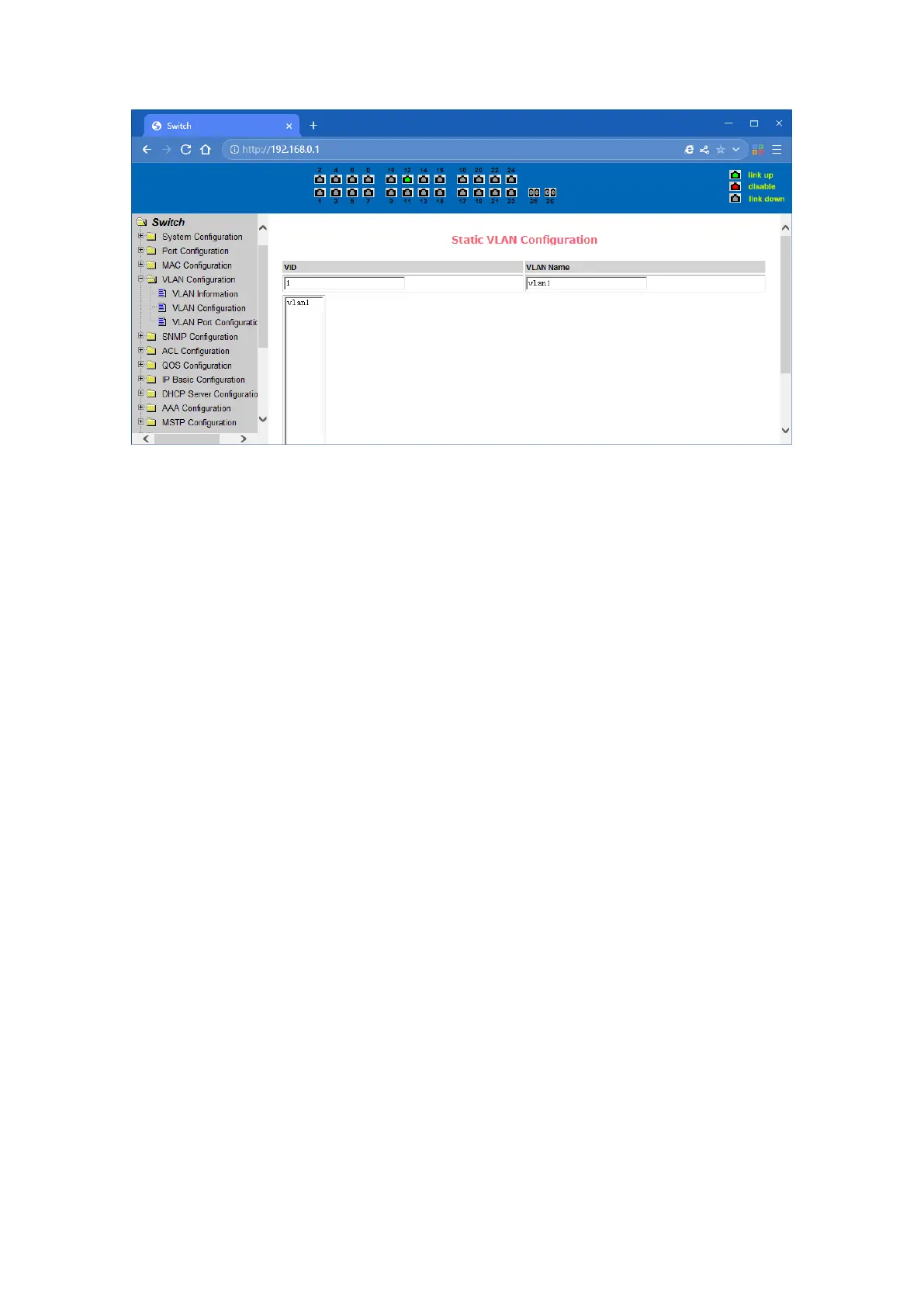

Static VLAN configuration page
（3）VLAN port configuration page
This page is used to configure the VLAN port configuration and display results. This page mainly
consists of eight parts: port, mode, all current VLAN, port-owned VLAN, key "default VLAN =>","
tagged =>"," untagged =>" and "non-members" =. "
Port is defined a designated port that will configure the VLAN
Mode Access designated the VLAN mode as the ACCESS mode, under this mode, the port default
VLAN is the untagged member of VLAN1, the port's default VLAN is 1. Hybrid specified port VLAN
mode HYBRID model, in this mode, the port default VLAN is the untagged member of VLAN1, the
port's default VLAN is 1. Trunk specified port VLAN mode is TRUNK mode, in which the port VLAN
mode, the default is VLAN1 a tagged member of the port's default VLAN is 1.
All current VLAN that has been created VLAN, also it’s can be configured VLAN, the user from the
list select VLAN, can be multiple-choice.
VLAN Port-owned shows the results of VLAN port configuration, [p] indicates that the port VLAN is
the default VLAN, [t] that the port is a VLAN tag members, [u] that the port is not tagged VLAN
member. When you remove VLAN, the user from the list, select the VLAN, can be multiple-choice.
Button "default VLAN =>" to configure port the default VLAN, selected one VLAN from the current
all the VLAN.
Button "tagged =>" Configured port is designated as a tagged member of VLAN, selected one or
more VLAN from the current all VLAN.
Button "untagged =>" Configure VLAN port is a designated member of the untagged, selected one
or more VLAN from the current all VLAN.
Button "non-members <= to delete the port from the specified one or more of the VLAN ,no
longer a member of the VLAN, from the port affiliated VLAN to selected one or more VLAN.
