About guide
This guide provides instructions to install the Switch.
Note: The model you have purchased may appear slightly different from the illustrations shown in
the document. Refer to the Product Instruction and Technical Specification sections for detailed
information about your switch, its components, network connections, and technical specifications.
Terminology
Note: indicates important information that helps a better use of the device.
Warning: indicates potential property damage or personal injury.
Copyright and statement
Without the express written permission of the company, no unit or individual is allowed to imitate,
Copy, transcribe or translate part or all of the contents of this book without authorization.
The pictures and data shown in this guide are for reference only, subject to change without notice.
1. Product’s introduction
Thanks for purchasing the switch products.
This is a Gigabit Full Managed POE Switch. It provides 24 10/100/1000Mbps Auto-Negotiation RJ45
POE ports and 2 Gigabit SFP Ports. It supports the port's full line speed forwarding to ensure the
stable transmission of data. The machine can be used as a small local core switch or a mall and
medium-sized LAN switch, and can also be used as an access switch for large LAN. It can be widely
used in monitoring, wireless, Internet cafe and other fields.
This product is a Gigabit network management type PoE Switch. Which can satisfy the full speed
forwarding of ports. The machine uses 19 "1U the standard chassis can be used on the desktop or
on the rack. Excellent performance can help you widely use in wireless, monitoring and other
fields.

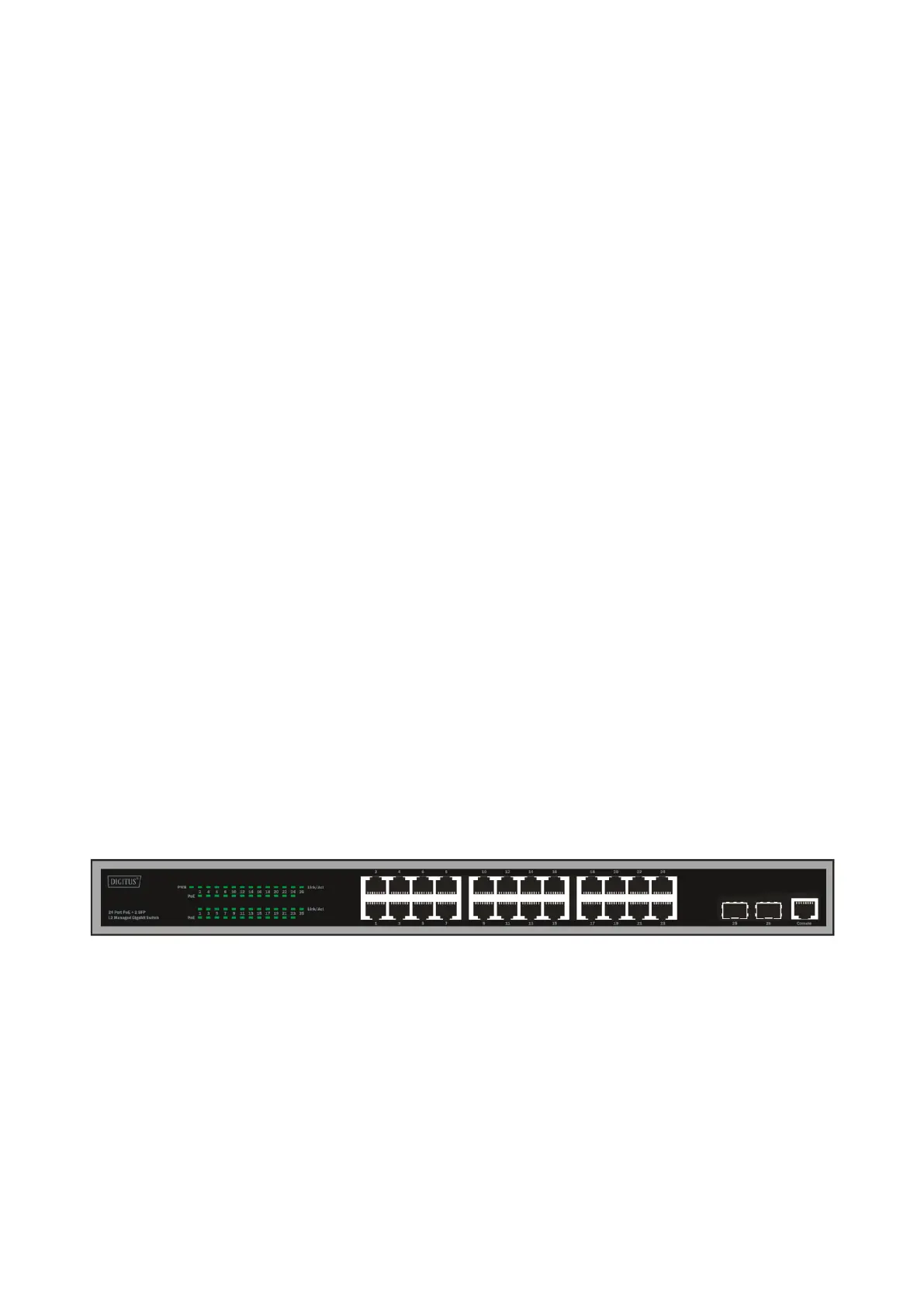

1.1. Front panel
PWR LED：The Power LED lights up when the Switch is connected to a power source.
Link/Act LED: The Link/Act LED flashes which indicates a network link through the corresponding
port. Blinking indicates that the Switch is either sending or receiving data to the port.
PoE LED:
Green: Indicates the PoE powered device (PD) is connected and the port supplies power
successfully.
Light off: Indicates no powered device (PD) connected.
