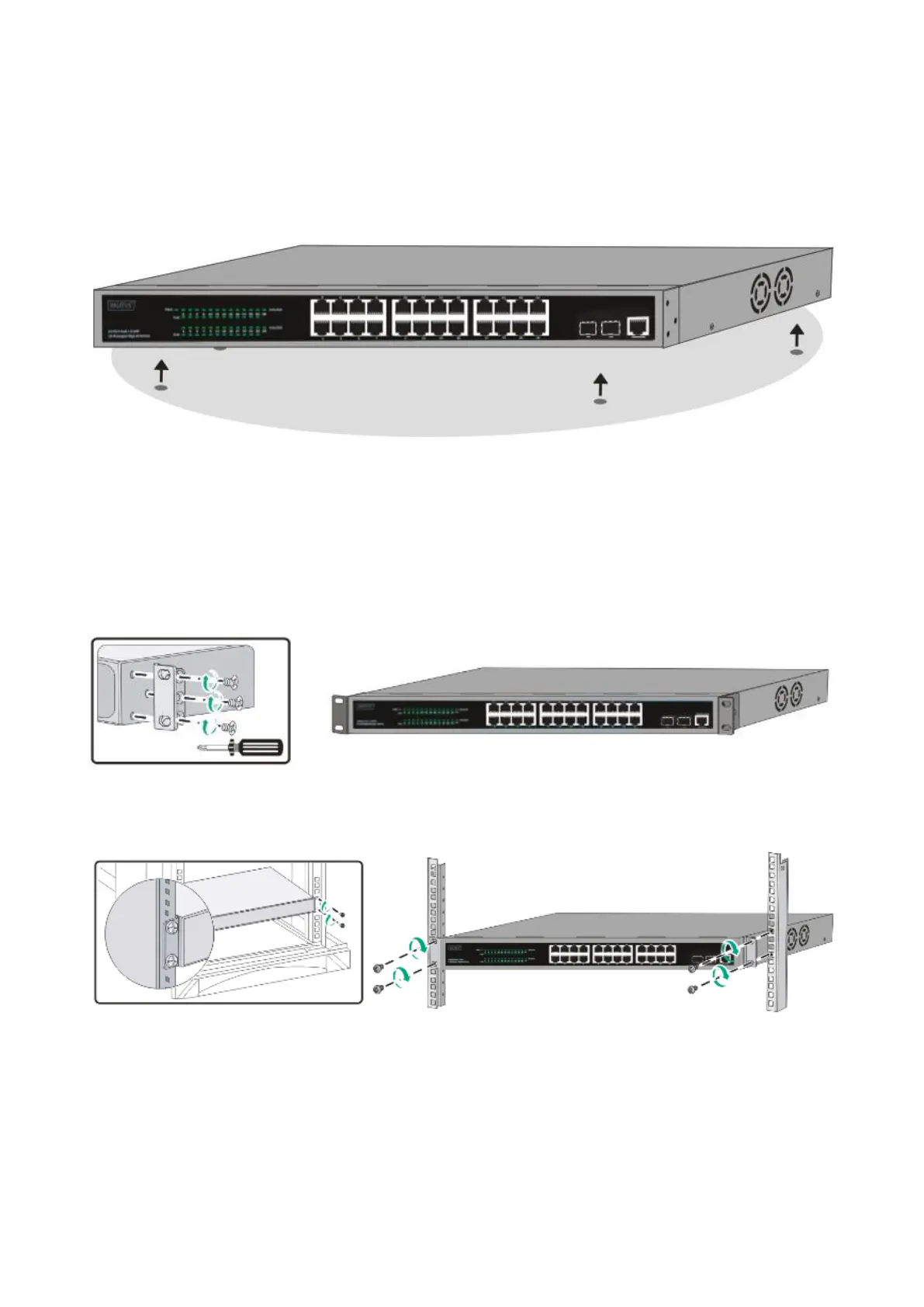

2.2.1. Desktop or Shelf Installation
When installing the switch on a desktop or shelf, the rubber feet included with the device must be
attached on the bottom at each corner of the device's base. Allow enough ventilation space
between the device and the objects around it.
2.2.2. Rack Installation
The switch can be mounted in an EIA standard size 19-inch rack, which can be placed in a wiring
closet with other equipment. To install, attach the mounting brackets to the switch's side panels
(one on each side) and secure them with the screws provided (please note that these brackets are
not designed for palm size switches).
Then, use the screws provided with the equipment rack to mount the switch in the rack.
