4.4. Port Configuration
（1）Port configuration / port -display page
It is the port configuration / port -display page. Users can enable or disable the port to the page,
set the port speed, or view all ports of the basic information.
To set a specific port, users need to select the appropriate port name on port drop-down menu.
The default port status is up, can select the drop-down menu -down to disable the port. Users can
also choose to set the speed of the drop-down menu to set the speed of the port, such as the
mandatory half-duplex port 10M (half-10) and so on. On this page the user can view all ports other
basic information.

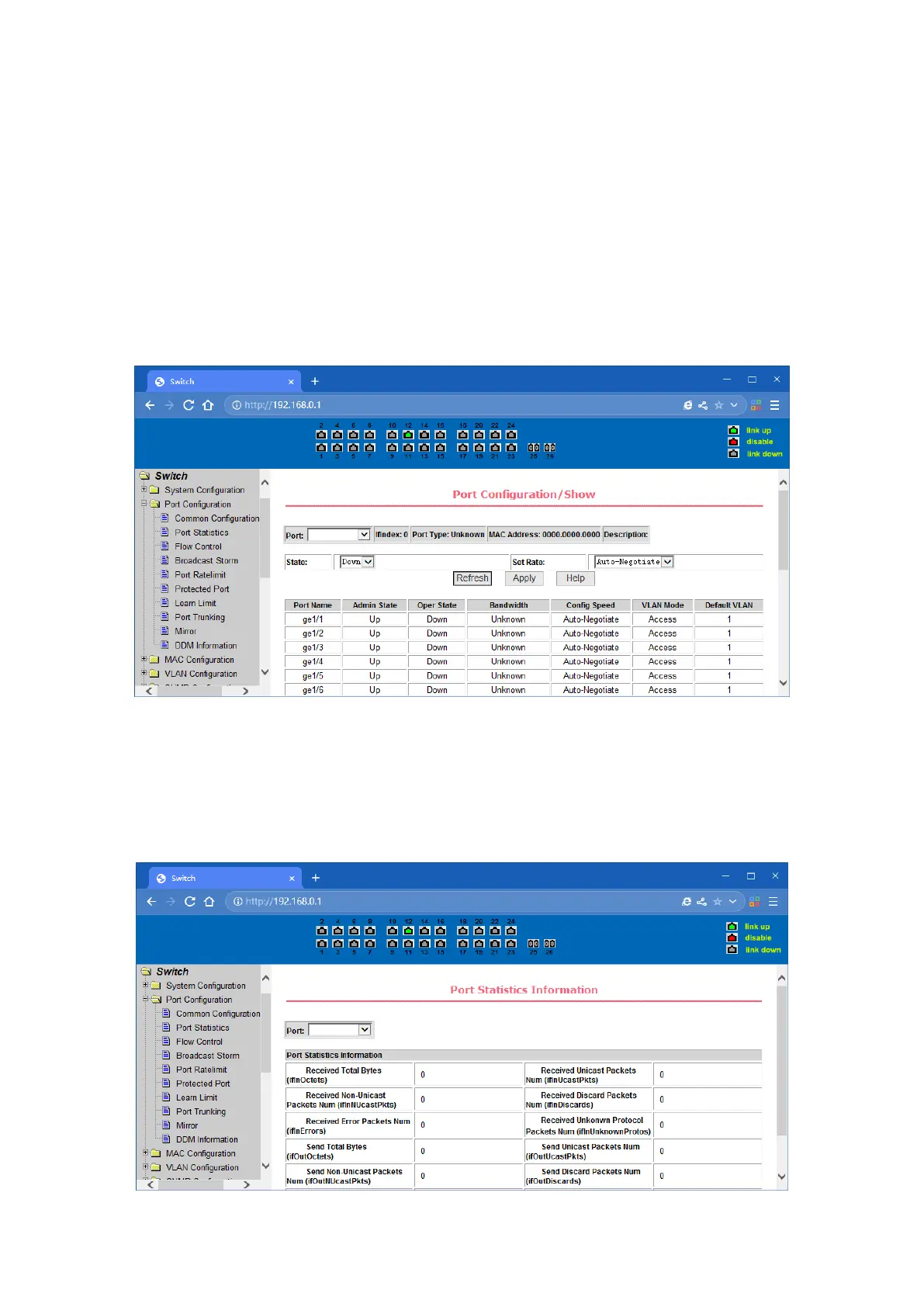

Port configuration and port - display page
（2）Port Statistics Page
To view a particular port, users need to select the appropriate port name in the port drop-down
menu. Users can view the statistics information of send and receive packets on this page.
Port Statistics Page
