2.4. Console Port Interface
The smart switch has a monitor port (Console port). Rate 9600bps, standard RJ45 plug.

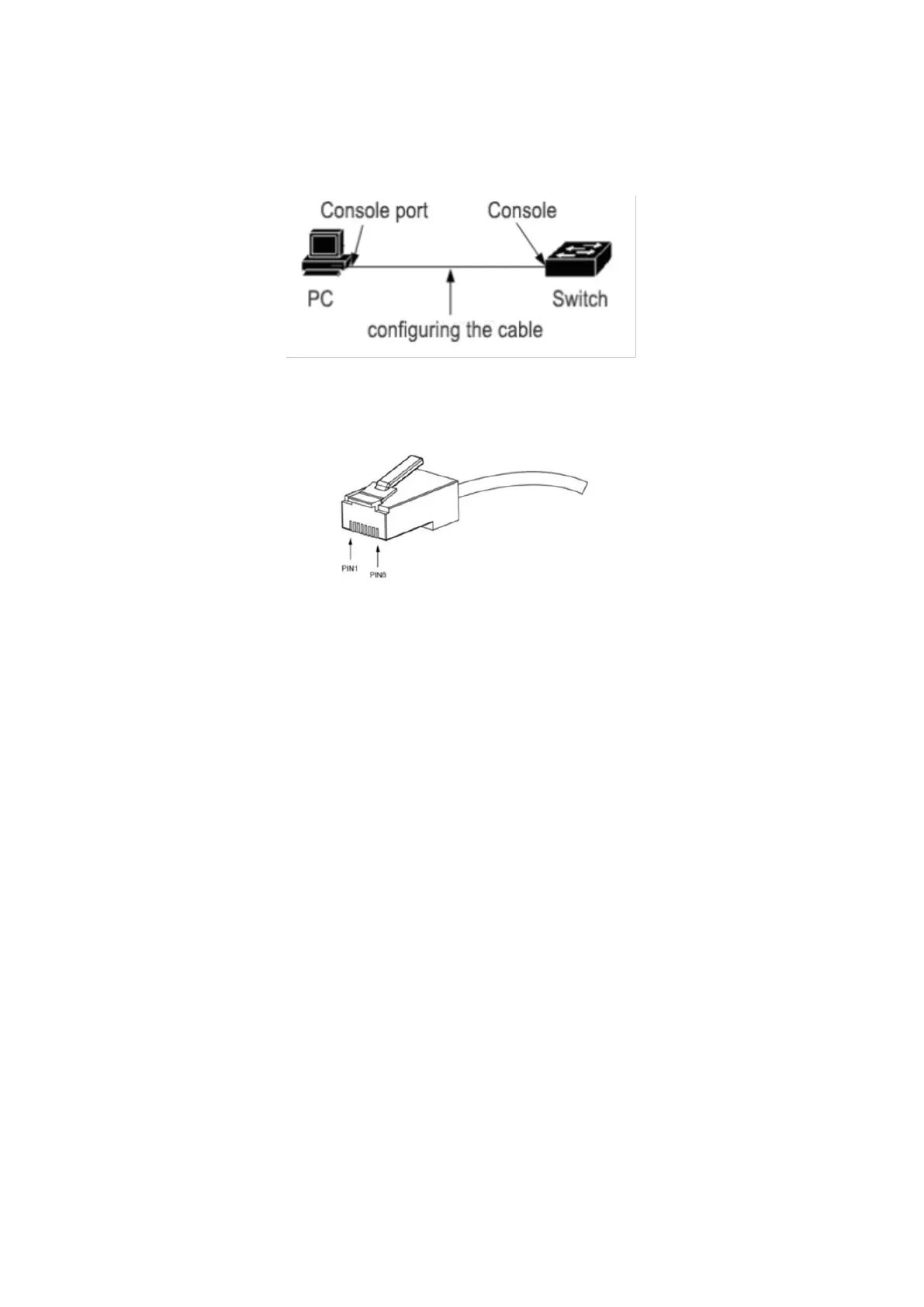

Use a dedicated monitoring cable to lead the port to the PC serial port connection, as follows:
The RJ45 connector used by the Console port is shown in the figure below, and the RJ45 plug
corresponds to the RJ45 socket, from left to right numbered from 1 to 8.
This cable is used to connect the console port of the switch to the external monitoring terminal.
One end of the RJ45 eight-pin plug, the other end is a 25-hole plug (DB25) and 9-hole plug (DB9),
RJ45 head into the switch’s console port socket, DB25 and DB9 can be used according to the
requirements of the terminal serial port, the cable internal connection schematic as follows:
RJ45<===>DB9
NC1-------8CTS
NC2-------6DSR
TXD3------2RXD
GND4------5GND
GND5------5GND
RXD6------3TXD
NC7-------4DTR
NC8-------7RTS
