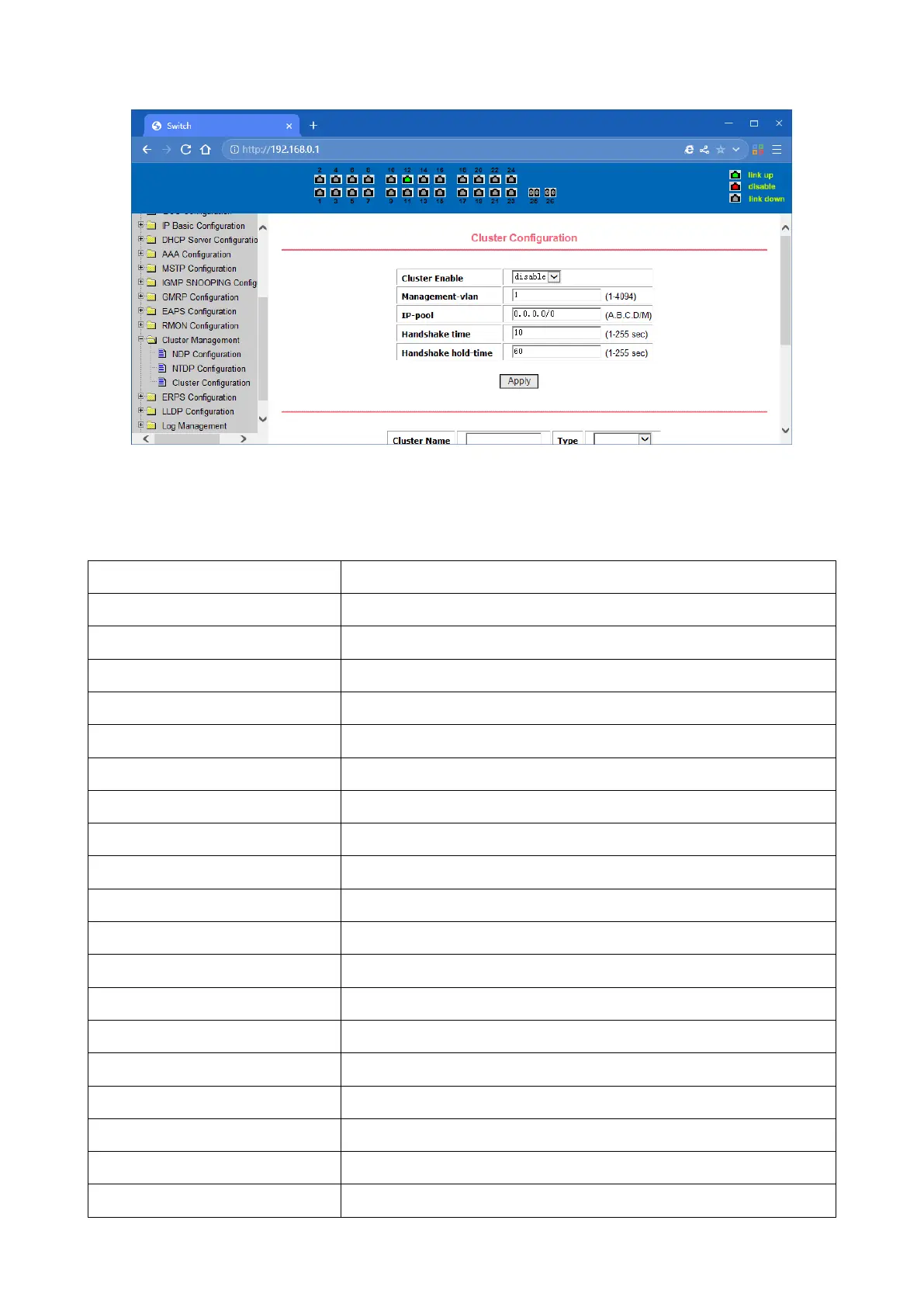

Cluster Configuration Page
4.19. ERPS configuration
（1）ERPS Configuration
This page is use to create, configure or delete ERPS domain and ring.
ERPS Domain
create or delete ERPS domain, domain id range is in 1-8
ERPS Domain Status
Created or not created
ERPS Domain Node Role
interconnection or none-interconnection
ERPS Ring
Ring ID range is in 1-32
ERPS Ring Status
Created or Not Created
Ring Mode
major-ring or sub-ring
Node Mode
rpl-owner-node, rpl-neighbor-node, ring-node
Raps VLAN
Configure or delete Raps VLAN<2-4094>
Traffic VLAN
Traffic VLAN<1-4094>
RPL Port
Specifies the RPL port
RL Port
Specifies the RL port
Revertive Behavior
revertive or non-revertive
Hold-off Time
Hold-off time, <0-10000>, unit: ms, the default is 0
Guard Time
Guard Time, <10-2000>, unit: ms, the default is 500
WTR Time
WTR Time, <1-12>, unit: min, the default is 5
WTB Time
WTB Time, <1-10>, unit: sec, the default is 5
Raps-send Time
Raps-send Time, <1-10>, unit: sec, the default is 5
ERPS Ring Enable
Enable or disable ERPS Ring
Forced Switch RPL and RL Port
Specifies Forced switch RPL and RL port
Manual Switch Port
Specifies Manual Switch Port
