30
When users configure the rules, the source IP address must be in with a mask, the rule can match
the collection of IP addresses. The address mask is use anti-code, if the rule were to match the IP
address range 192.168.0.0 to 192.168.0.255, then the IP address can be
192.168.0.1, and its mask of 0.0.0.255.
When users configure the rules, each rule must have a filter mode: allow or deny.
The user to create a rule in the group, the system will automatically give the rule a rule number,
when to delete a rule in the group 1 rules, other rules remain unchanged, and the system will
automatically give the rule a rule group sort. If the user wants to delete the entire rule set, you can
first select all, then click the delete key.
（2）IP Extended ACL configuration page
The extended IP group is an extension of the standard IP rules. Control the packet forwarding via
source IP, Destination IP, and IP protocol type and service port.

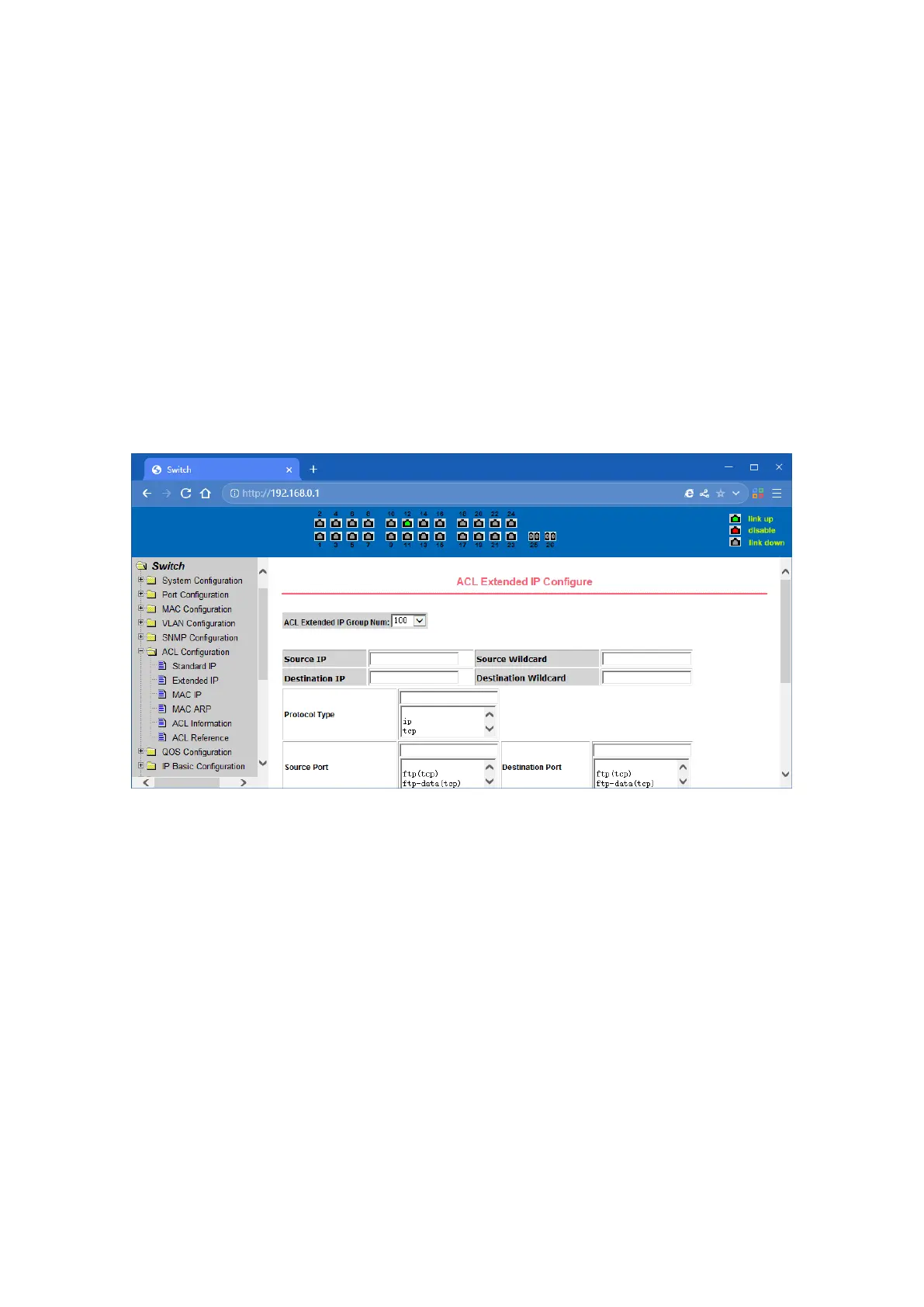

IP Extended ACL configuration page
