OPERATIONAL MANUAL
- 14 - D03S THERMAL TRANSFER OVERPRINTER

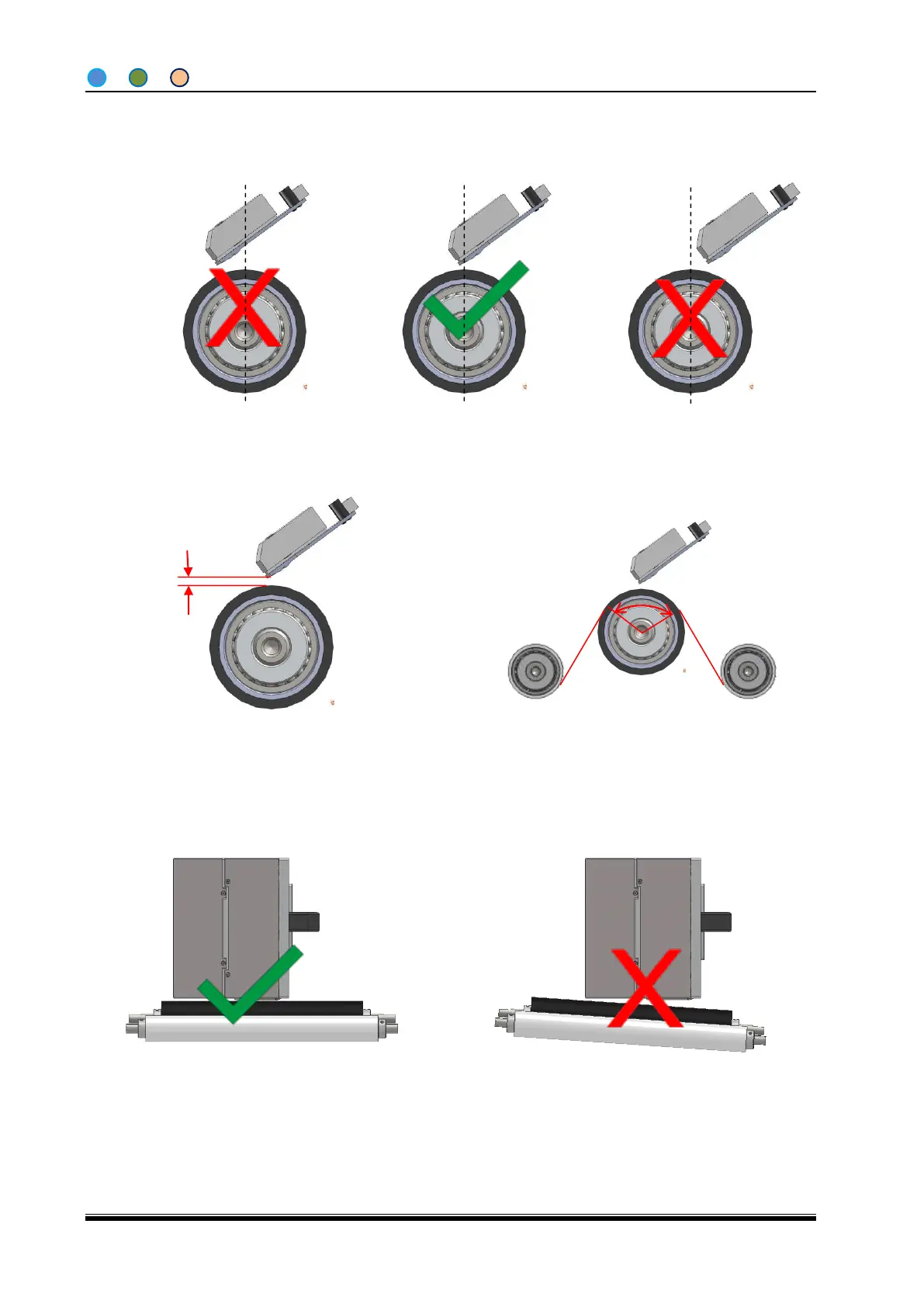

Continuous:
Make sure the Print head is pointing to the center of the Rubber Roller. It can be set by parameter “Vertical”
from the Controller.
The gap between Print head and Rubber Roller should be within 1.5~2.5mm, and the wrapping angle is no
more than 120°.
Print head is paralleled to the Rubber Roller.
1.5-2.5mm
＜120°
