Dikai DK-D03S - PRINTER CONNECTORS; ENCODER CONNECTOR

OPERATIONAL MANUAL
D03S THERMAL TRANSFER OVERPRINTER - 17 -
3.7 PRINTER CONNECTORS
Connectors on Printer
1. Encoder Connector
For continuous printers, an encoder is required to monitor the speed of the packaging film.
D03S requires the encoder to provide:
 Operating at 24V DC.
 500 pulses per rev.

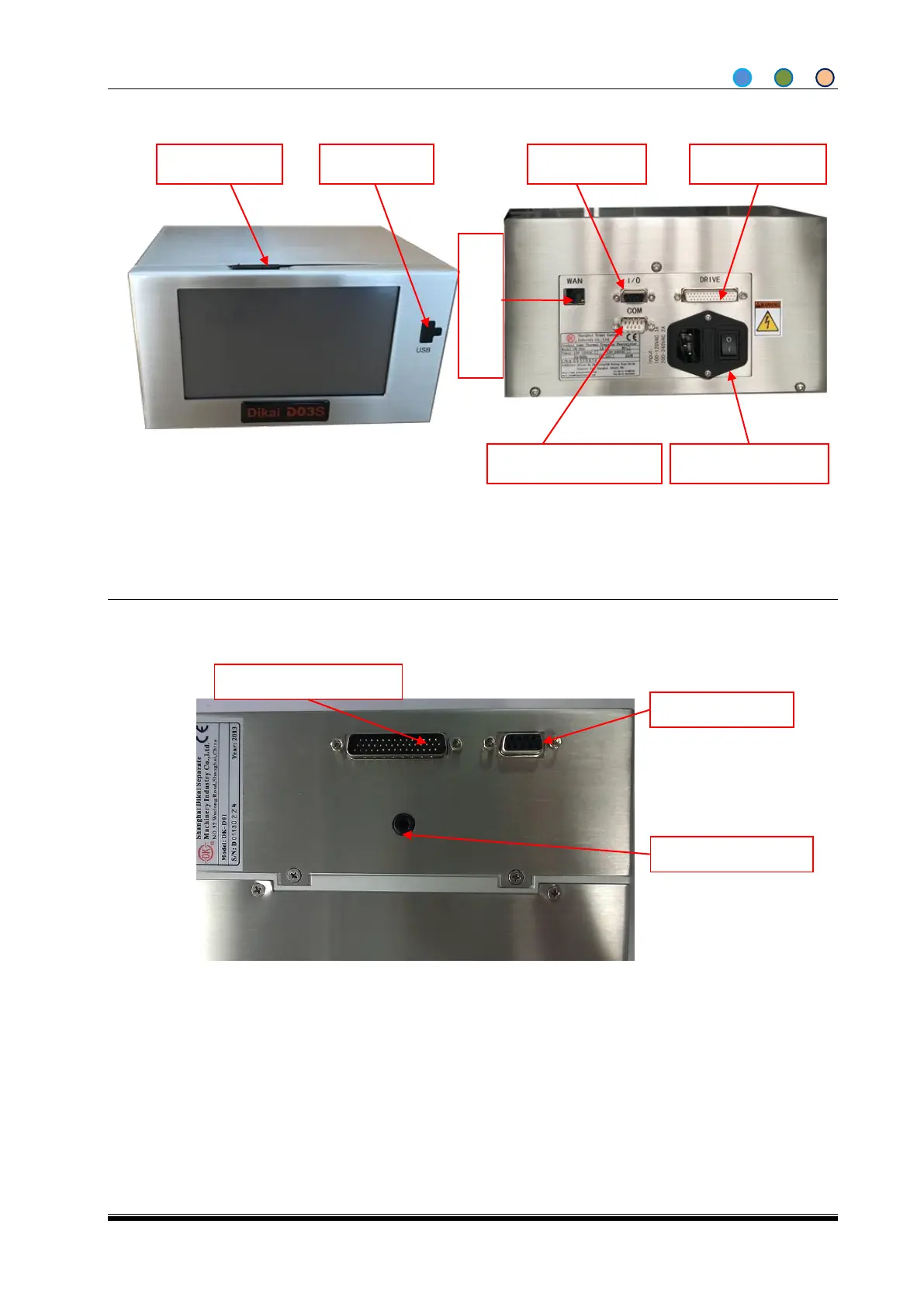

1-USB
Diagraph 2 Connectors on Controller
5-I/O
2-Drive Cable
3-Switch
4-Communication
6-SD Card
7—Ethernet
Diagraph 5 Connectors on Printer
2-Air Inlet
1-Encoder
3-Drive Cable
