Dikai DK-D03S - PRINTER UNIT ASSEMBLY

Operation Manual
D0 3 S Thermal Transfer Overprinter
- 85 -

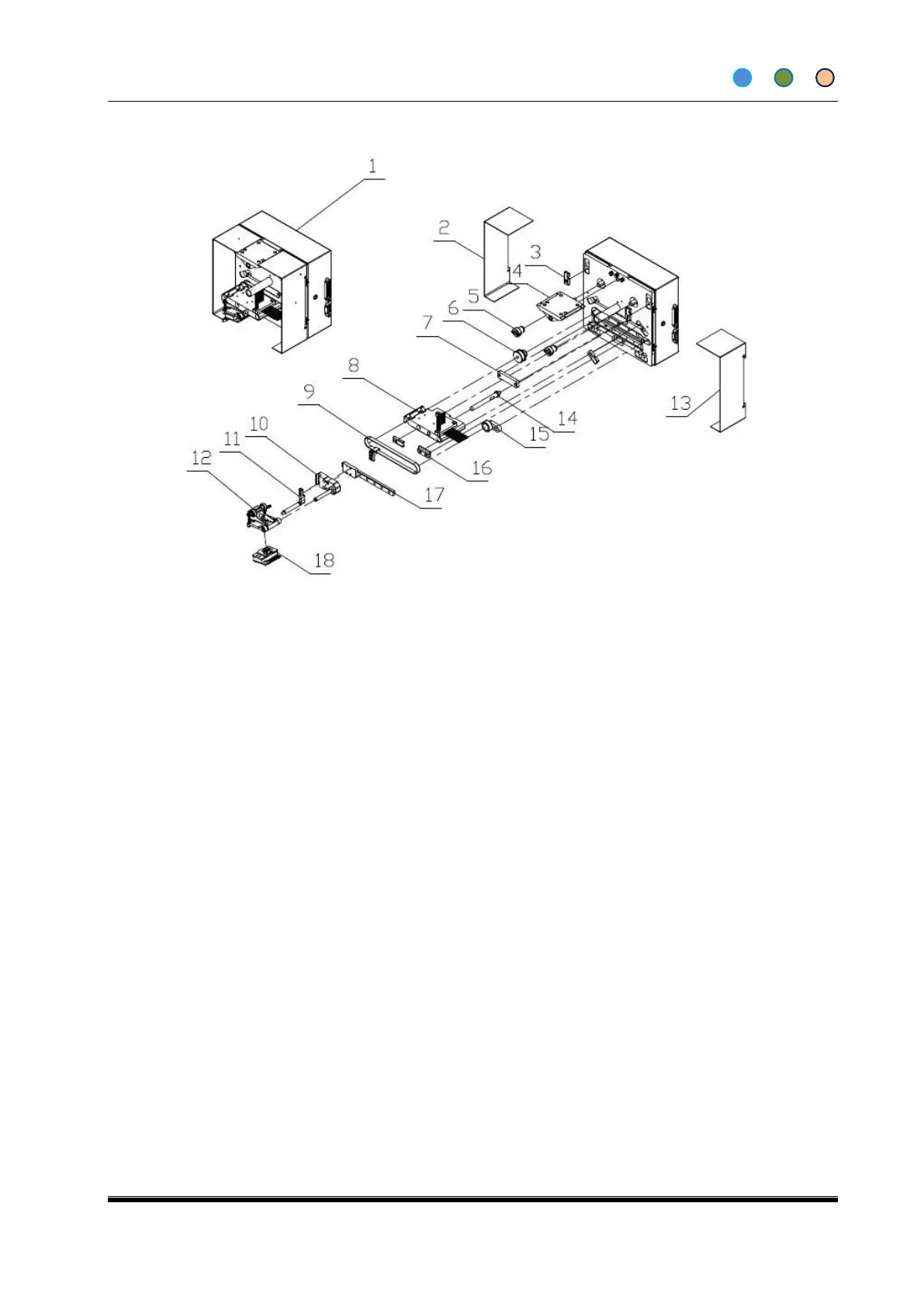

7.3.2 Printer Unit
Item No.
Description
Part No.
Quantity
1
Printer Unit ---Left hand
C03S02000LH
1
Printer Unit ---Right hand
C03S02000RH
1
2
Left Front Cover
Y0302043
1
3
Hall Element
C9900326
3
4
Mounting Block Assembly
C0102023X
1
5
Transmission Shaft
Y0302026
2
6
Driving Capstan
Y0102025
1
7
Printhead Cable Fixer
Y0302048
1
8
Support Assembly
Y0302074
1
9
Belt
Y9900323
1
10
Shaft Mounting Block
C0302051
1
11
Peel Roller Assembly
C0302013
1
12
Carriage Cylinder Assembly
C0102010
1
13
Right Front Cover
Y0302042
1
14
Support Shaft
Y0102031
1
15
Driven Capstan
C0302019
1
16
Pipe Fixer
Y0302024
1
17
Guide Rail
Y9900324
1
18
Printhead Module Assembly
C0102006
1
