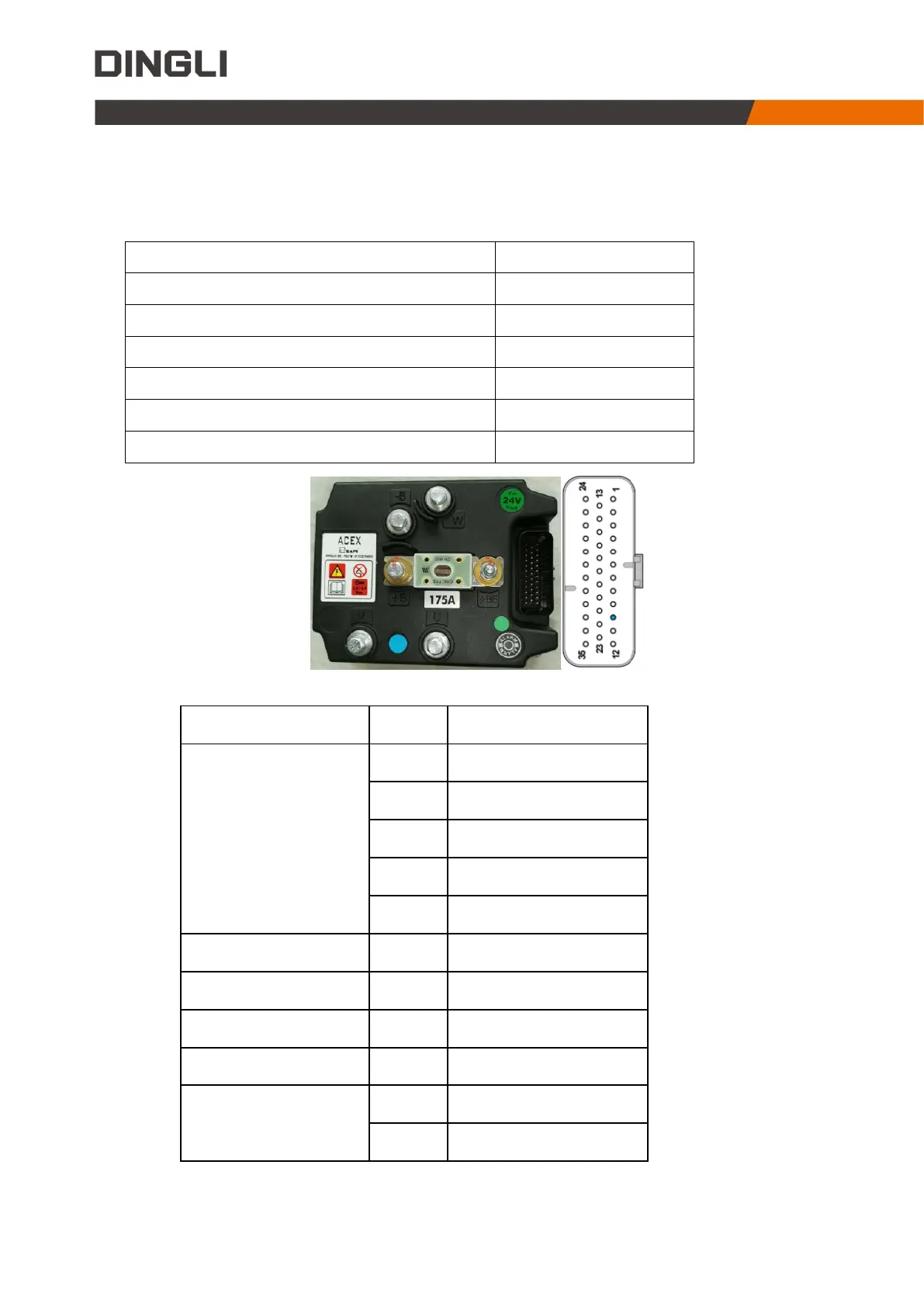

2.2.3 ZAPI controller
2.2.3.1 Pump-motor controller
Technical specifications
Control mode
speed or torque control
Operating frequency of the AC inverter
8 kHz
Ambient operating temperature range
-40 ℃ ~ 40 ℃
Ambient storage temperature range
-40 ℃ ~ 85 ℃
Maximum inverter temperature (at full power)
85 ℃
Connector
35-pins Ampseal
Package environmental rating
IP65
Pin definition
Pump Motor controller
Pin
Function description
Pump motor
A14
Encoder power +
A5
Encoder power -
A13
Encoder signal 1
A25
Encoder signal 2
A22
Temperature switch
A6
Power 24V+
A10
Power 24V+
A12
Main contactor -
A3
Power 24V+
Communication
A28
CAN H
A27
CAN L
