29
2.3 Platform Controller

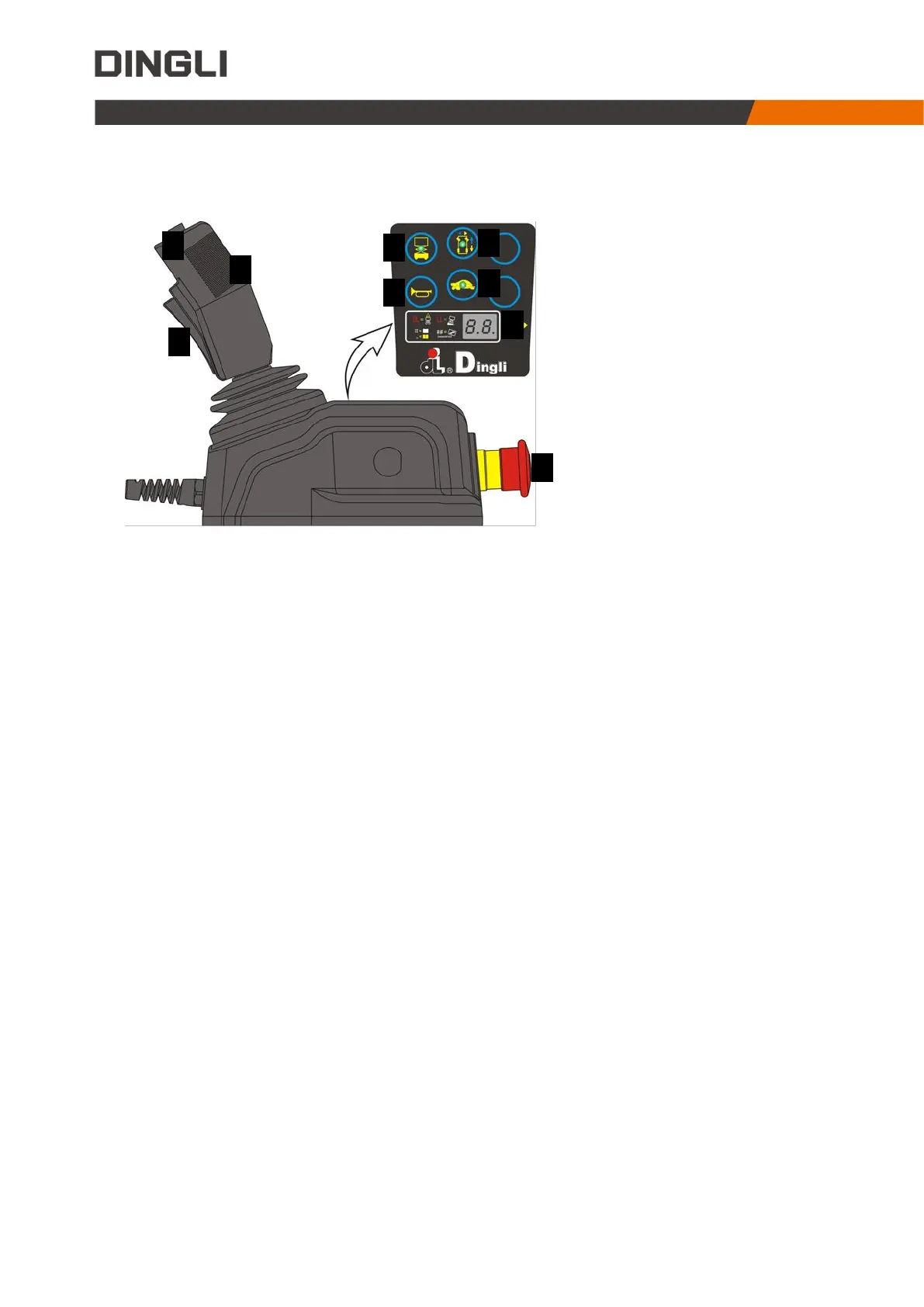

2.3.1 Introduction of PCU
1 Function enable switch
Press and hold the function enable switch to enable the drive/lift function.
2 Thumb rocker switch
Press the thumb rocker switch in either direction to activate steer function.
3 Proportional control handle
Lift function: Press and hold the function enable switch to enable the lift function on the platform
control handle. Move the control handle in the direction indicated by the blue arrow and the platform will
raise. Move the control handle in the direction indicated by the yellow arrow and the platform will lower.
The descent alarm should sound while the platform is lowering.
Drive function: Press and hold the function enable switch to enable the drive function on the
platform control handle. Move the control handle in the direction indicated by the blue arrow on the
control panel and the machine will move in the direction that the blue arrow points. Move the control
handle in the direction indicated by the yellow arrow on the control panel and the machine will move in
the direction that the yellow arrow points.
4 Horn Button
Push the horn button and the horn will sound. Release the horn button and the horn will stop.
5 Lift function select button
Press this button to activate the lift function.
6 Drive function select button
Press this button to activate the drive function.
7 Drive speed button
Press this button to activate the slow or fast drive function.
8 LED readout screen
Diagnostic readout and battery charge indicator.
9 Red Emergency Stop button
Push in the red Emergency Stop button to the off position to stop all functions. Pull out the red
Emergency Stop button to the on position to operate the machine.
