2.4 Sensors & Switches

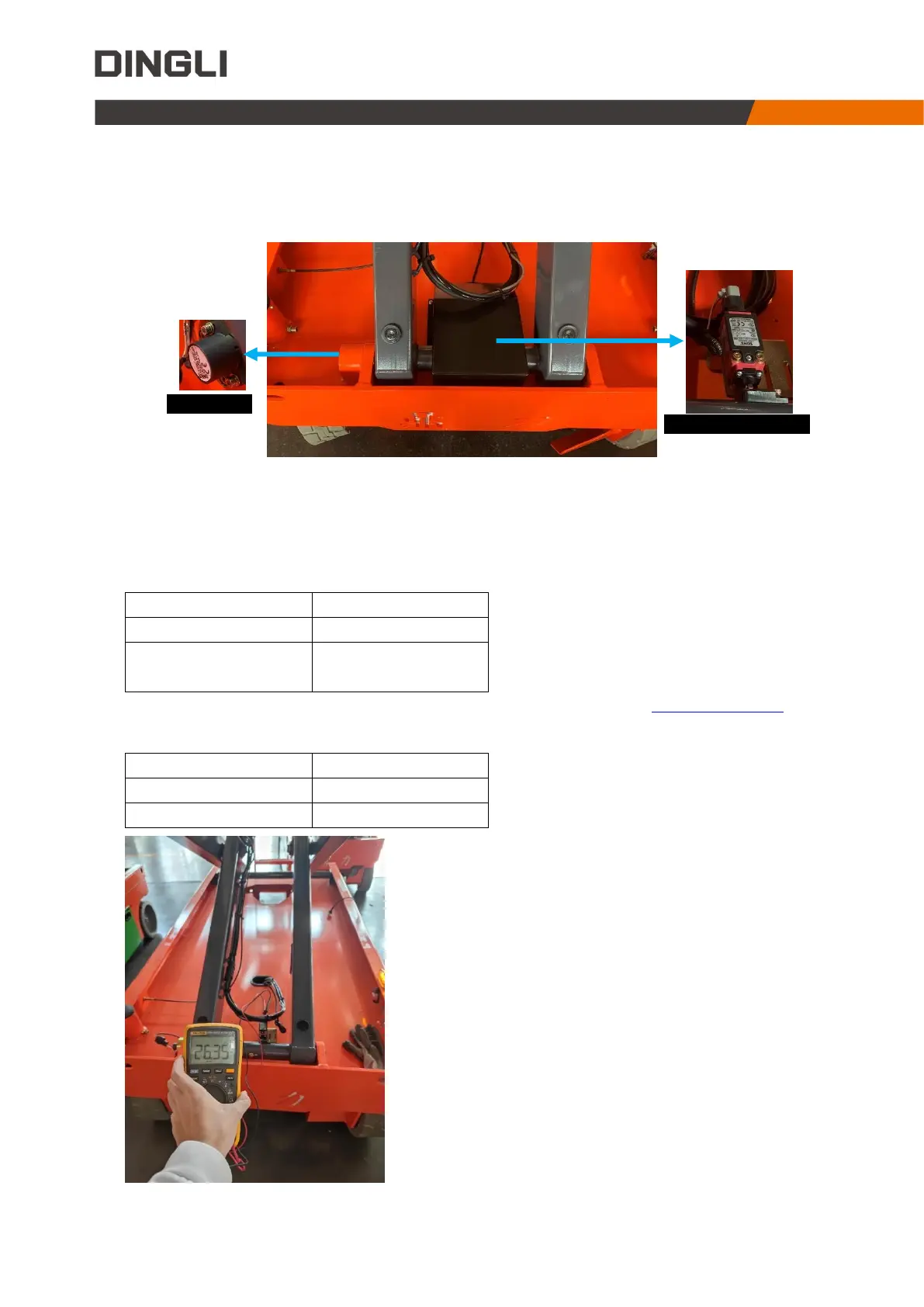

2.4.1 Angle sensor & Lift down limit switch
Angle sensor can detect the height of the machine platform in real time, so that the ECU can
control the upper and lower limit of the machine.
Lift down limit switch can accurately detect the anti-pinch height of the machine, so that the ECU
can accurately stop the machine from descending at this height.
Angle sensor
Position
signal voltage
Stowed
4.3V
Raised
Varies according to
the machine height
For detailed data information of the angle sensor, please refer to chapter 5.1 Data detection.
Lift down limit switch
Position
signal voltage
Stowed
0 V
Raised
24 V
Angle sensor
Lift down limit switch
