Dionex UltiMate 3000 - Manual Injection (Basic Configuration)

UltiMate 3000 Nano and Cap- System Installation and Application
16
3.1 Manual Injection (Basic Configuration)
For this application, the sample is injected manually and directed to the separation column via
the switching valve in the flow manager.
Dionex recommends that you stack the system modules as shown below:

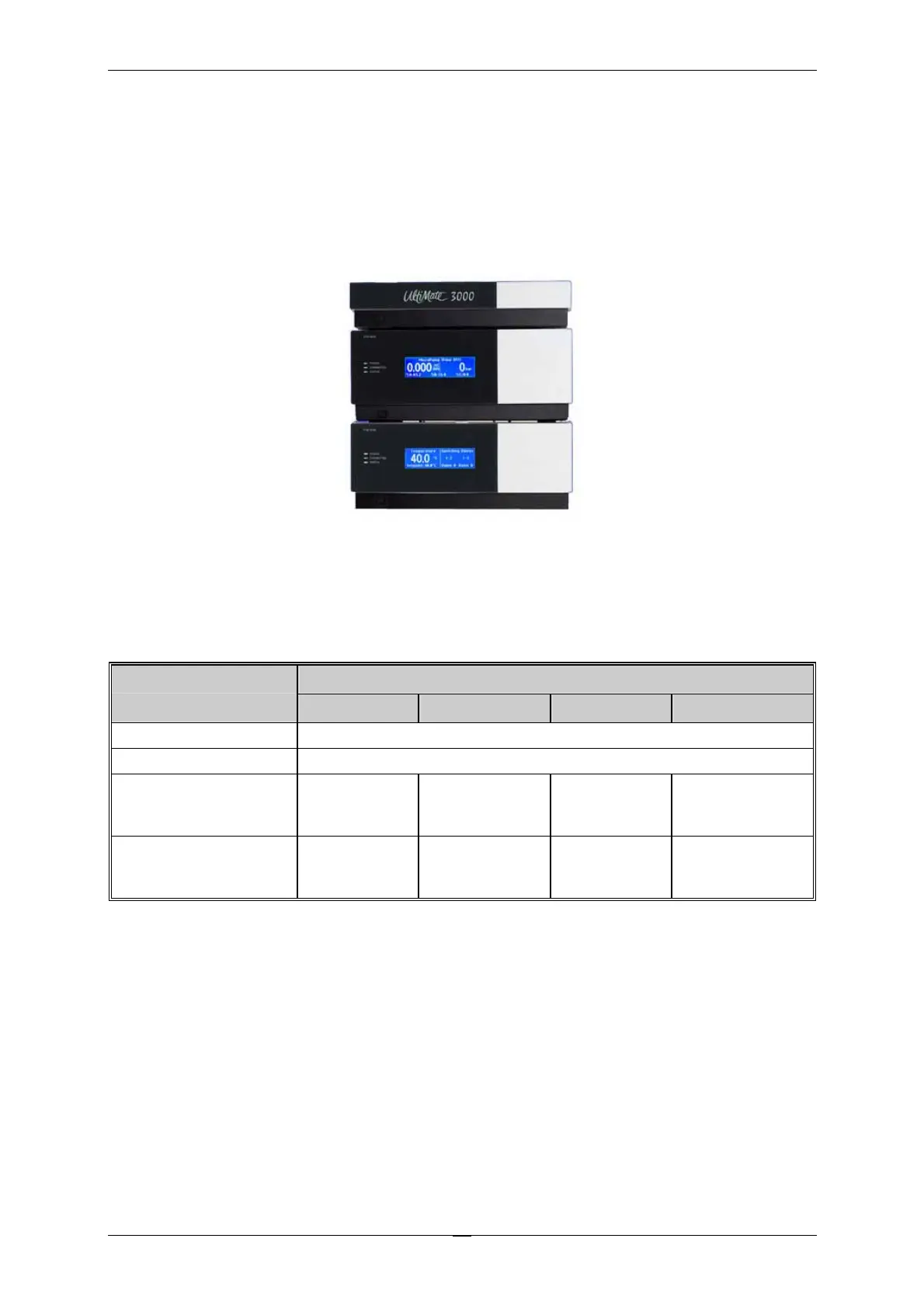

Fig. 5: Module arrangement for manual injection
The system includes the modules listed in the table below. In addition, the appropriate Basic
Configuration Kit (→ section 8.1, page 64) is required.
Part No. System Module
Nano HPLC Capillary HPLC Micro HPLC Monolith. HPLC
SR-3000 5035.9200
LPG-3400 5035.0045 (standard) or 5037.0055 (biocompatible)
FLM-3300
Standard
Biocompatible
5720.0030
5021.0030
5720.0035
5021.0035
5720.0038
5021.0038
5720.0035
5021.0035
Basic Configuration Kit
Standard
Biocompatible
6720.0065
6721.0065
6720.0082
6721.0082
6720.0083
6721.0083
6720.0084
6721.0084
SR-3000 Solven
t
Rac
k
LPG-3400 Pump
FLM-3300 Flow Manager
