Directed Electronics PYTHON 1090 - Locations for the Status LED

© 2006 Directed Electronics—all rights reserved
10

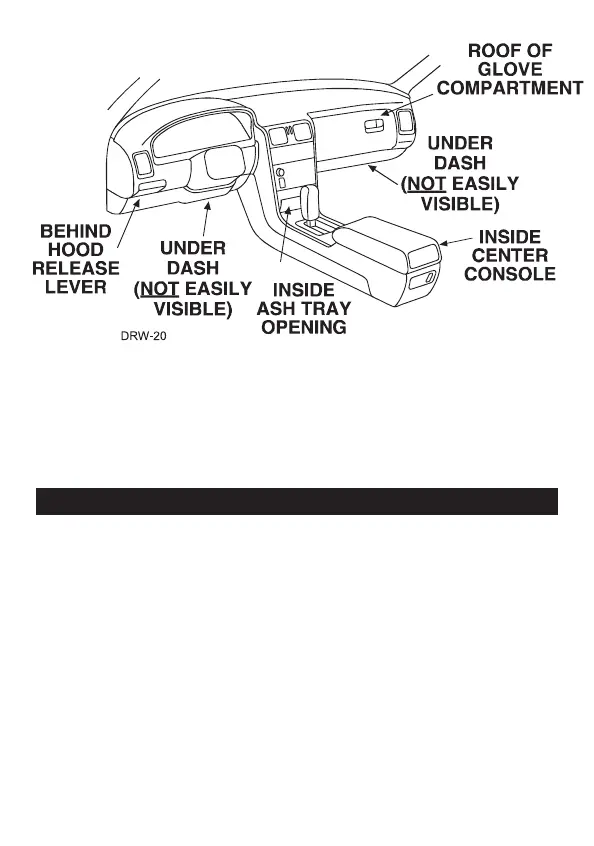

This system has Remote Valet. The user can enter and exit Valet Mode without having to reach the Valet/
Program switch. This feature was introduced so that switch location was less critical in day-to-day use.
As long as the Valet/Program switch can be reached to disarm without a remote control, easy access is not
important.
locations for the status LED
Things to remember when positioning the Status LED:
■ It should be visible from both sides and the rear of the vehicle, if possible.
■ It needs at least
1
/2-inch clearance to the rear.
■ It is easiest to remove a small panel, such as a switch blank or a dash bezel, before drilling a
9
/32-inch
hole.
■ Use quick-disconnects near the LED wires if the panel is removable. This lets mechanics or other installers
remove the panel without cutting the wires.
