BLUE (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8 seconds
will trigger full alarm sequence and will also report Zone Two.
RED and BLACK: RED is (+)12V constant, BLACK is (-) ground
Do not use these for anything besides the plug-in shock sensor.
tach learning

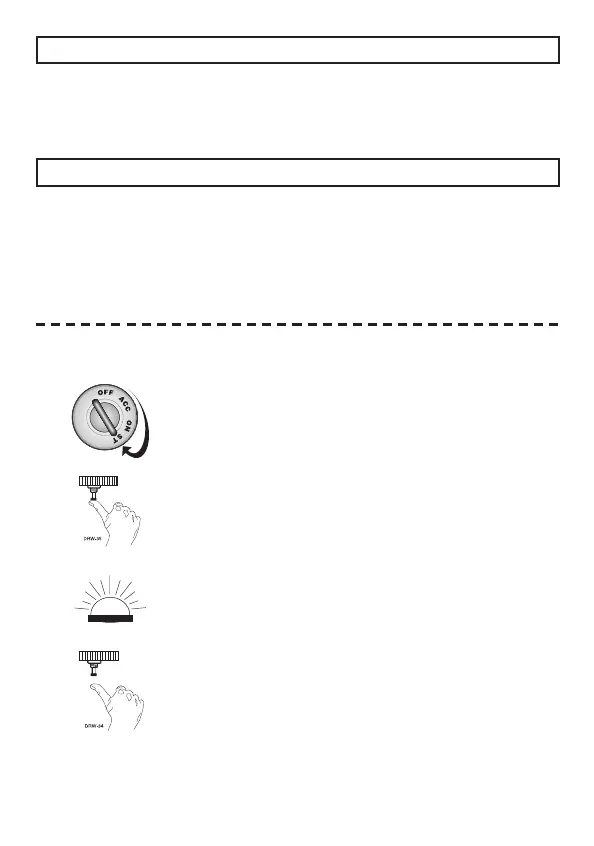

To learn the tach signal:
DRW-96
1. Start the vehicle with the key.
2. Within 5 seconds, press and HOLD the Valet/Program switch.
3. The LED will light constant when the tach signal is learned.
4. Release the Valet/Program switch.
