38
programmer interface, 3-pin black plug
The black 3 pin port is provided for programming the unit using the Bitwriter (p/n 998T). When using the
Bitwriter, it is possible to configure any and all of the programmable functions as well as lock the Remote
Control and System Features Learn Routines so that unauthorized users cannot change the configuration or
program remote controls to the unit.
When the learn routines have previously been programmed using the Bitwriter, they may have
been locked. Before proceeding with reprogramming the learn routines, they must be unlocked
with the Bitwriter - this cannot be done manually with the Valet switch.
shock sensor harness, 4-pin connector
GREEN (-) multiplex input, zone 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while inputs longer than 0.8 seconds
will trigger full alarm sequence and report Zone Four. If installing an optional Directed Electronics dual stage
sensor, connect to the green wire as shown below. The diagram below eliminates the need for diodes to
isolate the sensors.

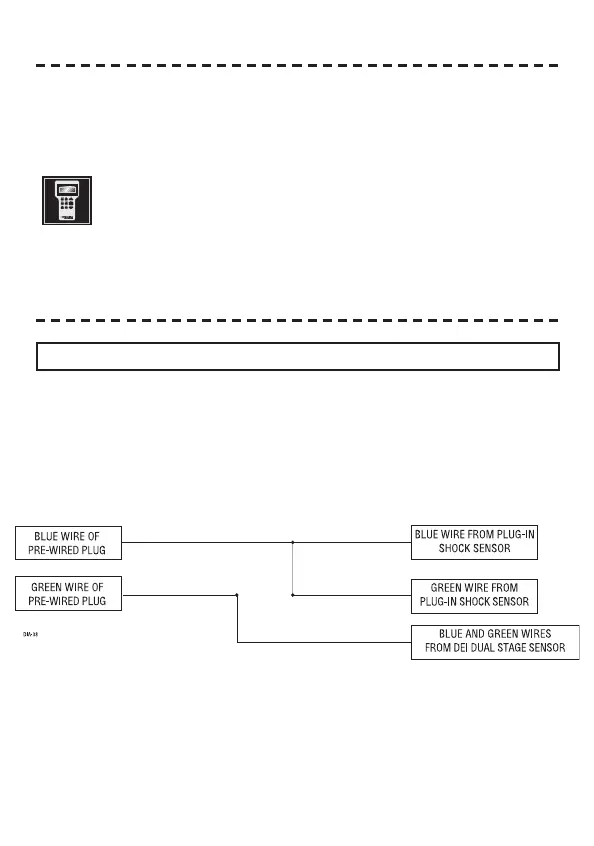

Diagram for adding optional Directed Electronics dual stage sensor to green wire (Zone 4):
