Directed Electronics PYTHON 1090 - Remote Control Diagram

45

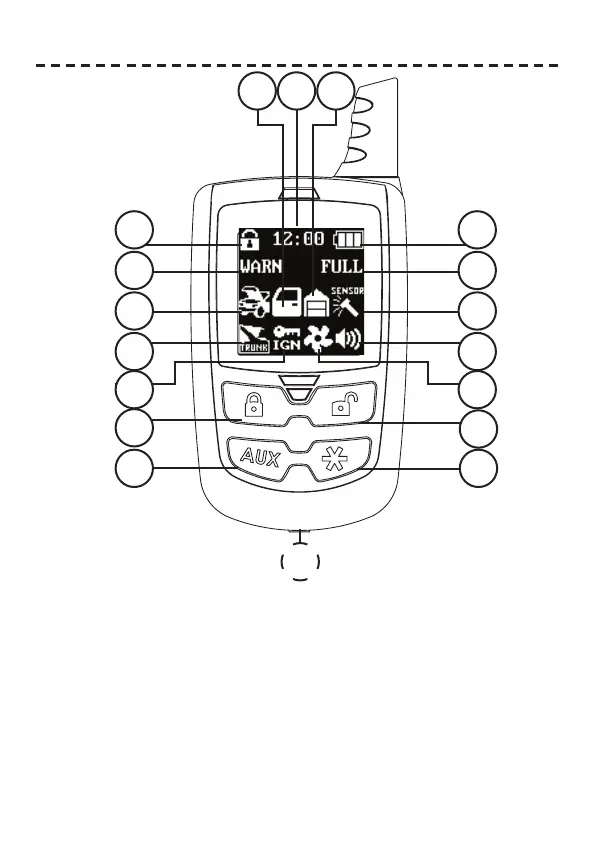

remote control diagram
1. ARM & DISARM ICON
2. SENSOR WARN TRIGGER & CAR CALL
ICONS
3. HOOD TRIGGER ICON
4. TRUNK OR HOOD ICONS
(PROGRAMMABLE)
5. IGNITION TRIGGER ICON
6. ARM/LOCK BUTTON
7. AUXILIARY CHANNEL BUTTON
8. TRANSMITTER PROGRAMMING
BUTTON (ON REAR)
9. REMOTE START BUTTON
10. DISARM/UNLOCK BUTTON
11. REMOTE START ON/OFF ICON
12. REMOTE CONTOL BEEPS ON/OFF ICON
13. SENSOR ZONE TRIGGER ICON
14. FULL TRIGGER FOR ALL ZONES & CAR
CALL ICONS
15. REMOTE CONTROL BATTERY LEVEL
INDICATOR ICON
16. GARAGE DOOR OPEN/CLOSE ICONS
17. CLOCK DISPLAY (12 HOUR)
18. DOOR TRIGGER ICON
6
7 9
10
4
3
2
1
12
13
14
15
18 17 16
5 11
8
