H2/6 LIGHT GREEN/BLACK (-) factory disarm
This wire sends a negative pulse every time the remote start is activated , channel 2 is activated (program-
mable on/off) or when the doors are unlocked with the remote. This can be used to pulse the disarm wire
of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to the disarm wire as shown
in the following diagrams.

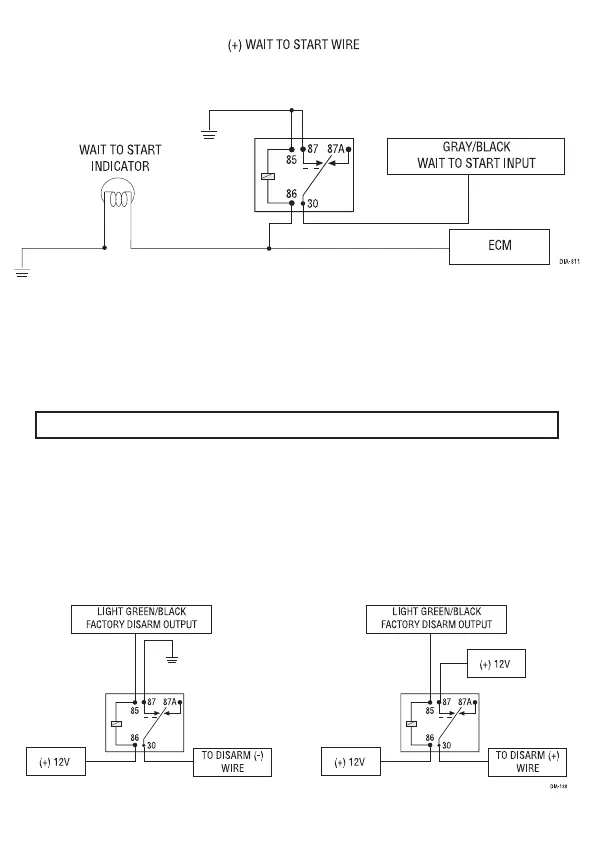

Relay for Negative (-) Disarm Wire Relay for Positive (+) Disarm Wire
