Directed DS4 Plus User Manual

27
DS4+ VW10
© 2017-11-02 Directed. All rights reserved.

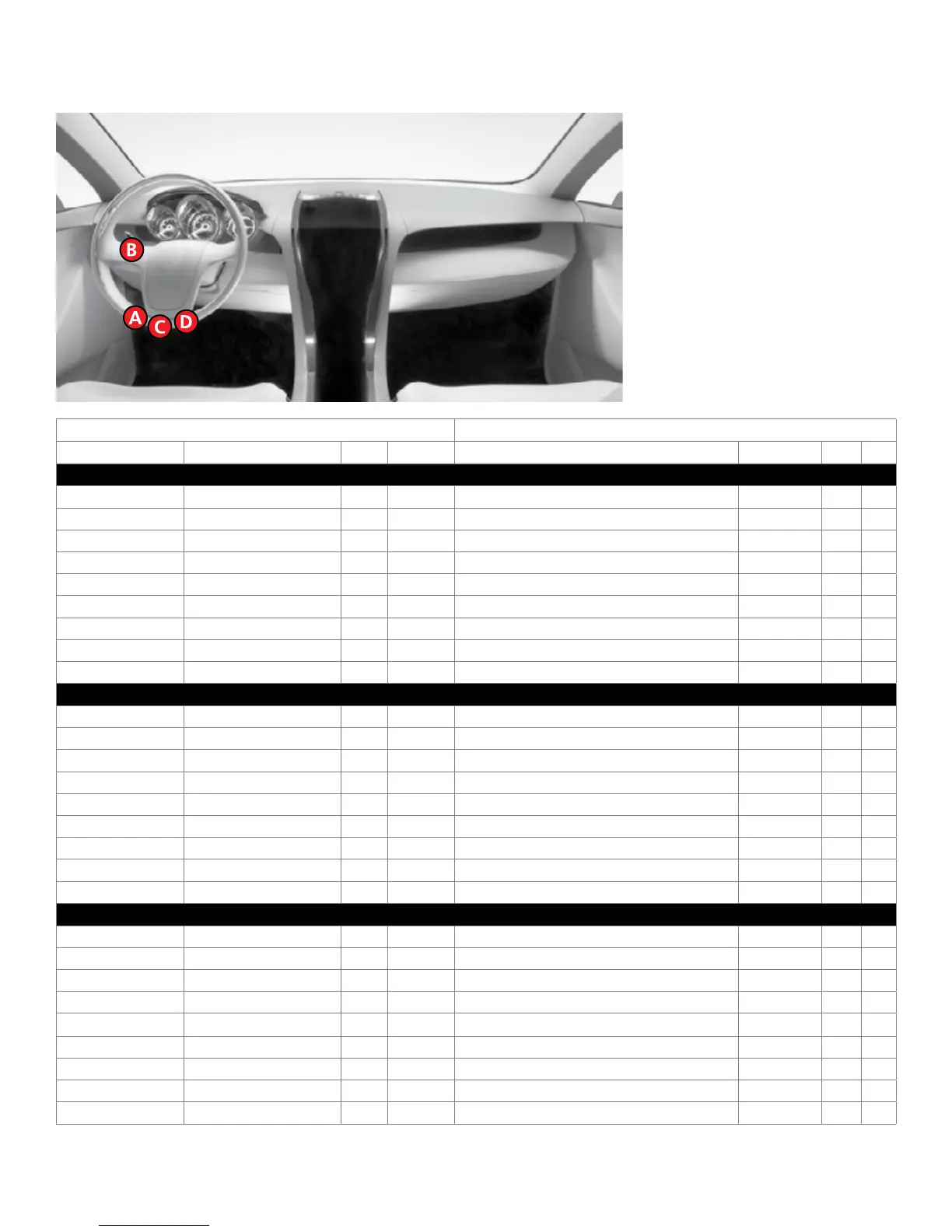

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Volkswagen EOS 2006-2009
12V Red/Black or Black 1 (+) VESCM connector L, under drivers dash. Black 2 A
Parking Light Gray/Yellow 3 (+) Headlight switch. Black 10 B
Parking Light Interrupt Red/White 8 Cut Headlight switch. Black 10 B
Starter Red/Black 1 (+) VESCM connector G, under drivers dash. Black 12 C
Ignition Black or Black/Green 11 (+) VESCM connector G, under drivers dash. Black 12 C
FT CAN High Orange/Green 8 Data VESCM connector G, under drivers dash. Black 12 C
FT CAN Low Orange/Brown 7 Data VESCM connector G, under drivers dash. Black 12 C
HS CAN High Orange/Black 6 Data OBDII. Black 16 D
HS CAN Low Orange/Brown 14 Data OBDII. Black 16 D
Volksawgen Golf 2006-2009
12V Red/Black or Black 1 (+) VESCM connector L, under drivers dash. Black 2 A
Parking Light Gray/Yellow 3 (+) Headlight switch. Black 10 B
Parking Light Interrupt Red/White 8 Cut Headlight switch. Black 10 B
Starter Red/Black or Red/Brown 1 (+) VESCM connector G, under drivers dash. Black 12 C
Ignition Black or Black/Green 11 (+) VESCM connector G, under drivers dash. Black 12 C
FT CAN High Orange/Green 8 Data VESCM connector G, under drivers dash. Black 12 C
FT CAN Low Orange/Brown 7 Data VESCM connector G, under drivers dash. Black 12 C
HS CAN High Orange/Black 6 Data OBDII. Black 16 D
HS CAN Low Orange/Brown 14 Data OBDII. Black 16 D
Volkswagen GTI 2006-2009
12V Red/Black or Black 1 (+) VESCM connector L, under drivers dash. Black 2 A
Parking Light Gray/Yellow 3 (+) Headlight switch. Black 10 B
Parking Light Interrupt Red/White 8 Cut Headlight switch. Black 10 B
Starter Red/Black or Red/Brown 1 (+) VESCM connector G, under drivers dash. Black 12 C
Ignition Black or Black/Green 11 (+) VESCM connector G, under drivers dash. Black 12 C
FT CAN High Orange/Green 8 Data VESCM connector G, under drivers dash. Black 12 C
FT CAN Low Orange/Brown 7 Data VESCM connector G, under drivers dash. Black 12 C
HS CAN High Orange/Black 6 Data OBDII. Black 16 D
HS CAN Low Orange/Brown 14 Data OBDII. Black 16 D
