DS4+ VW10

Vehicle wiring reference chart

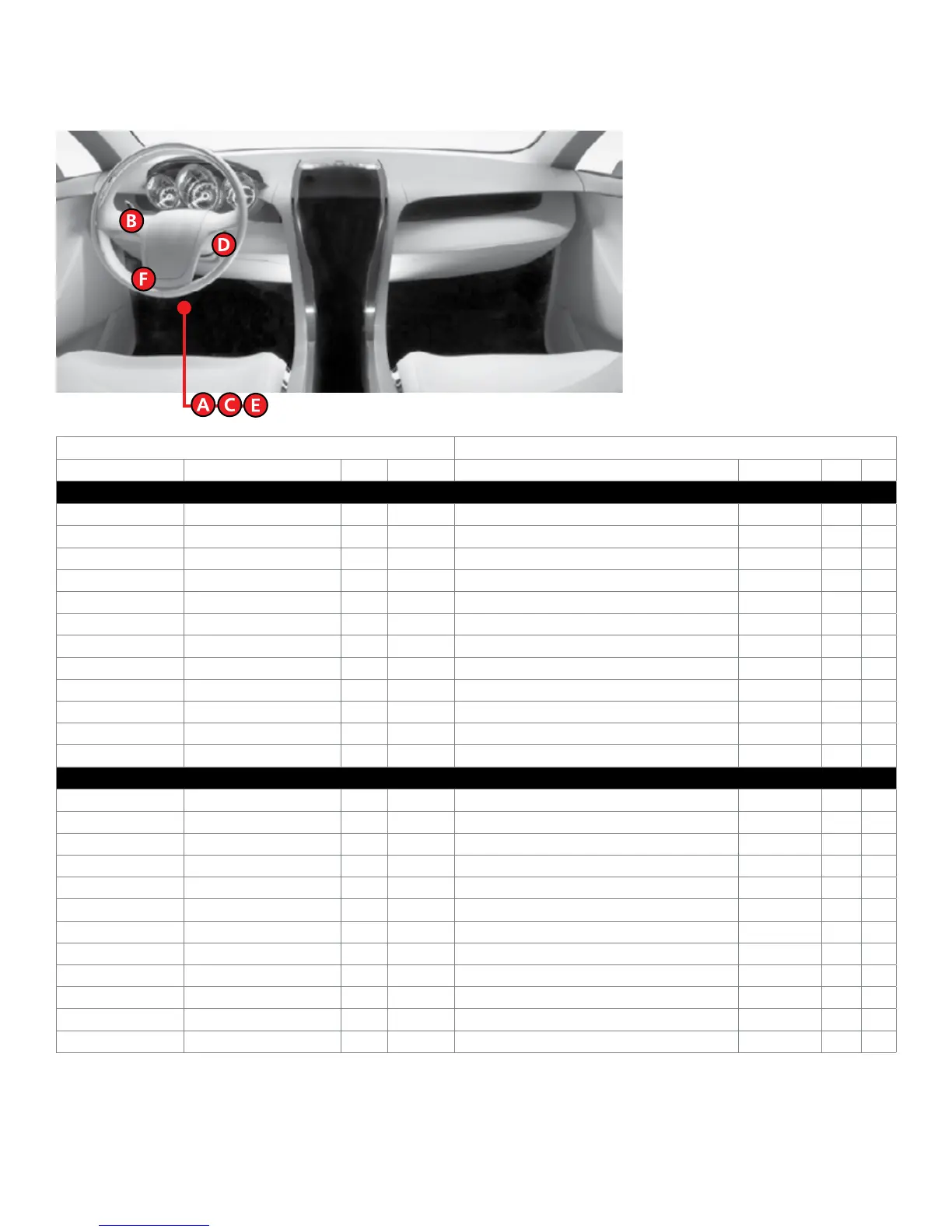

This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to

www.directechs.com for additional information.

Wire Information Connector Information

Function Color Pin Polarity Location Color Pins Ref.

Volkswagen Passat 2006-2010

12V Red/White 1 (+) VESCM connector L, under drivers dash. Black 2 A

Parking Light Gray/Yellow 3 (+) Headlight switch. Black 10 B

Parking Light Interrupt Red/White or Red/Black 8 Cut Headlight switch. Black 10 B

Starter Red/Gray or Red/Violet 1 (+) VESCM connector G, under drivers dash. Black 12 C

Ignition Red/Violet 11 (+) VESCM connector G, under drivers dash. Black 12 C

FT CAN High Orange/Green 8 Data VESCM connector G, under drivers dash. Black 12 C

FT CAN Low Orange/Brown 7 Data VESCM connector G, under drivers dash. Black 12 C

Keysense Green 16 (+) Keyport switch. Black 16 D

12V Interrupt Green/Red 3 (+) Keyport switch. Black 16 D

Brake Black/Red 2 (+) VESCM connector E, under drivers dash. Black 16 E

HS CAN High Orange/Black 6 Data OBDII. Black 16 F

HS CAN Low Orange/Brown 14 Data OBDII. Black 16 F

Volkswagen Passat CC 2009-2010
