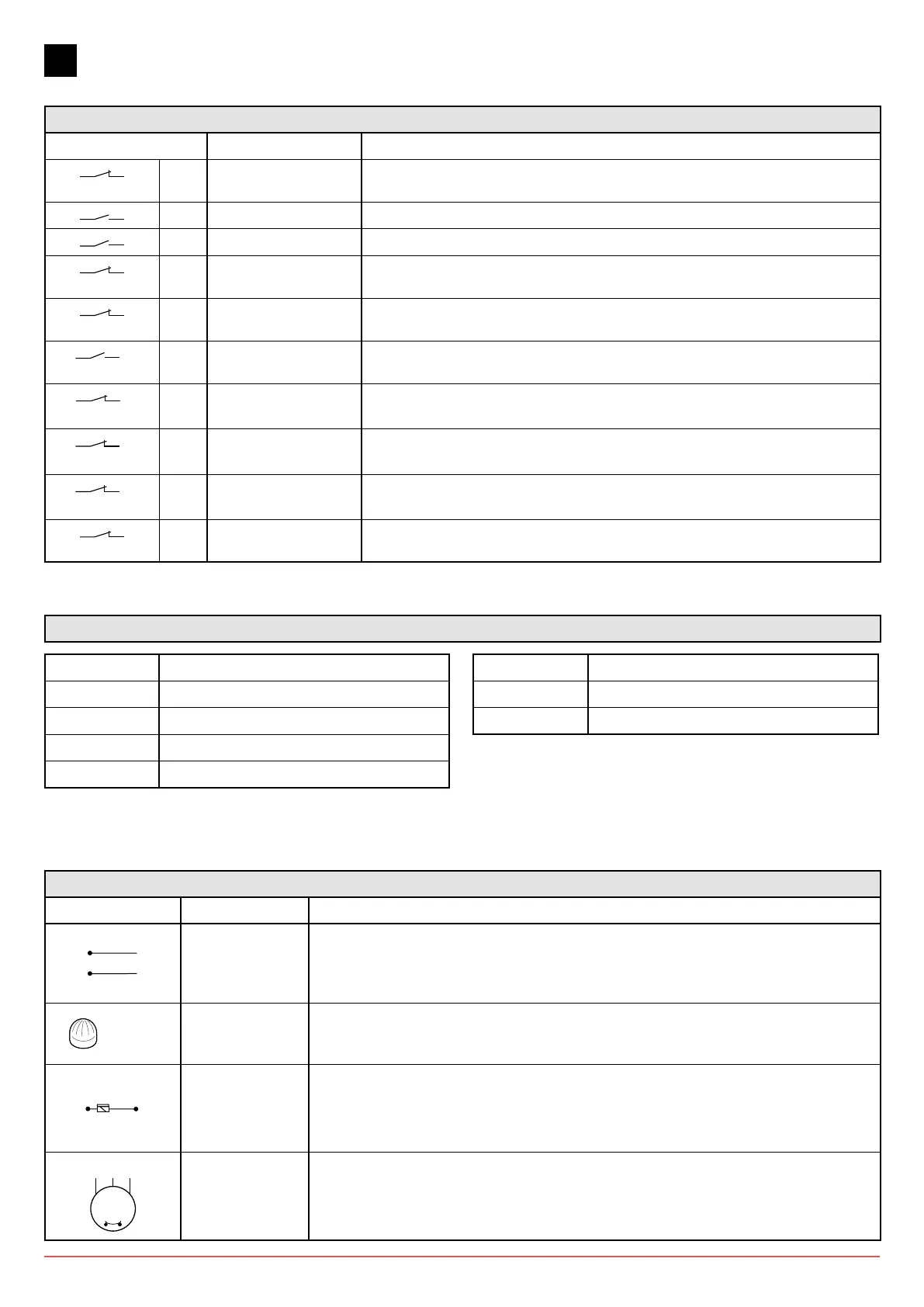

1. 52E CONTROL PANEL (INVERTER) - Connections
INPUTS
Command Function Description
1
2 NC STOP If on the programming menu (page 15 point 16)
With contact 1-2 enabled, the opening of the contact STOPS the door
1
3
NO
Opening
The closure of the contact activates the opening operation.
1
4
NO
Closure
The closure of the contact activates the closing operation.
41
40 NC Reversal safety
contact
The opening of the safety contact triggers a reversal of the movement
(reopening) during the closing operation.
1
8 NC Reversal safety
contact
The opening of the safety contact triggers a reversal of the movement
(reopening) during the closing operation.
1
20 NO Partial opening The closure of the contact activates a partial opening operation of the duration
set with the advanced menu.
1
11
NC
Closing limit switch
The opening of the contact stops the closing operation.
1
13
NC
Opening limit switch
The opening of the contact stops the opening operation.
1
12
NC
Deceleration limit
switch
The opening of the contact activates deceleration during opening.
1
9 NO Closure enabling
with SLEC
In the case of doors with SLEC, the opening of the contact allows the door
to work only when someone is present.
OUTPUTS
Output Value Description
1
0
+
-
24V = / 0.5A
Power supply to accessories.
Power supply output for external accessories, including automation status lamps.
LAMP
230V~ / 50W
Flashing light (LAMP).
Activated during opening and closing operations.
-F +F
200V= / 0.2A
or
24V = / 0.5A
Electric motor brake.
Automatically set with the choice of door model in the programming menu.
The output is active for the duration of both the opening and closing operations.
U W V
M
3 ~
230V~ / 6A Three-phase motor.
M2 Safety device / Commands
M3 Position signal
M4 Interlock
M4A Back
M5 Motor / brake motor
J4 Brake resistance
OPEN Auxiliary panel card
SAFETY Auxiliary safety card
CONTROL PANEL CONNECTORS
52E
