DITEC LCA70 User Manual

11
IP2368EN
EN
Motore 2Motore 1
21
Motore 2Motore 1
21

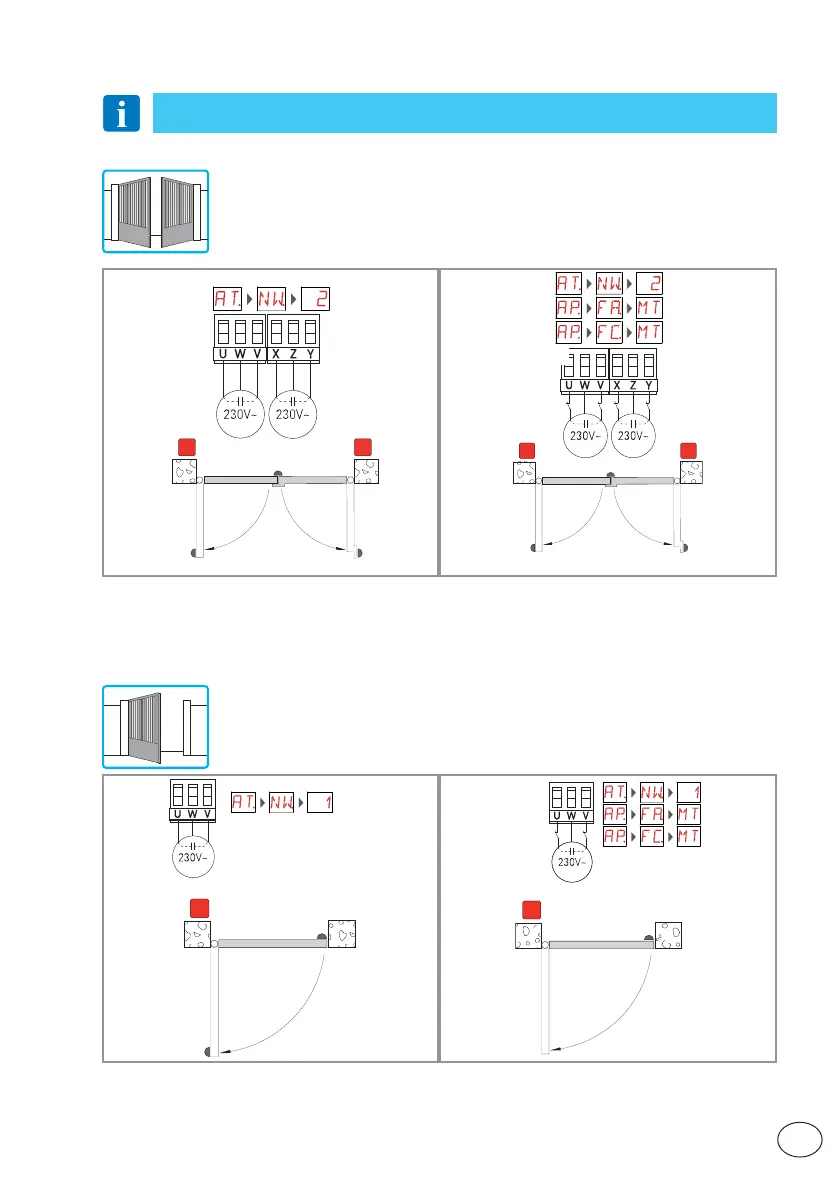

8. Application examples
8.1 Automations with two swinging gates
8.2 Automations with one swinging gate wing
When the Ditec LCA80 control panel is used in applications for automations with
one swinging gate wing, the following connections may be made:
1
Motore 1
Fig. 8.3
1
Motore 1
Fig. 8.4
When the Ditec LCA80 control panel is used in applications for automations with
two overlapping swinging gate wings, the following connections may be made:
(Fig. 8.1) Installation with mechanical end stops for opening and closure, and without the use of electric limit
switches.
(Fig. 8.2) Installation with the use of electric limit switches for opening and closure, series connected to the
motor's phases.
(Fig. 8.3) Installation with mechanical end stops for
opening and closure, and without the use of electric
limit switches.
(Fig. 8.4) Installation with a mechanical end stop for
closure and the use of electric limit switches for opening
and closure, series connected to the motor's phases.
WARNING: make sure that the operating forces of the gate wings comply with the
EN12453 standard.
Motor 1
Motor 1
Motor 1
Motor 1
Motor 1 Motor 2
Motor 2
Motor 2
Fig. 8.1 Fig. 8.2
