DITEC LCA70 User Manual

26
IP2368EN
EN
RO - Radio operations
RK - Menu navigation using remote control keyboard
ON - Enabled
OF - Disabled
With the display turned off, quickly type in the sequence of keys
3
3
3
3
2
2
4
4
1
1
from
the stored remote control you want to use.
Make sure all the CH keys are stored.
4
1 (Enter)
3 (Esc)
2 (∆)
(∆)
To aid vision and adjustment (avoiding the need to continuously press the remote control),
press the UP ↑ or DOWN ↓ key once to begin slowly scrolling through the parameters.
This scrolling movement is faster if the UP ↑ or DOWN ↓ key is pressed twice.
To stop the scrolling, press ENTER.
To confirm your choice of parameter, press ENTER again.
To test any new setting, switch off the display and issue an opening command
using key
3
3
.
Navigation using a remote control keyboard is automatically disabled after 4 minutes
of inactivity or by setting
→ .
11.5.1 Additional configurable BO level parameters available with
→ enabled

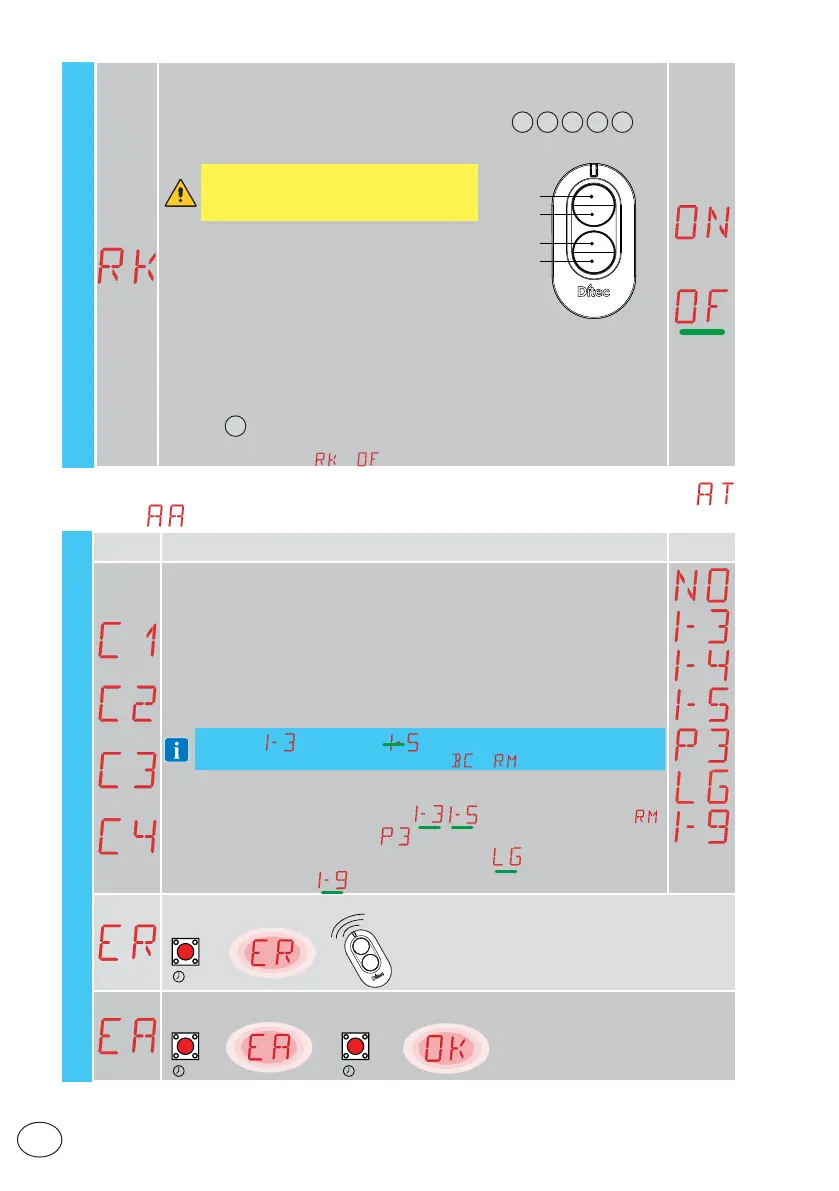

RO - Radio operations
Display Description
Selections
available
C1, C2, C3, C4 - Selection of CH1, CH2, CH3, CH4 function of stored remote control
NO - No setting selected
1-3 - Opening command
1-4 - Closing command
1-5 - Step-by-step command
P3 - Partial opening command
LG - Command to switch the courtesy light on/off
1-9 - STOP command
If even just one (any) CH key of the remote control is stored, the opening or step-
by-step command is implemented.
NOTE: the (opening) and (step-by-step) options are available as
alternatives, and depend on the selection
→ .
If 2-4 CH keys of a single remote control are stored, the functions matched in the
factory with the CH keys are as follows:
• CH1 = opening/step-by-step command;
, (depending on parameter );
• CH2 = partial opening command; ;
• CH3 = command to switch on/off the courtesy light;
• CH4 = STOP command; .
ER - Deletion of a single remote control
→→
2”
ENTER
EA - Total deletion of part of storage used for remote controls
→→
→
2”
ENTER
2”
ENTER
WARNING: during navigation with a remote
control keyboard ALL the stored remote
controls are inactive.
