DITEC LCA70 User Manual

25
IP2368EN
EN

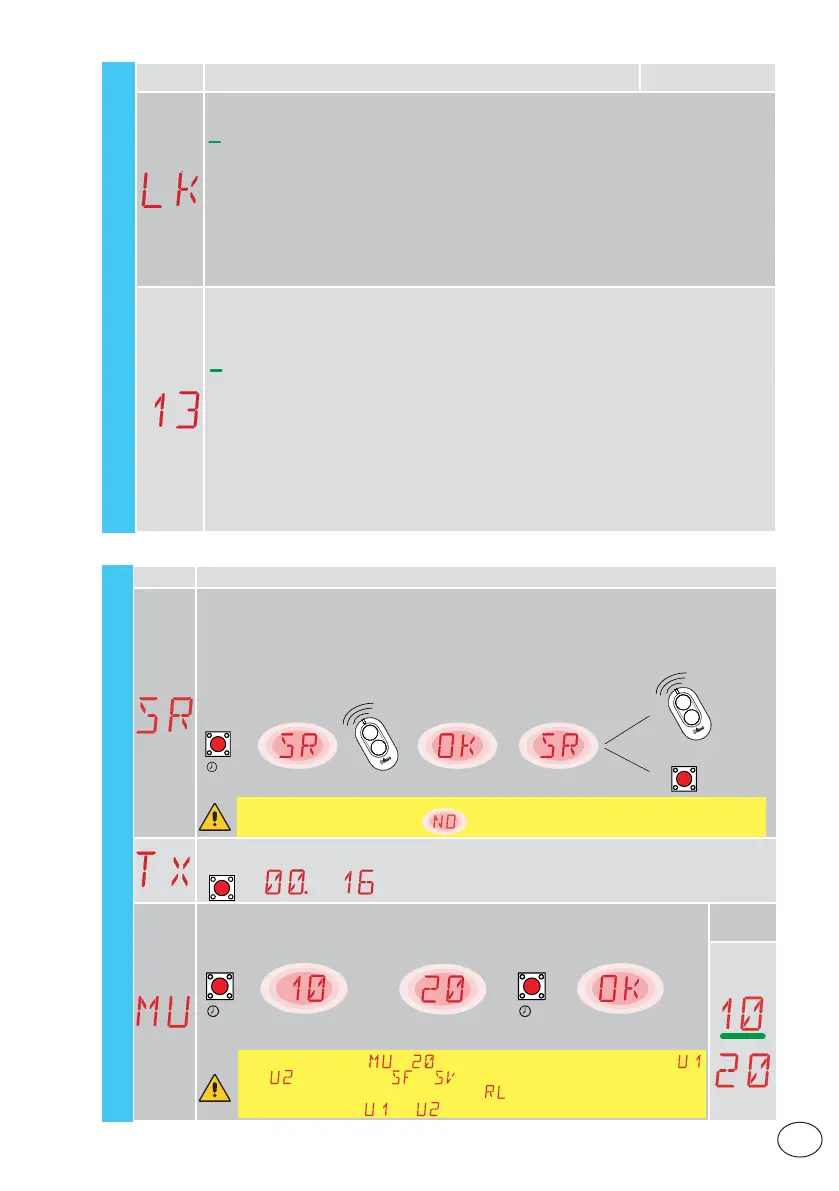

BA - Basic adjustments
Display Description Selections available
LK - LK output operating mode~
00 - Courtesy light
01 - Activation of electric lock
02 - Activation of electric lock with release stroke
03 - Output activated with gate closed (for fail-safe electromagnets)
04 - Output activated with gate open
05 - Output activated with gate moving (can be used for electromagnets which need to be
powered throughout opening or closing operations)
06 - Output activated during opening
07 - Output activated during closing
08 - Maintenance alarm
ON - Output always active
13 - 13 output operating mode
00 - Courtesy light
01 - ON-OFF flashing light
02 - Permanent flashing light (auto-flashing)
03 -
Proportional indicator light for open gate (quick flashing when opening, permanently on with
gate open, slow flashing when closing)
04 - Indicator light for open gate (it comes on when opening starts and remains on until closure
has been completed)
05 - Gate stationary and closed indicator light
06 - Gate stationary and fully open indicator light
07 - Gate moving indicator light (on both during opening and closing)
08 - Gate opening indicator light
09 - Gate closing indicator light
10 - Maintenance alarm
ON - Output always active
11.5 Level two RO menu (Radio operations)
Display Description
SR - Remote control storage
You can directly access the Remote control storage menu even with the display turned off, but
only with the Display visualisation mode option set to 00 or 03:
- for transmitting a remote control not present in the memory;
- for transmitting an unstored channel of a remote control already
present in the memory.
→→→
→
→
→
...x2, x3...
2”
ENTER
ESC
WARNING: if the display shows flashing, the remote control may already be stored.
TX - Visualisation of counter showing remote controls stored
→→ → 16 radiocomandi [esempio]
ENTER
MU - Indication of maximum number of remote controls that can be stored in the integrated
memory
You can store a maximum of 100 or 200 remote control codes.
→→
→
oppure
2”
ENTER
2”
ENTER
10 - 100 remote controls that can be stored
20 - 200 remote controls that can be stored
WARNING: selecting → (200 remote controls), the configurations
and
saved with the → command will be lost. This also applies
for the last configuration reloaded with
. In addition, new configurations
cannot be saved on
and .
Selections
available
RO - Radio operations
16 remote controls [example]
or
