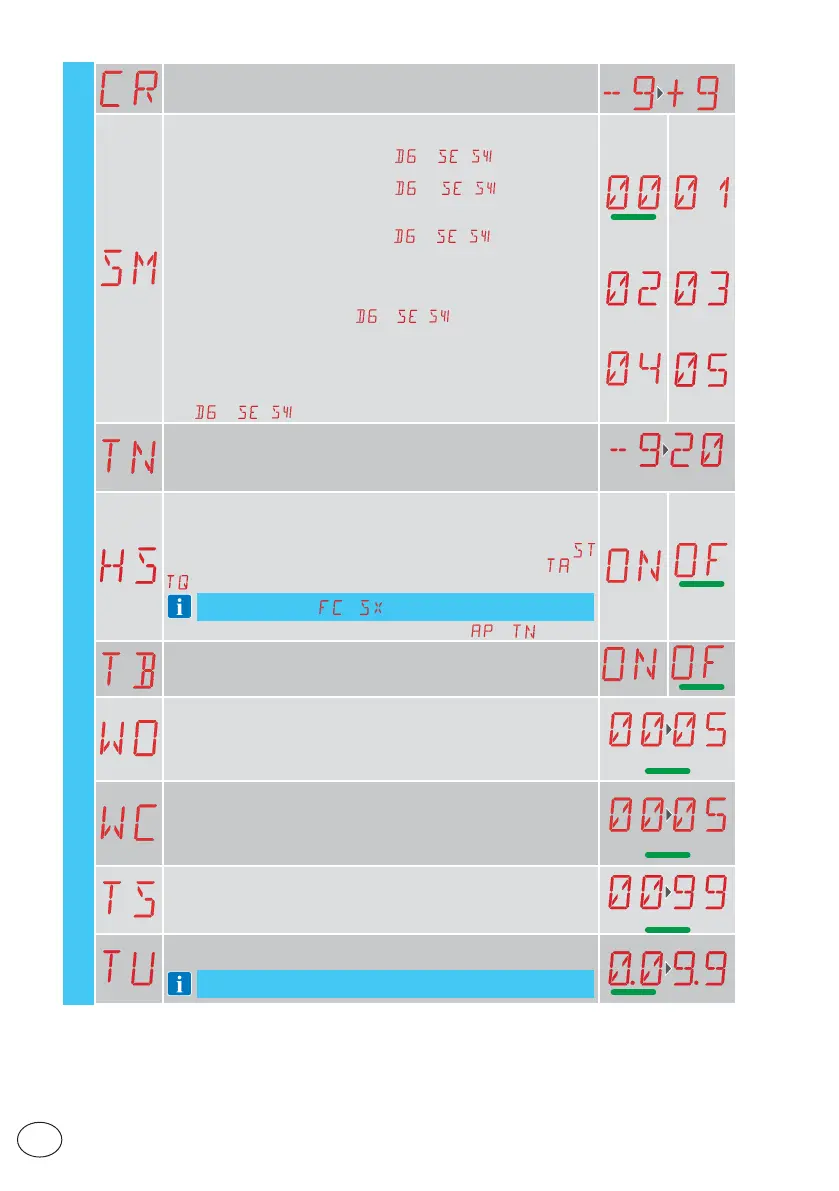

AP - Advanced parameters
CR - Stroke estimate correction [%]
DO NOT USE (diagnostic purposes only)
SM - Selection of operating mode of device connected to terminals 1-6
00 - During opening operation, open state of safety contact stops
movement (with disengagement if
→ / ).
01 - During opening operation, open state of safety contact stops
movement (with disengagement if
→ / ). The interrupt-
ed operation is resumed when the contact is closed again.
02 - During opening operation, open state of safety contact stops
movement (with disengagement if
→ / ). An opening op-
eration is performed when the contact is closed again.
03
- During closing operation, open state of safety contact reverses movement.
During the opening operation, the safety device is ignored.
04 - During opening operation, open state of safety contact stops move-
ment (with disengagement if
→ / ). The interrupted open-
ing operation is resumed when the contact is closed again. During
the closing operation, the safety device is ignored.
05 - During closing operation, open state of safety contact stops and
then reverses movement. During the opening operation, the open-
ing of the safety contact stops the movement (with disengagement
if
→ / ).
TN - Setting of intervention temperature for the NIO electronic an-
ti-freeze system and automatic HS ramps [°C]
This value does not refer to the ambient temperature, but to the internal
control panel temperature.
20
HS - Automatic ramp adjustment
ON - Enabled
OF - Disabled
When enabled (ON), at low ambient temperatures the start time
increases up to the maximum value and the acceleration time
and
diminishes to the minimum value.
NOTE: not active if → .
The activation temperature is settable by selecting
→ .
TB - Permanent display of the internal control panel temperature [°C]
WO - Setting of pre-flashing time on opening [s]
Adjustment of the lead time for the switch-on of the flashing light, in
relation to the start of the opening operation from a voluntary command.
00 - Minimum
05 - Maximum.
00
WC - Setting of pre-flashing time on closing [s]
Adjustment of the lead time for the switch-on of the flashing light, in
relation to the start of the closing operation from a voluntary command.
00 - Minimum
05 - Maximum.
00
TS - Setting of renewal of automatic closing time after safety device
release [%]
00 - Minimum
99 - Maximum.
99
TU - Time at maximum thrust force after completion of closing oper-
ation (e.g. to relatch electric lock) - 0.0 to 9.9s
NOTE: Setting the parameter to 0.0 disables thrust.
