Type of
alarm
Display Description Operation

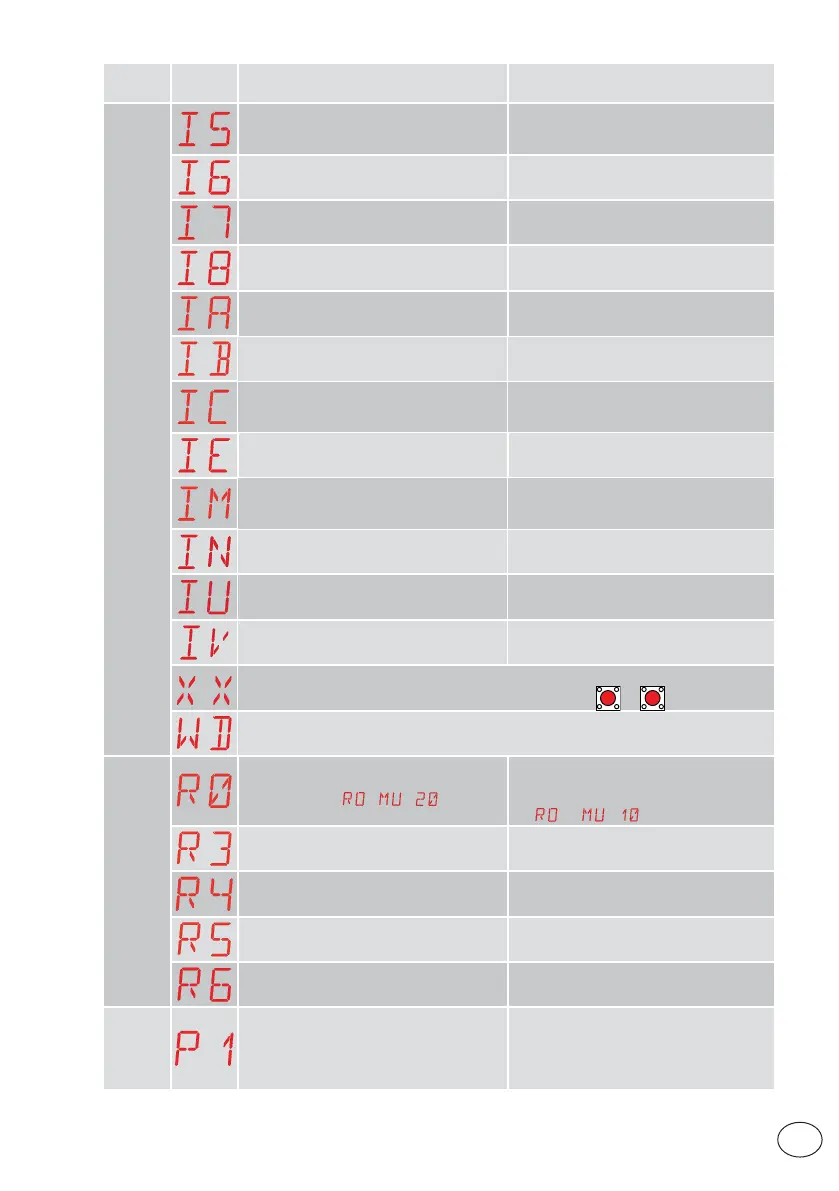

Internal control panel alarm
I5 - No voltage 0-30 (faulty voltage regulator
or short-circuit on accessories)
Check there is no short circuit in connection
0-30. If the problem persists, replace the
control panel.
I6 - Excessive voltage 0-30 (faulty voltage
regulator)
Replace the control panel.
I7 - Internal parameter error - value out-
side limits
Reset. If the problem persists, replace the
control panel.
I8 - Program sequence error
Reset. If the problem persists, replace the
control panel.
IA - Internal parameter error (EEPROM/
FLASH)
Reset. If the problem persists, replace the
control panel.
IB - Internal parameter error (RAM)
Reset. If the problem persists, replace the
control panel.
IC - Operation time out error (>3 min).
Manually check that the gate wing moves
freely. If the problem persists, replace the
control panel.
IE - Power supply circuit fault
Reset. If the problem persists, replace the
control panel.
IM - TRIAC alarm - motor 1 short circuited
or always ON.
Reset. Check the settings / operating of any
limit switches.
If the problem persists, replace the control panel.
IN - TRIAC alarm - motor 2 short circuited
or always ON.
Reset. If the problem persists, replace the
control panel.
IU - Motor 1 voltage reading circuit test
error.
Reset. If the problem persists, replace the
control panel.
IV - Motor 2 voltage reading circuit test
error.
Reset. If the problem persists, replace the
control panel.
XX - Firmware reset commanded by simultaneous usage
UP
+
DOWN
keys
WD - Firmware reset not commanded
Radio operations alarm
R0 - Storage module installed containing
over 100 stored remote controls.
WARNING: the
→ → setting is
made automatically.
To save the system configurations on the
storage module, delete any stored remote
controls and bring the total to less than 100.
Set
→ → .
R3 - Storage module not detected
Insert a storage module.
R4 - Storage module not compatible with
the control panel
Insert a compatible storage module.
R5 - No serial communication with the
storage module
Replace the storage module.
R6 - Specific storage module for testing
installed.
Power supply
alarm
P1 - Microcontroller voltage too low. Check the control panel is powered cor-
rectly.
