In the output section if you choose “Icon” the system will show a small drawing with the following meaning:
Example Table 3
coloured icon rounded with blue square

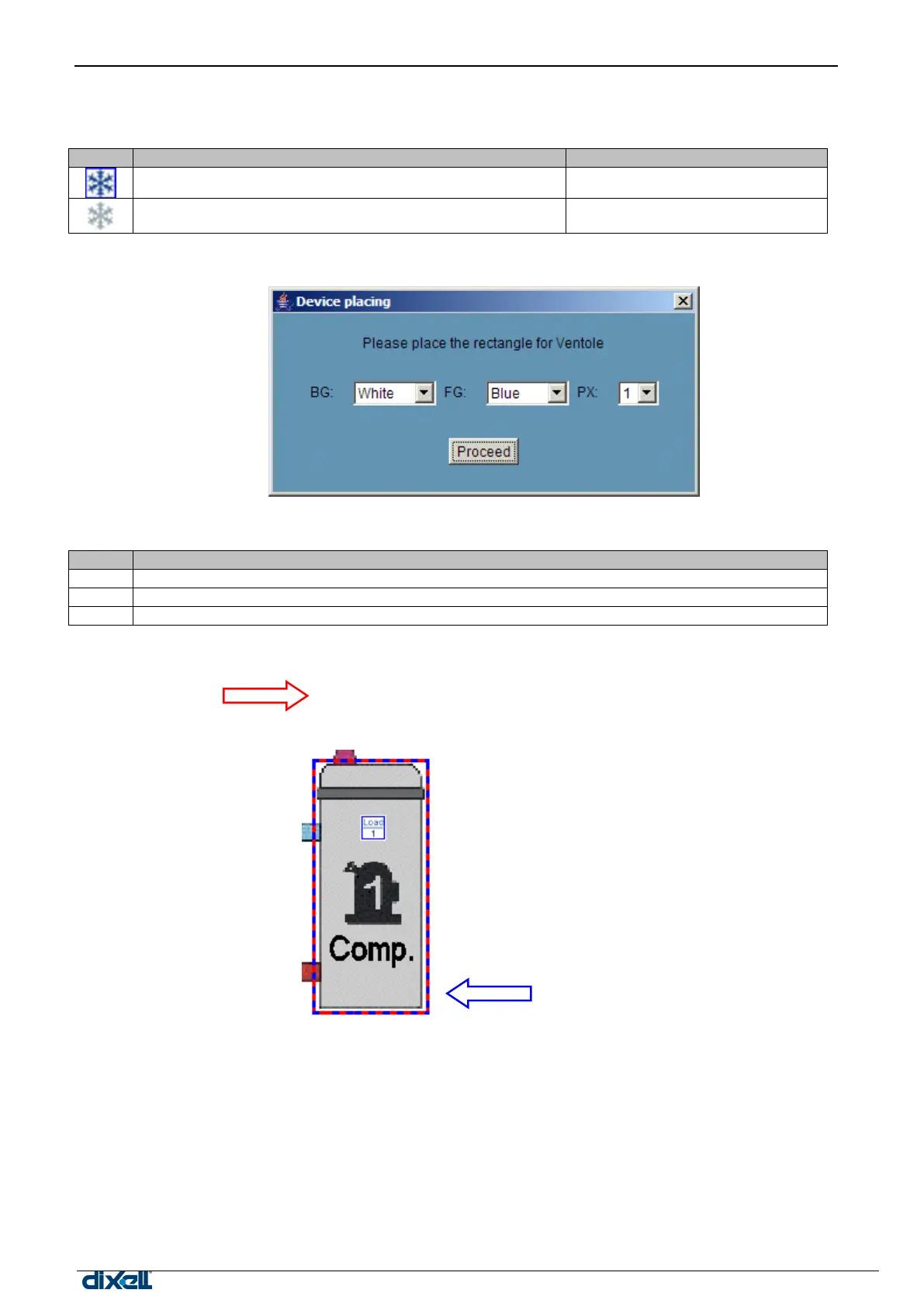

In the output section if you choose “Motion” a new window will appear:
User has to choose the rectangle property:
Rectangle background colour
Rectangle foreground colour
With the first left button mouse click you place the control in the layer, then point to the top left corner of the
rectangular area, hold down left mouse and drag the pointer to the bottom right corner. Release left mouse
button move the rectangular area to centre it and push left mouse button once. In the
following example you can see a compressor rounded with a blue/red rectangular area. We
also used “load 1” icon:
Left mouse click here
Hold down left mouse button
and drag the pointer to the blue
arrow.
When you reach the blue
arrow release the left mouse
button. One more left mouse
click to place.
AA) SENSIBLE AREA
It allows to define a particular zone that can be linked to a layer. Mouse pointer change itself to a finger-icon
when it is moved on these areas. The following window will appear:
