DMM DYN4 Series - Page 24

24
DMM Technology Corp.
DYN4 AC Servo Drive Instruction Manual
REV. ZM7-A10A
CT1

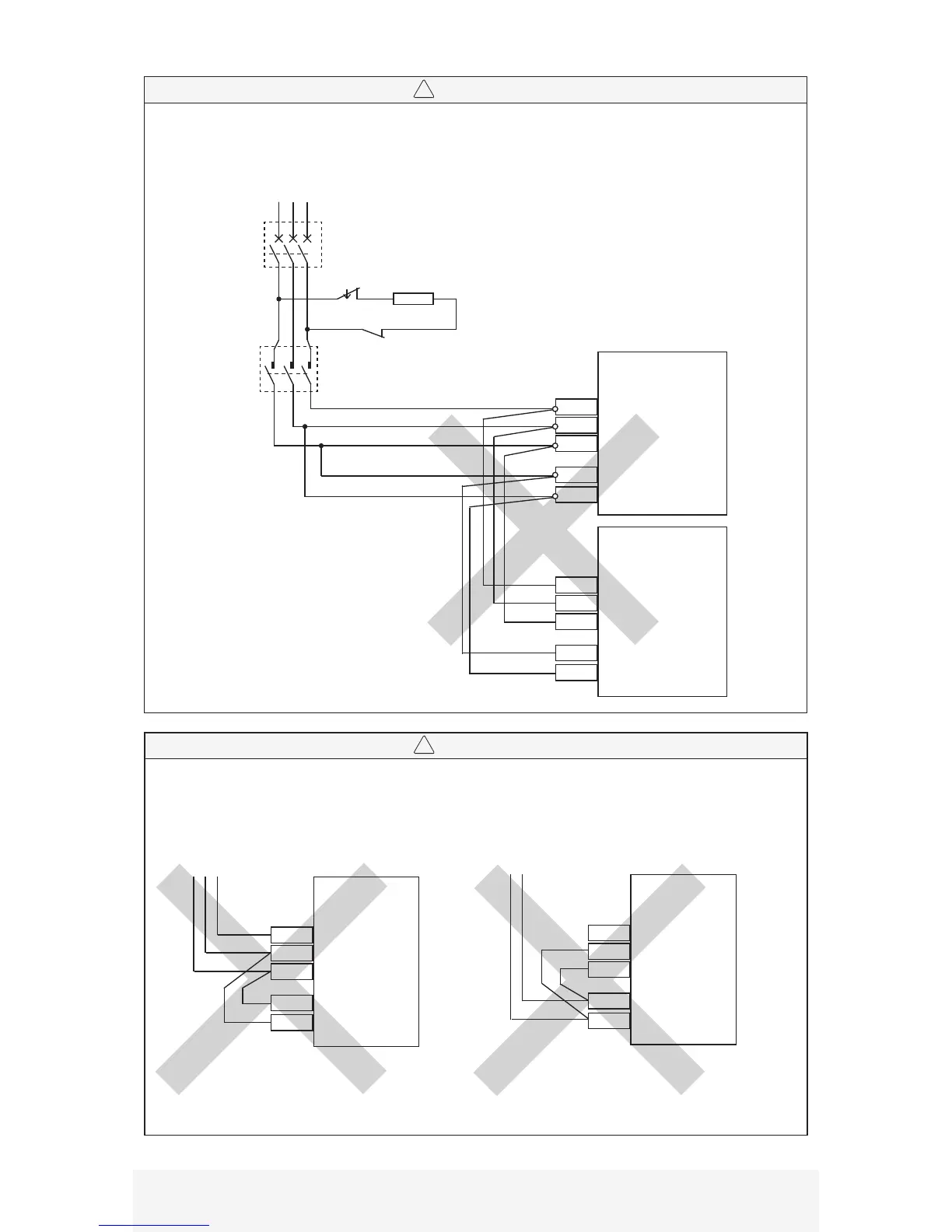

• Do not daisy chain the main power input from one drive to another. The different power levels of each
servo drive can cause permanemt damage at power ON or during operation.
WARNING
!
Mains Supply
R S T
MCCB
MC1
MC1
ESTOP
ON
OFF
Manual
Switch
T
R
S
L2
L1
T4
Main Circuit Power
Supply
Control Logic
Power Supply
DYN4 Servo Drive
T
R
S
L2
L1
T4
Main Circuit Power
Supply
Control Logic
Power Supply
DYN4 Servo Drive
• Do not jumper the control R,S,T and logic L1, L1 terminals. Connect each to the power supply source
directly.
WARNING
!
DYN4 Servo Drive
T
R
S
L2
L1
T4
Main Circuit Power
Supply
Control Logic
Power Supply
DYN4 Servo Drive
From
AC Power
T
R
S
L2
L1
T4
Main Circuit Power
Supply
Control Logic
Power Supply
DYN4 Servo Drive
From
AC Power
