CT1

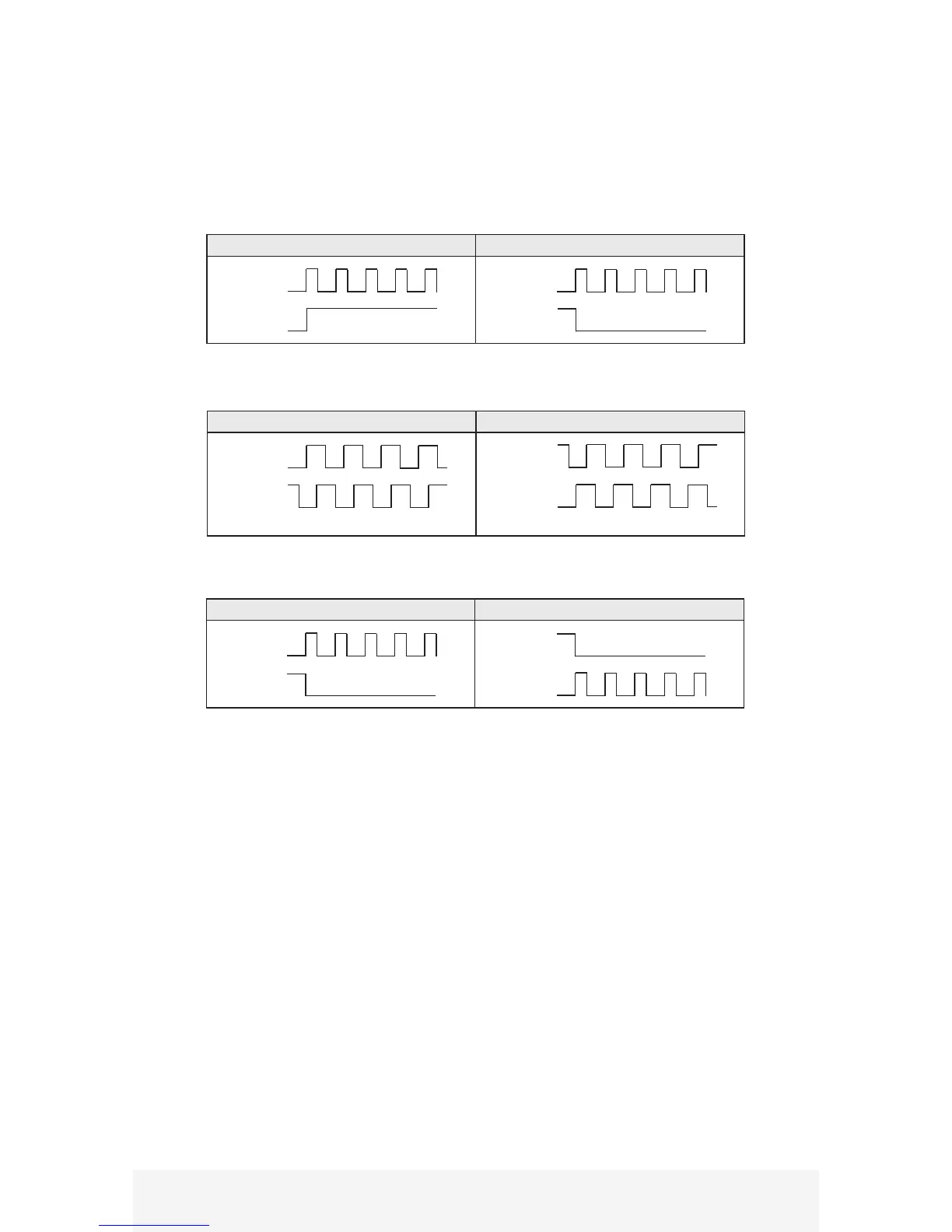

█ Reference Pulse Format
♦ Pulse + Direction
Forward Reference Reverse Reference
PUL+
JP4-11
DIR+
JP4-22
PUL+
JP4-11
DIR+
JP4-22
♦ CW + CCW
Forward Reference Reverse Reference
CW+
JP4-11
CCW+
JP4-22
CW+
JP4-11
CCW+
JP4-22
♦ A/B phase quadrature with 90° phase differential
Forward Reference Reverse Reference
A+
JP4-11
B+
JP4-22
A+
JP4-11
B+
JP4-22
A Leads B B Leads A
The DYN4 servo drive accepts FORWARD reference as CLOCKWISE motor shaft rotation as viewed from
motor shaft side.
