Digital Monitoring Products XR150/XR550 Series Installation Guide
4
SYSTEM COMPONENTS
System Components
3.1 Wiring Diagram
The XR150/XR550 Series diagram below shows some of the accessory modules you can connect for use in various
applications. A brief description of each module follows in section 3.3.

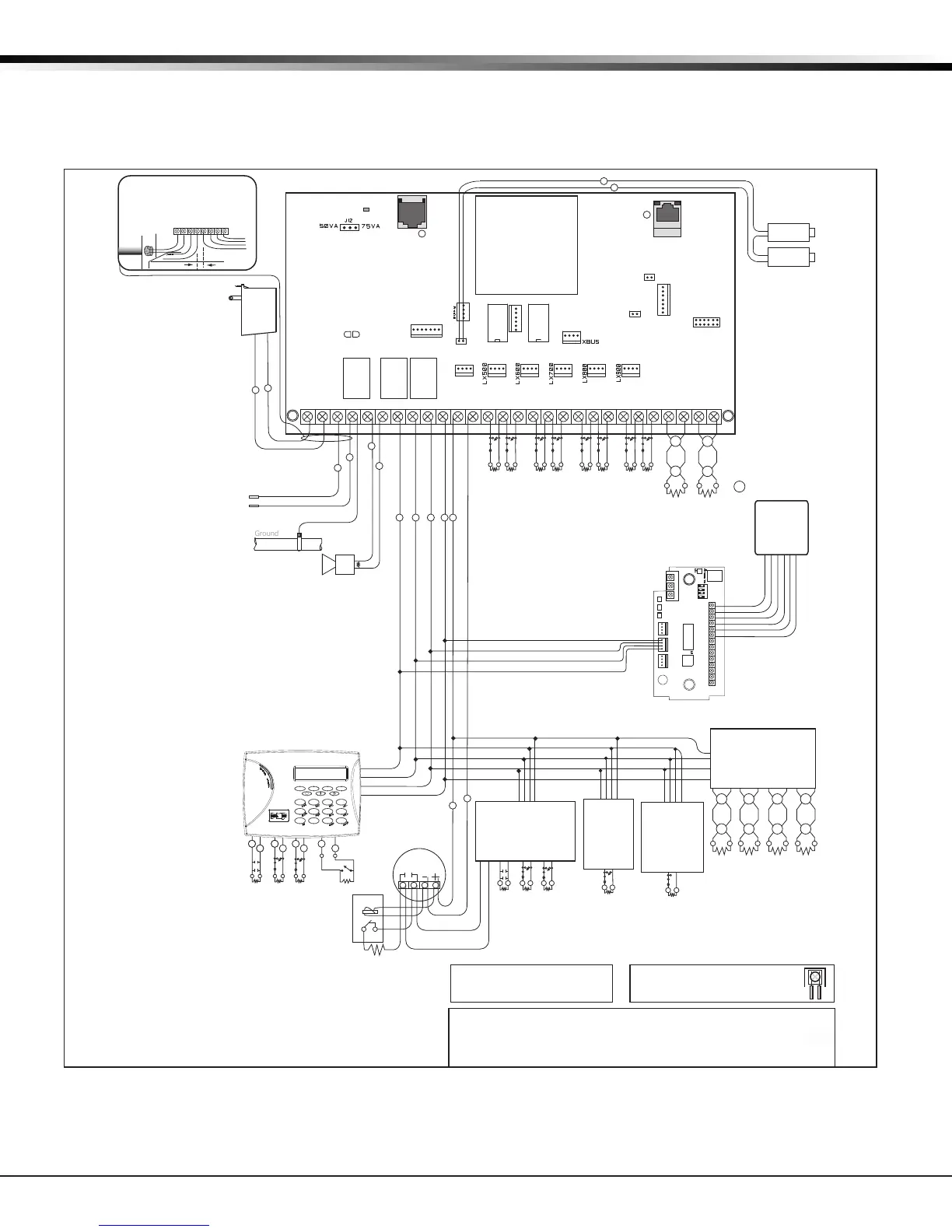

Figure 1: XR550 Series Wiring Diagram
3.2 Lightning Protection
Metal Oxide Varistors and Transient Voltage Suppressors help protect against voltage surges on panel input and output
circuits. Additional surge protection is available by installing the DMP 370 or 370RJ Lightning Suppressors or Model 270
Network Transient Suppression Module.
Any other contact
devices listed for Fire
Protective Signaling can
be connected to zones
9 and 10.
Zones 9 and 10 and
Model 715 compatibility
identifier: A
Maximum operating
range: 13.8VDC to
9.7VDC.
Class B (Style A).
WARNING: Incorrect connections
may cause damage to the unit.
Listed Resistors
1.0k Ohm - DMP Model 311
3.3k Ohm - DMP Model 309
10K Ohm - DMP Model 308
Front and Rear tamper
protection included
with Model 350A
Attack Resistant
Enclosure.
Bell cutoff time
range is 5 to 99
minutes, non-coded.
Bell
12VDC
Minimum cutoff time 5 min.
1.5 Amp Max
Auxiliary/Smoke Power
Total current combined from terminals 7, 11, 25,
27, XBUS and LX500-LX900:
1.5 Amp Max 13.8VDC to 10.2VDC
¼"
AC Wiring must be in conduit and exit
out the left side of the enclosure.
Wiring on terminals 5 through 22 must
exit right and maintain 1/4" separation
from the AC and battery positive wiring.
16 to 18 gauge wire
Maximum AC Wire distance
with 16 gauge wire: 70 feet
with 18 gauge wire: 40 feet
The plug-in transformer shall plug
into a 120VAC 60 Hz outlet not
controlled by a switch and all
16
to 18 gauge wire
shall run
through conduit.
Keyswitch Arming
can be connected
to any zone.
s
s
s
RED
PROG
J2
734
Interface
Modul
e
RED
J5
J4
KYPD OUT
S1
J3
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NC
C
NO
GRN
YEL
RED
+ –
ON
Piezo
1
2
3
4 5 6 7
8
10
11 12 13 14
9
LC ASRED WHT GRN BLK Z1 Z2 Z3 Z4+ Z4–RA GND GND
KYPD IN
RED
AC
1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199 20 21 22 23 24 25 26 27 28
+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+ Z10–AC –B GND GND GNDGND
XR550 Series
Panel
1k Ohm 1k Ohm 1k Ohm
DISARM
ARM
Smoke
Detector
3.3k Ohm 3.3k Ohm 3.3k Ohm 3.3k Ohm
1k Ohm
Form C Relays (J2)
Output Color Code–Model 431 Harness
Output 2 N/O Orange/White
Output 2 Com White/Gray
Output 2 N/C Violet/White
Output 1 N/O Orange
Output 1 Com Gray
Output 1 N/C Violet
Annunciator Outputs (J11)
Output Color Code
Output 3 Red
Output 4 Yellow
Output 5 Green
Output 6 Black
Front
Tamper
Rear
Tamper
s
RED
BLACK
Cold Water
Pipe Earth
Ground
Bell
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
Zone 7
Zone 8
3.3k
Ohm
Resistor
3.3k
Ohm
Resistor
Zone Expander
Model 715
7mA @ 12VDC
Models 715-8, 715-16
20mA @ 12VDC
1k Ohm
s
= Supervised Circuit
Zone
9
Zone
10
22 gauge minimum
22 gauge minimum
22 gauge minimum
22 gauge minimum
RED
YELLOW
GREEN
BLACK
1k Ohm 1k Ohm 1k Ohm
Zone Expander
Model 714
7mA @ 12VDC
Models 714-8, 714-16
20mA @ 12VDC
RED
YELLOW
GREEN
BLACK
s
s
s
s s s s s
s
s
s
s
S S S S S S S S
S S S S
1k
Ohm
SS
1k
Ohm
SS
1k
Ohm
SS
1k
Ohm
SS
1k
Ohm
SS
1k
Ohm
SS
1k
Ohm
SS
1k
Ohm
SS
S S
S SS SS S
1k Ohm
Zone Expander
(up to 8 zones)
Model 712-8
19mA @
12VDC
S S
Zone
Expander
Model 711
7mA @
12VDC
1k
Ohm
s
s
s
s
s s
s s
s
Earth
Ground
s
J3
Phone Line
J16
Reset
J4
Tamper
Battery
Start
Power
LED
Activity LED
J1
Ethernet
Outputs 3-6
J11
J10
K6 K7
Output 1 Output 2
Out1 Out2
J2
Link LED
J24
Cell Module
J18
Load
J6
s
s
PROG
J8 J14
J9 J15
J13
J17
J19
RED
YELLOW
GREEN
BLACK
Red
White (Data 1)
Green (Data 0)
Orange
Yellow
Black
Card Reader
CAUTION: DO NOT USE LOOPED WIRE
UNDER TERMINALS. BREAK WIRE RUN TO
PROVIDE SUPERVISION OF CONNECTIONS.
Using verification delays
on zones 9 and 10 is
optional. Use the
delays marked on the
smoke detectors.
WARNING
THIS UNIT MAY BE PROGRAMMED TO USE AN ALARM VERIFICATION FEATURE THAT
RESULTS IN DELAY OF THE SYSTEM ALARM SIGNAL FROM THE INDICATED CIRCUITS.
THE TOTAL DELAY (CONTROL UNIT PLUS SMOKE DETECTORS) SHALL NOT EXCEED 60
SECONDS. NO OTHER SMOKE DETECTOR SHALL BE CONNECTED TO THESE CIRCUITS
UNLESS APPROVED BY THE LOCAL AUTHORITY HAVING JURISDICTION (AHJ).
Intended Installation Environment - Indoor/Dry
