Preventative Maintenance
Optics System:
DAC verification:
The optic system is self-adjusting and will calibrate itself during analysis. A clean optic channel will have
a DAC value between 60 and 140. The DAC values for all points can be found by following these steps.
1. Enter Setup Menu
2. Enter Factory Menu
3. Enter password “1225”
4. Select the System tab

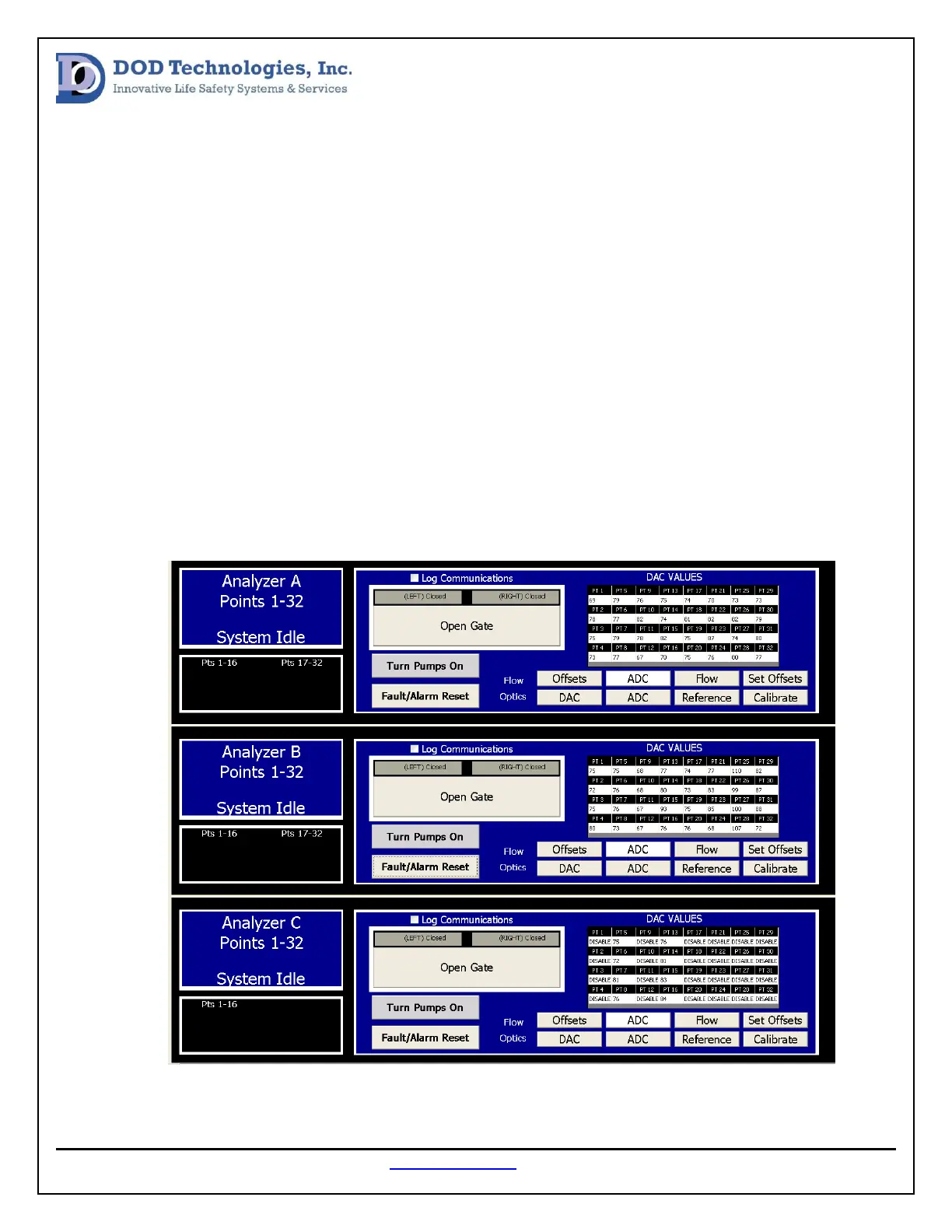

5. Press the DAC button for any active analyzer (see image below )
