If all power and communication verification are good and the Service Faults continue please contact
DOD Technologies for more technical support.
Gate Fault Procedure:
This procedure should be followed when any of the following messages appear in the CL96 event log:
1. Gate Open Fault (Service Fault)
2. Gate Close Fault (Service Fault)
Each analyzer has (2) micro switches and (2) gate assemblies that are wired into modules inside the
control box. The master micro switch is the purple wire at the input module and the slave micro switch

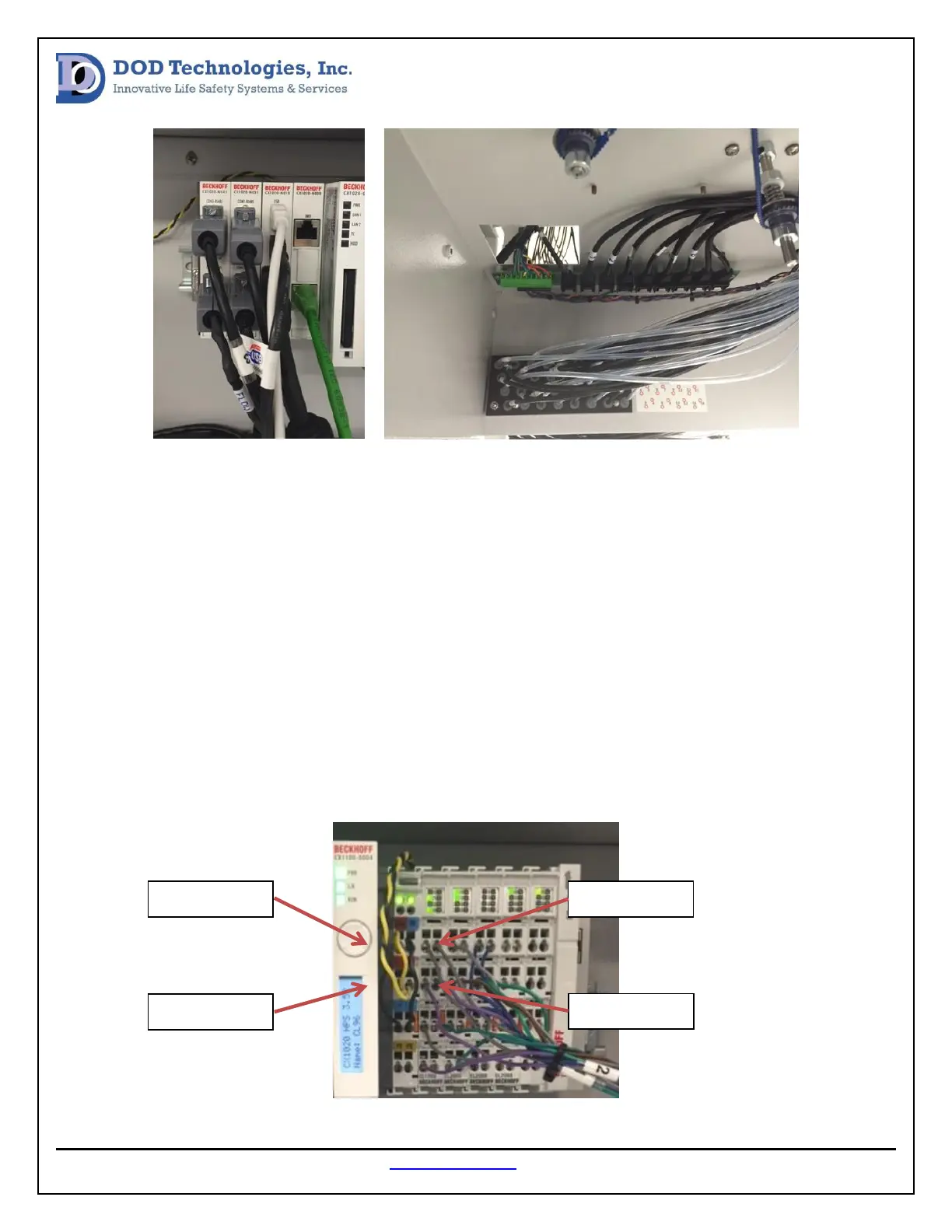

is the grey wire at the input module (see image below). The master gate is a green wire at the output
module and the slave gate is a blue wire at the output module. A control box wiring diagram can be
found in appendix section of the manual.
