Lubricating Gate Assembly:
Each analyzer has two gate assemblies located directly below an installed Chemlogic cassette. For the
gate assembly to work efficiently, the cam (see image below) attached to the motor must be lubricated
at least one time per year. This will allow the gate to open and close with as little resistance as necessary

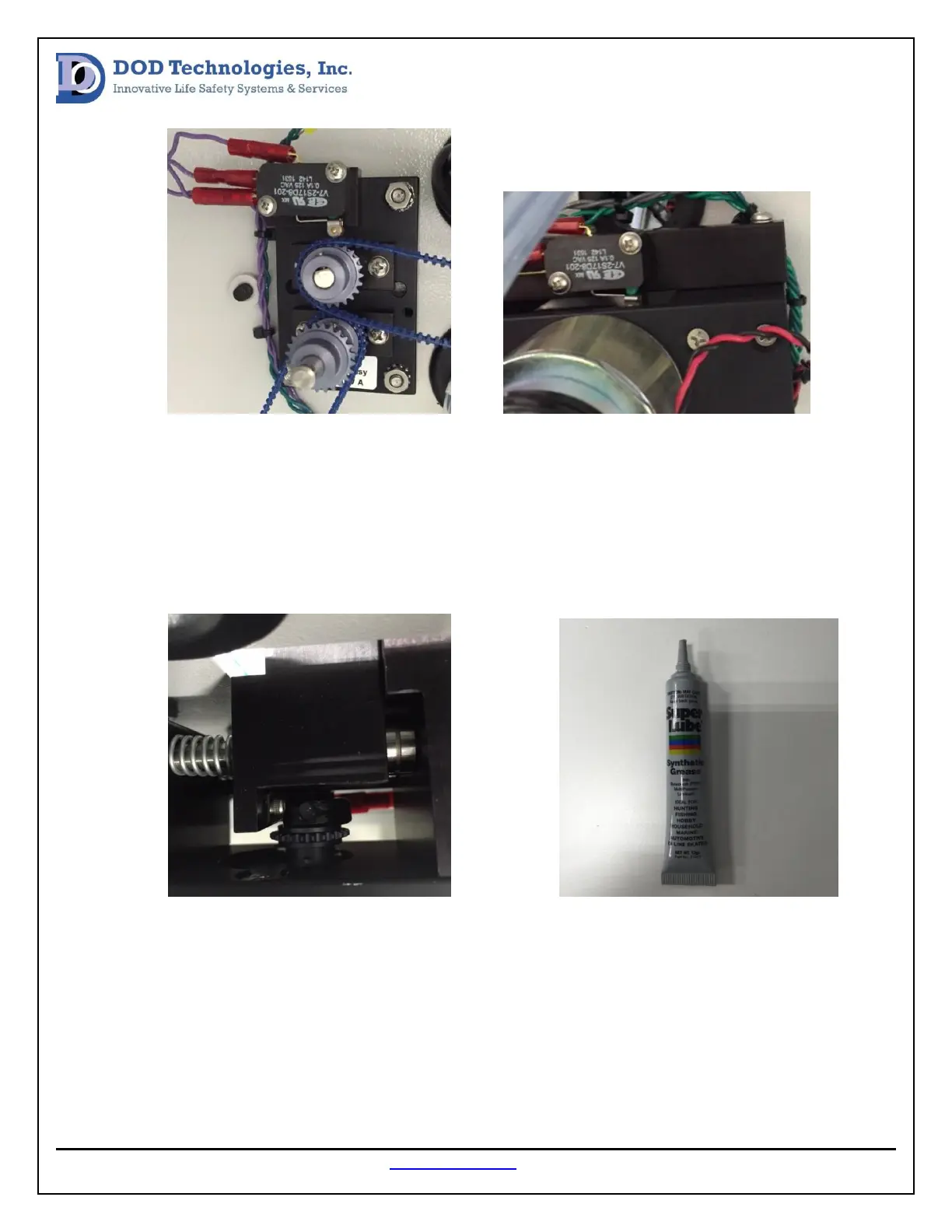

and extend the life on the motor. The cam can be lubricated with any synthetic grease. (See image
below) Place some grease on the cam then open and close the gate several times to disperse.
Power verification:
DC Voltage Verification Procedure:
The CL96 comes with two 24VDC power supplies, one 12VDC power supply and one 5VDC power supply.
Use the chart and images below to verify the voltages are within factory specifications.
