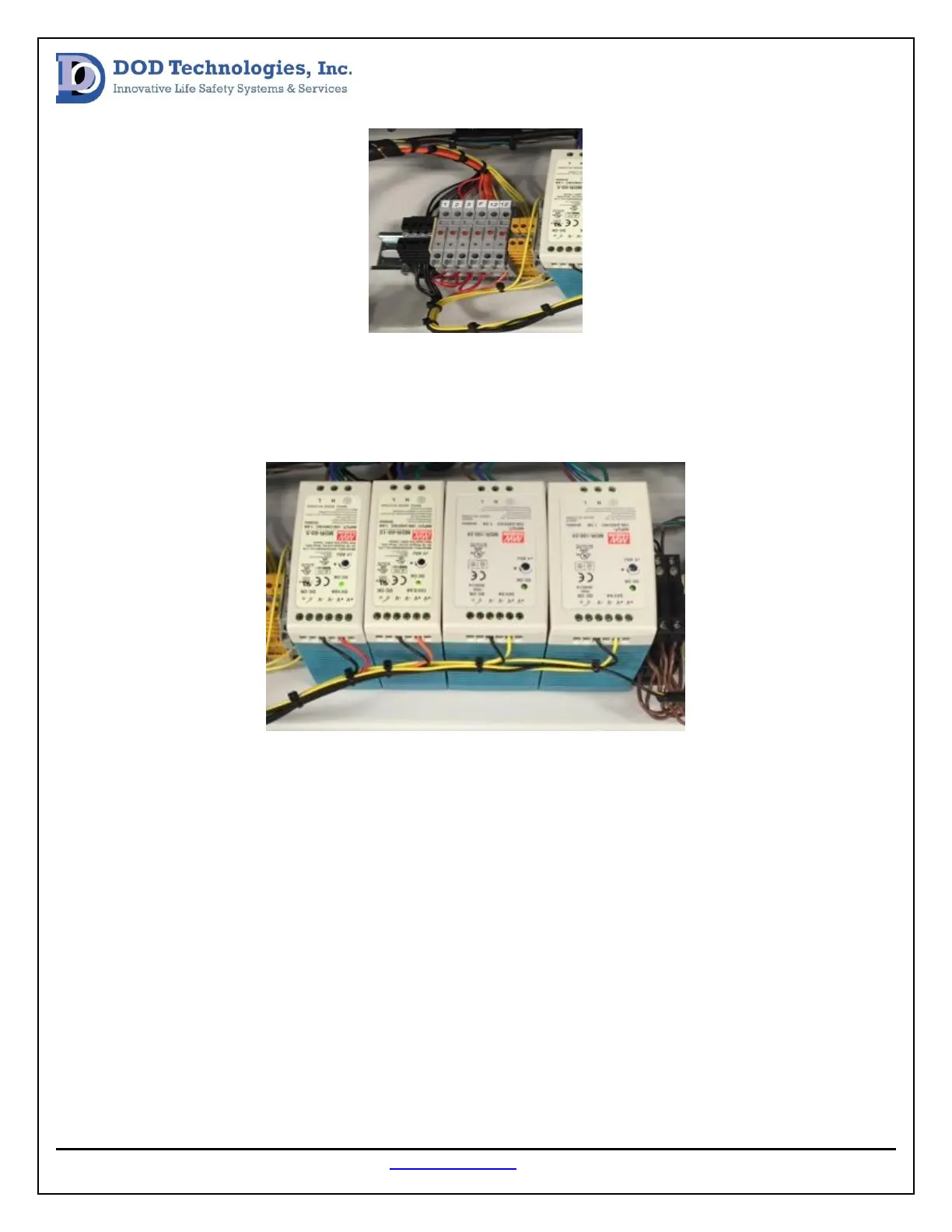

If the voltage here is also below the required 5.3 VDC measure the voltage at the 5V supply located on
the left (see image below). The output voltage on the supply must be at its max which is 6.18VDC. If the
voltage is below this, use the potentiometer to turn it all the way up. If the supply cannot be turn up to
6.1VDC it must be replaced.
If the power system is operating correctly but the fault returns, follow the Communication Verification
Procedure.
Communication Verification:
Verify that the orange and brown wires are tight and fully inserted into the optic block (see image
below).
