RV So Start Accessory Installation
qq
ww
ee
rr

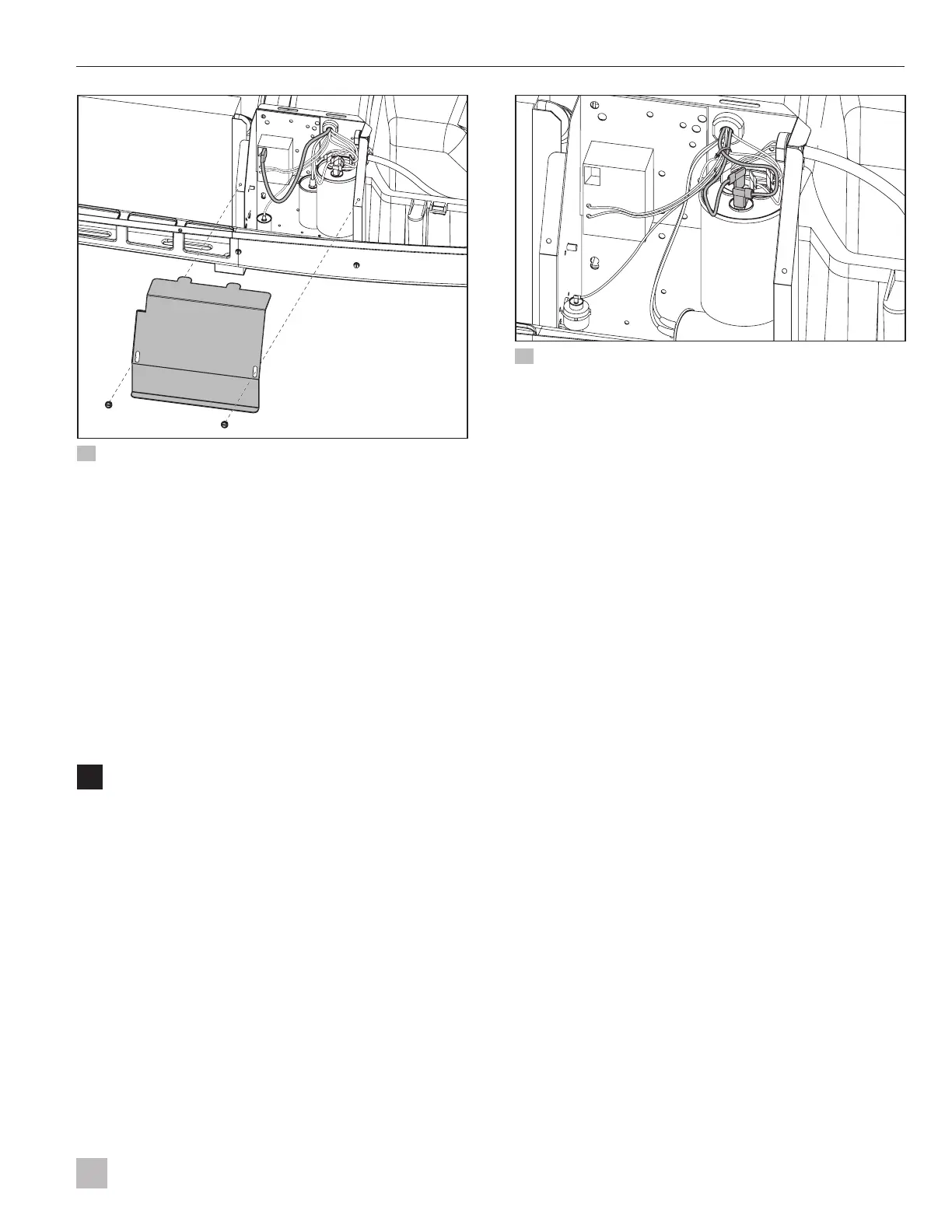

37 Disconnecting the blue wire from the relay block
q
Electrical box cover
screws
e
Relay block
r
Blue compressor
wire
w
Electrical box cover
3. Using the 5/16 in. deep well nut driver, locate and
remove the two screws from the front of the electrical
box.
4. Using the needle nose pliers, remove the blue wire
from the relay block inside the electrical box.
8.2.2 Disconnecting the compressor
wiring harness
WARNING: Electric shock hazard.
There is a risk of electrical shock from the energy
stored in the capacitors. Wait for five minutes aer
the shutdown of equipment before performing
any installation activity. Failure to obey this warning
could result in death or serious injury.
a
qq
ww
ee
oo
rr
tt
uu
ii
yy
38 Disconnecting the compressor wires from the capacitor
q
Strain relief
y
Motor starter capacitor
w
Wire tie
u
Capacitor
e
Motor
starter
i
White booted
compressor wire
r
Holding clamp
o
Red compressor wire
t
Motor starter
capacitor wires
a
Gasket putty
1. Using a multimeter, confirm that the capacitor is fully
discharged.
2. Using the needle nose pliers, disconnect the red
compressor wire from the capacitor.
3. Using the needle nose pliers, disconnect the white
compressor wire from the capacitor.
4. Using the needle nose pliers, squeeze the strain relief
to pull it toward the capacitor.
5. Open the strain relief and remove the blue, red,
and white wires, pulling them out of the enclosure
through the hole.
6. Remove the gasket putty, reserving it for later reuse. If
necessary, use the pliers to aid in the removal.
7. Trace the red motor starter wire to the capacitor and
disconnect it from the capacitor.
8. Trace the white, disconnected motor starter capacitor
wire to the capacitor and disconnect it from the
capacitor.
I
The motor starter capacitor may be vertical or
horizontal, depending on the AC unit. Do not
remove the motor starter capacitor or the motor
starter from the AC unit.
