24
EN
Installation RV So Start Accessory
9. If the motor starter comes out of its holding clamp,
return it to the holding clamp.
10. Using a 6 in. (152 mm) length of electrical tape,
secure the motor starter capacitor wires together and
cover the terminal ends. Use more electrical tape
if needed to cover the terminal ends completely to
ensure no metal is exposed.
qq
ww
ee
rr

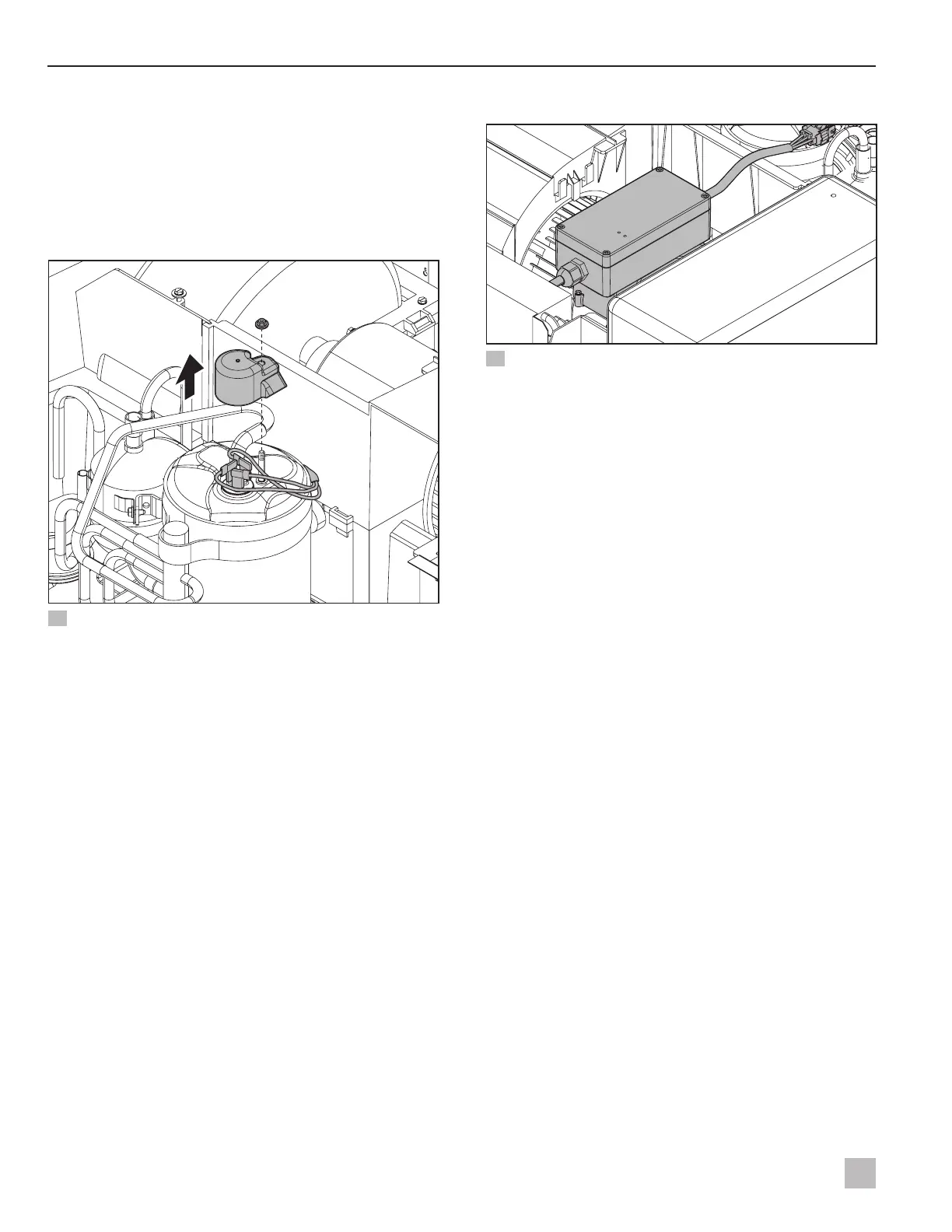

39 Disconnecting the compressor wires from the compressor
q
Compressor cap nut
and washer
e
White, red, and blue
compressor wires
w
Compressor cap
r
Compressor
11. Using the 5/16 in. deep well nut driver, locate and
remove the compressor cap nut and washer and
the compressor cap from the top of the compressor
wires.
12. Using the needle nose pliers, disconnect the white,
red, and blue compressor wires from the top of the
compressor.
13. Using a 6 in. (152 mm) length of electrical tape,
secure the disconnected white, red, and blue
compressor wires together and cover the terminal
ends. Use more electrical tape if needed to cover
the terminal ends completely to ensure no metal is
exposed.
8.2.3 Mounting the device
qq
ww
ee
40 Mounting the device and mounting bracket assembled
q
Fan motor
e
Device - compressor
side
w
Device
1. Holding the device with the compressor side towards
the compressor, center the device on top of the fan
motor.
2. Avoiding any wires, route the mounting bracket hose
clamp ends around the fan motor so the ends meet.
3. Use the connected worm screw to hold the mounting
bracket hose clamp ends loosely around the fan
motor.
I
If the mounting bracket moved during the
previous step, shi the mounting bracket back
to realign at the center of the fan motor.
4. Using the worm screw, finish tightening the aligned
mounting bracket around the fan motor to 40 in. lbs
(4.5 Nm).
