INSTALLATION
3-24 EPT019297 Issue 1 November 2016
Ink and Make-up Cartridge Installation
WARNINGS: (1) Protective equipment such as gloves and glasses must be worn when
this procedure is carried out. Physical contact with printer ink or
make-up can cause skin or eye damage.
(2) The print head must be placed in a wash station, or positioned over a
beaker made of a conducting material and securely connected to
earth (ground) in case the jet is misaligned out of the gutter. The
electrostatic charges on the ink drops used for printing can cause a
fire hazard.
This procedure should be followed when installing the ink and make-up cartridge for the first time.
If replacing an old or empty cartridge, follow the procedure described on page 5-4.
Tools required: 6mm Hex Key.
To install the Ink and Make-up cartridges:
(1) At the print head, remove the holster by pressing in the two holster retaining clips on the
sides of the print head.
(2) Fit the print head into a wash station, or place a beaker made of a conducting material and
connected to earth (ground) underneath the print head.
(3) Remove the silicone tube cap over the gutter. Check that the print head is clean and dry.
Silicone Tube Cap

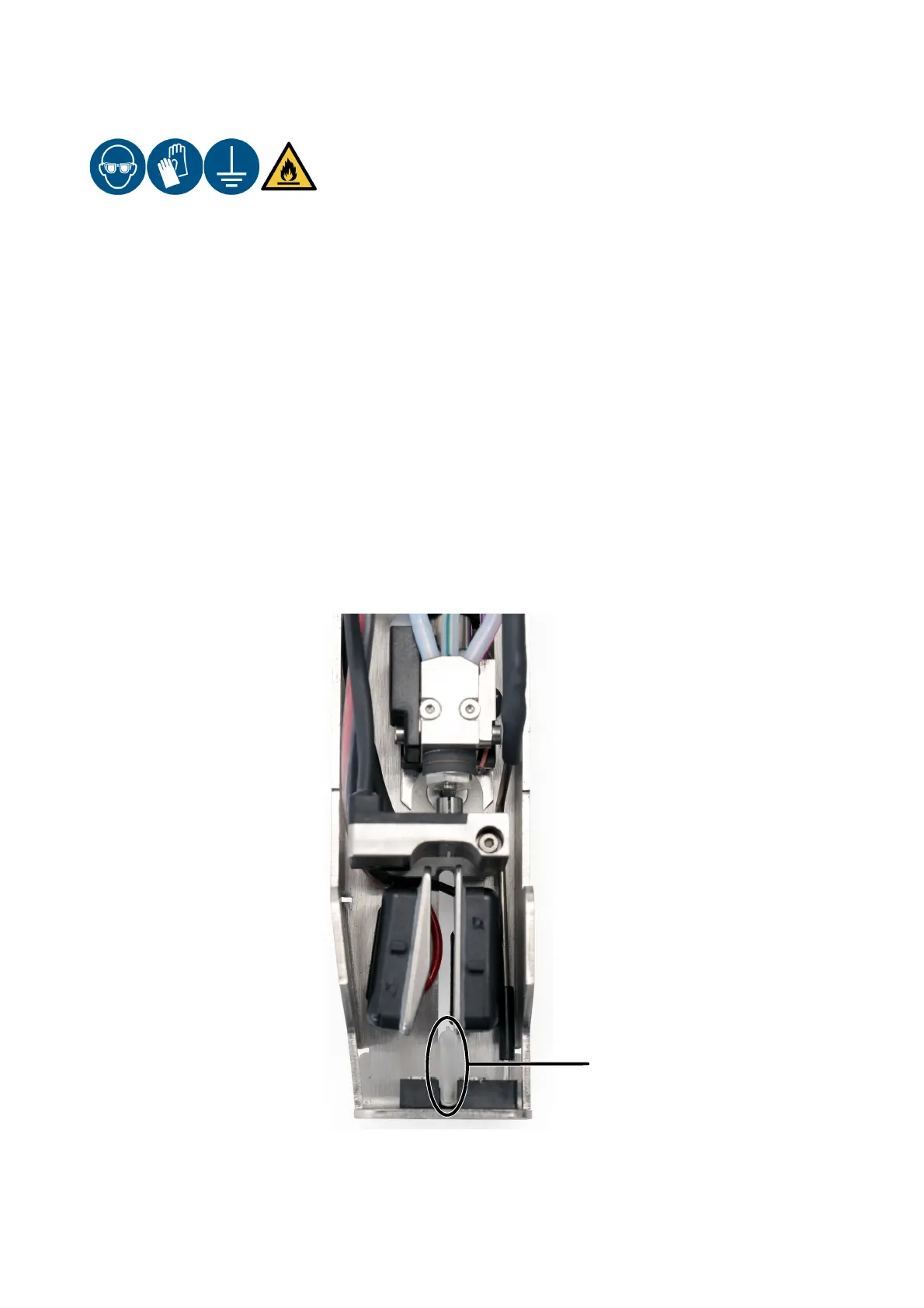

Silicone Tube Cap Removal
