Operation Section
-105-

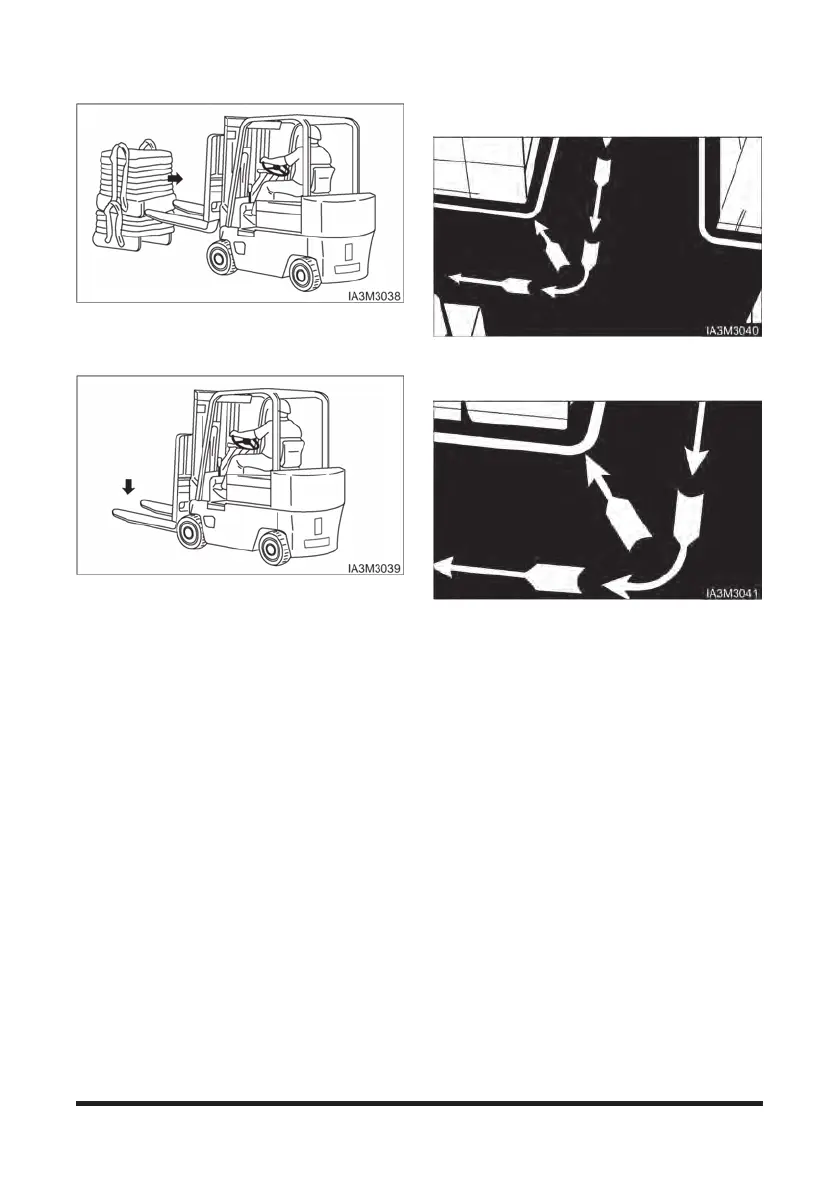

Typical Example
3. Deposit the load and BACK away carefully to
disengage the forks.
Typical Example
4. Lower the carriage and forks to the travel position or
to the park position.
Turning
1. When turning sharp corners, keep close to the inside
corner. Begin the turn when the inside drive wheel
meets the corner.
2. In narrow aisles, keep away from the stockpile when
turning into the aisle. Allow for counterweight swing.
To Next Page
