Maintenance Section
-145-

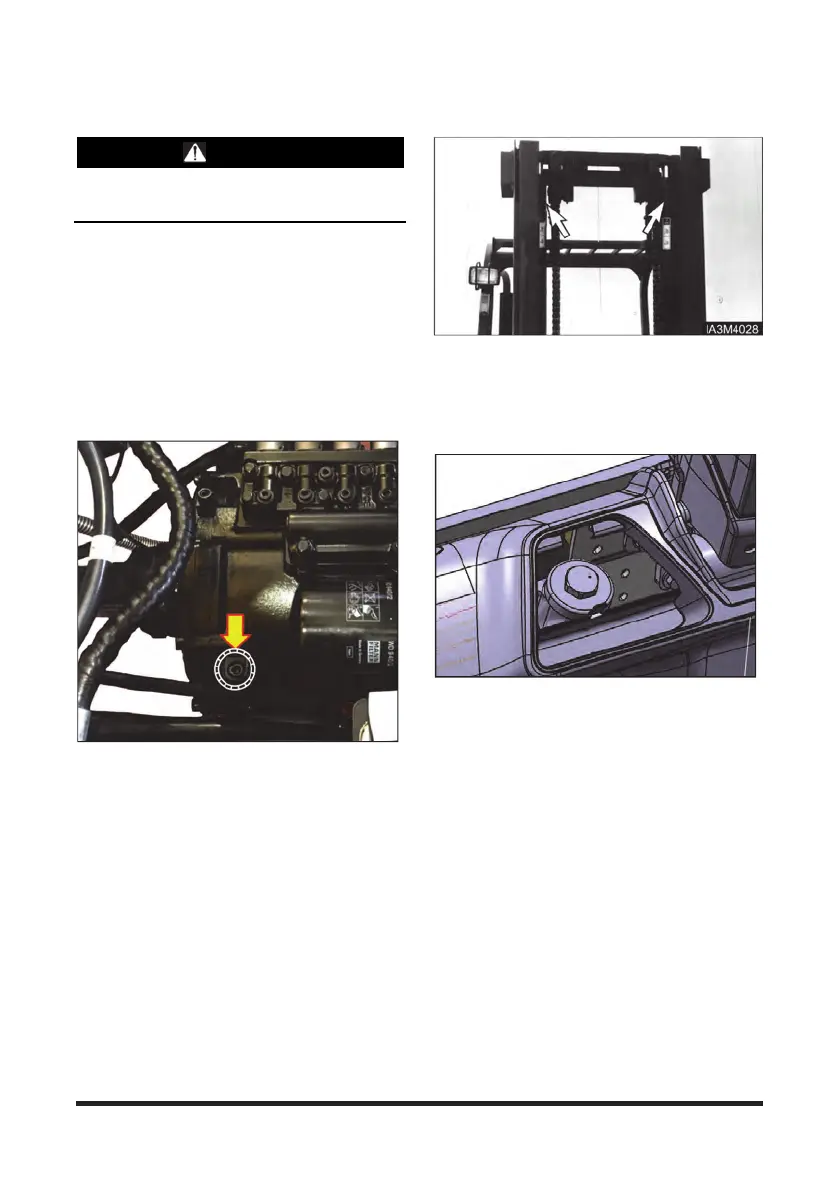

Transmission Oil Level - Check
WARNING
Hot oil and components can cause personal injury.
Do not allow hot oil or components to contact skin.
1. Start and operate the lift truck until the engine
reaches normal operating temperature.
2. Park the lift truck on level ground, with the forks
lowered, the parking brake applied, and the
transmission controls in NEUTRAL.
3. With the brake applied and the engine at low idle,
shift the directional control lever to forward and then
to reverse, to fill the clutches.
4. Shift the direction control lever to the NEUTRAL
position.
5. Open the access door in floor plate.
6. Remove the dipstick/filter cap. Observe the oil level.
7. Maintain the oil level between the Min and Max
marks on the dipstick/filter cap.
When the oil temperature is 40°C approximately,
the cold side mark on the dipstick is applicable.
When the oil temperature is 80°C approximately,
the hot side mark on the dipstick is applicable.
8. Close the access door in floor plate.
9. Stop the engine.
Mast Channels – Lubricate
The channels on the roller-type mast require a break-in
period. Apply a light film of lubricant on the channels
where the rollers ride. This will prevent metal peel until
the rollers set a pattern.
Brake Oil Level – Check
The brake reservoir is located on the left side of the
steering column.
1. Remove the filler cap.
2. Maintain the brake fluid level to the fluid level mark
on the brake system reservoir.
3. Clean the filter cap and install it again.
