Operator’s Station and Monitoring Systems
Instrument Panel
Your lift truck may not have the same indicator or warning lights as shown in the illustrations.
However, the symbols on the indicators and lights on your panel identify what those particular items are.
Also, the symbol for each of the items is identified and an explanation of their function and location is described on
the following pages.

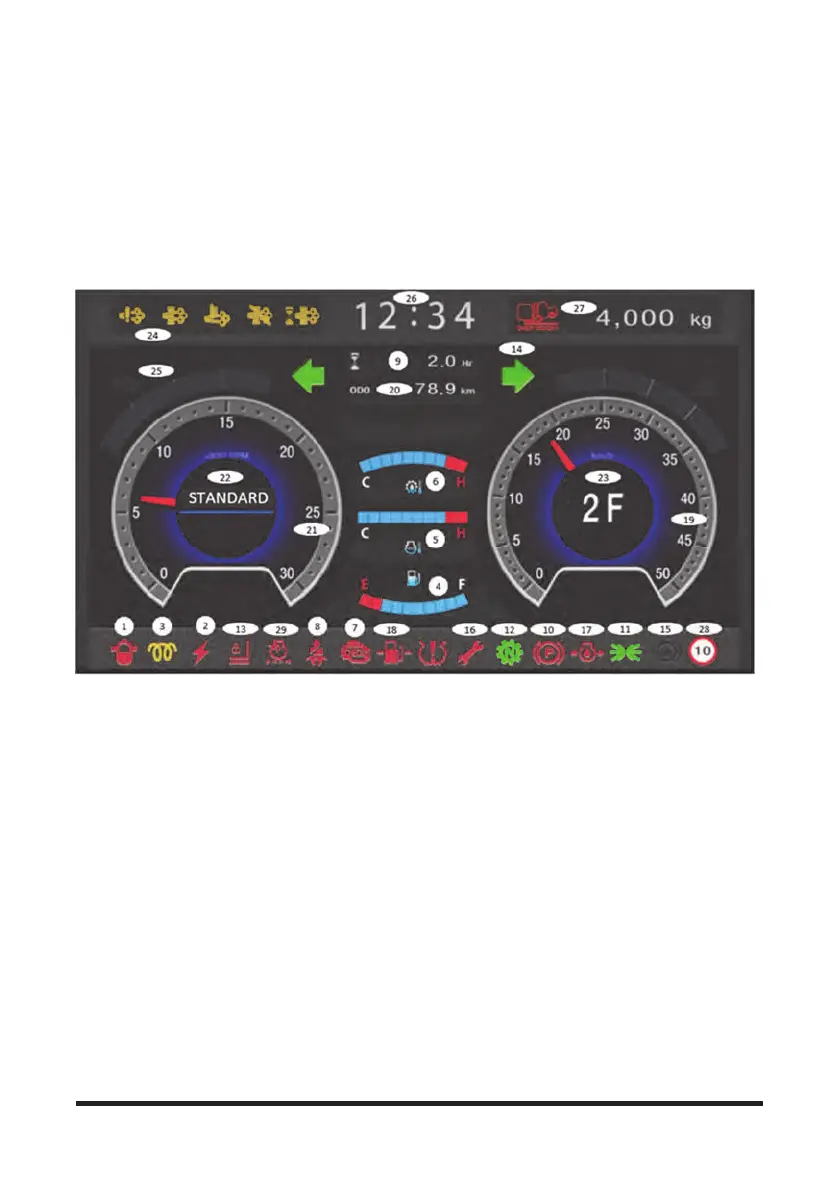

1. Diesel Engine Water in Fuel Filter Indicator Light 16. ECT Warning Lamp
2. Alternator Indicator Light 17. Engine Oil Pressure Warning Lamp
3. Diesel Engine Start Preheat Indicator Light 18. Fuel Warning Lamp
4. Fuel Level Gauge 19. Speedometer
5. Engine Coolant Temperature Gauge 20. Odometer
6. Transmission Oil Temperature Gauge 21. Engine rpm gauge
7. Engine Malfunction Indicator Light (MIL) 22. Vehicle mode
8. Seat Belt Warning Light (If Equipment) 23. T/M gear inform
9. Service Hour Meter 24. After treatment indicator(After treatment only)
10. Parking Indicator Light 25. Regen guage (After treatment only)
11. Front Floodlights
12. Transmission Neutral Position Light
13. Mast Interlock
14. Directional Turning Indicator Light
15. Brake Oil Level
26. Clock
27. Weight scale indicator (Optional)
28. Speed limit indicator
29. Air cleaner indicator
