Doosan D55C-9 - Carriage Side Rollers Thrust (if Equipped) - Lubricate; Carriage Sideshifter (if Equipped) - Lubricate

Maintenance Section
-156-

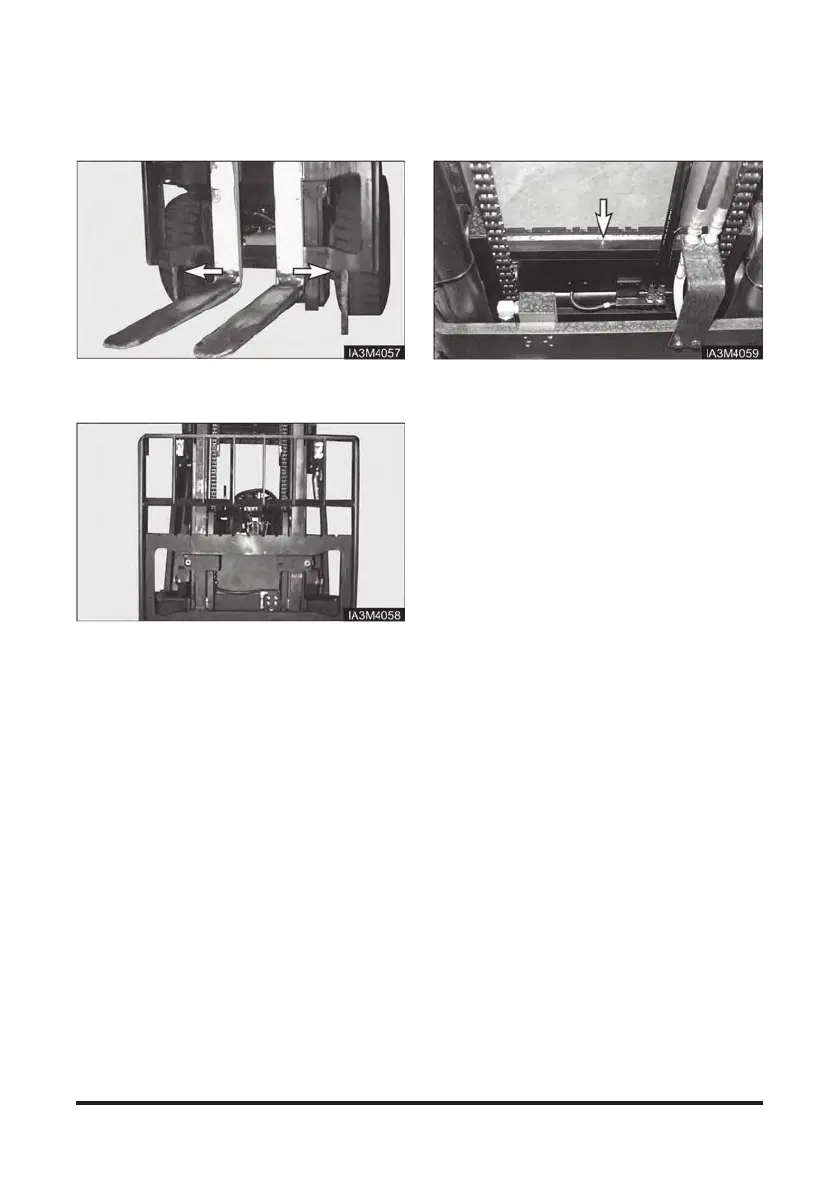

Carriage Side Rollers Thrust (If
Equipped) - Lubricate
1. Raise the carriage high enough to gain access to the
side thrust rollers on the back side of the carriage.
Block the carriage in this position.
2. Lubricate 2 side thrust roller fittings, one on each side
of the mast.
3. Raise the carriage, remove the blocking. Lower the
carriage to the floor.
Carriage Sideshifter (If Equipped) –
Lubricate
1. Lubricate 4 (6) fittings. The forks may have to be
moved to gain access to all of the fittings.
2. Operate the sideshifter carriage through several
complete cycles to distribute the grease the carriage
to the floor.
