Maintenance Section
-163-

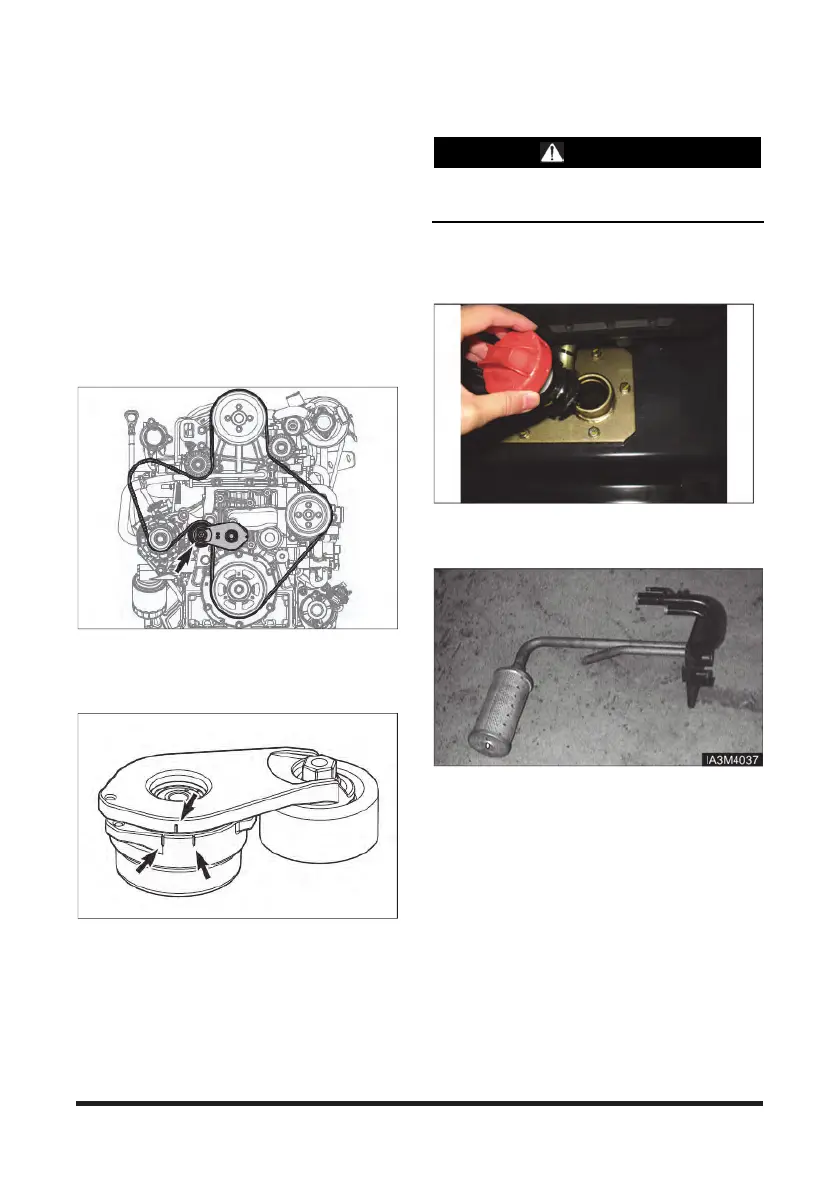

Belt – Check, Adjust
1. The belt is equipped with an auto tensioner which
automatically adjusts the belt tension so there is no
need for extra adjustment of the tension.
During daily inspections, be sure to inspect whether the
pointer on the auto tensioner is indicating that it is time for
a replacement, as well as whether there is any damage
to the belt due to external factors.
Replacing the Micro V-Belt if necessary.
Replace the belt set in the event that the pointer on
the auto tensioner indicates that it is time for a
replacement, or cases where damage to the belt from
external factors has been confirmed and there are
concerns of severe damage occurring.
Inspecting the condition
Inspect the Micro V-belt for cracks, oil, overheating
and wear.
The vertical rod shown by the arrow is the "pointer," and
the belt replacement period is indicated when this
"Pointer" enters the horizontal range shown in orange.
NOTE: The minimum/maximum range indication is a
reference value; the belt must be inspected
according to its maintenance schedule.
Hydraulic Return Filter - Change
WARNING
Hot oil and components can cause personal injury.
Do not allow hot oil or components to contact skin.
Park the lift truck on level ground, with the forks lowered,
the parking brake engaged, the transmission in
NEUTRAL, and the engine stopped.
1. Raise the hood and seat assembly. Loosen the bolts
of the hydraulic tank cover, and remove the hydraulic
tank cover with filter assembly.
2. Remove filter assembly from the hydraulic tank cover.
3. Install new filter assembly in the hydraulic tank cover.
4. Inspect cover gasket for damage, replace it if
necessary.
5. Clean and Install the cover and tighten retaining bolts.
6. Lower the hood and seat assembly.
