Maintenance Section
-148-

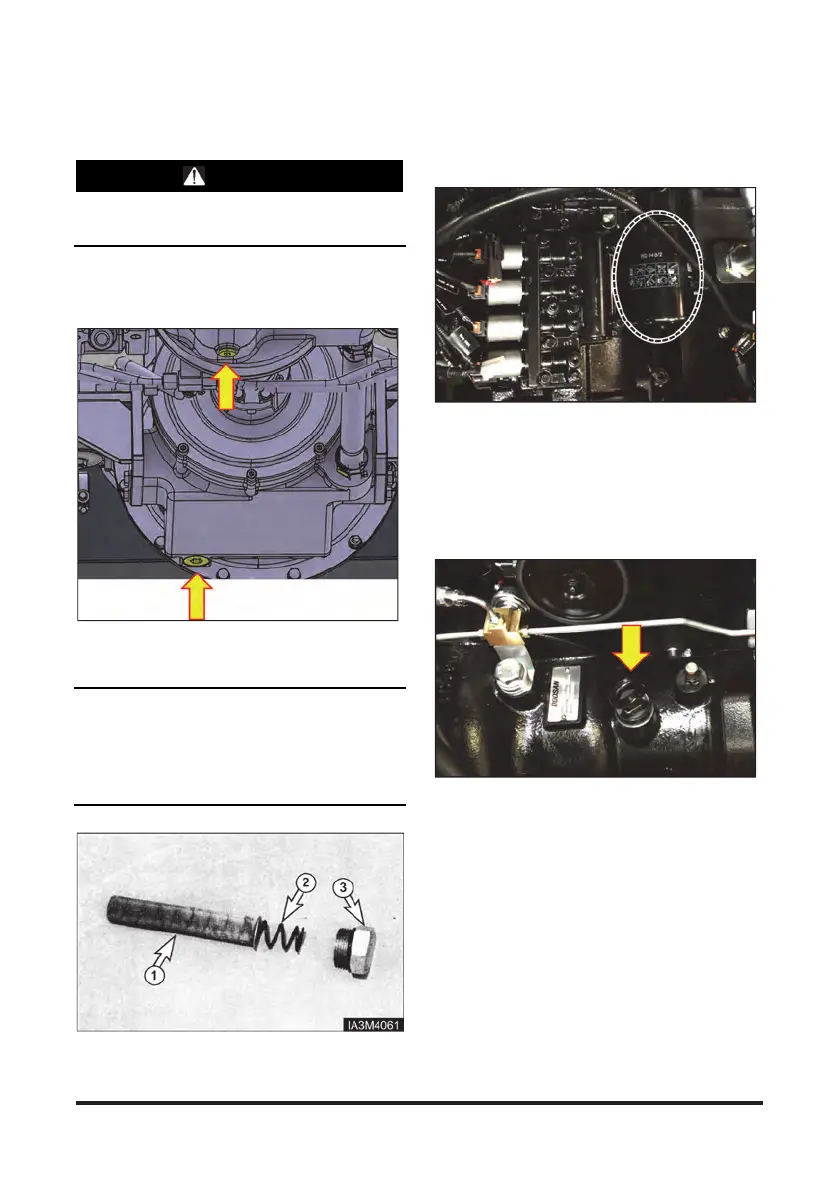

Drive Axle Oil, Transmission Oil, Oil
Filter & Strainer - Clean, Change
WARNING
Hot oil and components can cause personal injury.
Do not allow hot oil or components to contact skin.
Park the lift truck on level ground, with the forks lowered,
the parking brake engaged, the transmission in
NEUTRAL, and the engine stopped.
1. Remove the drain plug, spring and strainer. Allow the
oil to drain.
NOTICE
Careless disposal of waste oil can harm the environment
and can be dangerous to persons.
Always dispose of waste oil to authorized and licensed
personnel only.
2. Wash the strainer (screen, 1), spring (2) and drain
plug (3) in clean, nonflammable solvent. Dry and
install the strainer, spring and drain plug.
3. Raise the hood and seat assembly.
4. Remove and discard the oil filter. Wipe off the filter
base. Make sure all of the old seal is removed.
5. Put a small amount of clean oil on the seal on the
new filter. Install the filter by hand. When the filter
contacts the base, tighten it an additional 3/4 turn.
6. Close the hood and seat assembly.
7. Open the access door in the floor plate.
8. Remove the dipstick/filter cap. Fill the transmission
with new oil. See “Refill Capacities” Install the
dipstick/ filter cap.
9. Start the engine.
10. With the service brake applied and engine at low idle,
shift the transmission to forward and reverse to fill the
clutches.
11. Shift the transmission into NEUTRAL. Apply the
parking brake.
12. Remove the dipstick/ filter cap.
13. Maintain the oil level between the Min and Max
marks on the dipstick/filter cap.
To Next Page
