OP000507
2-11

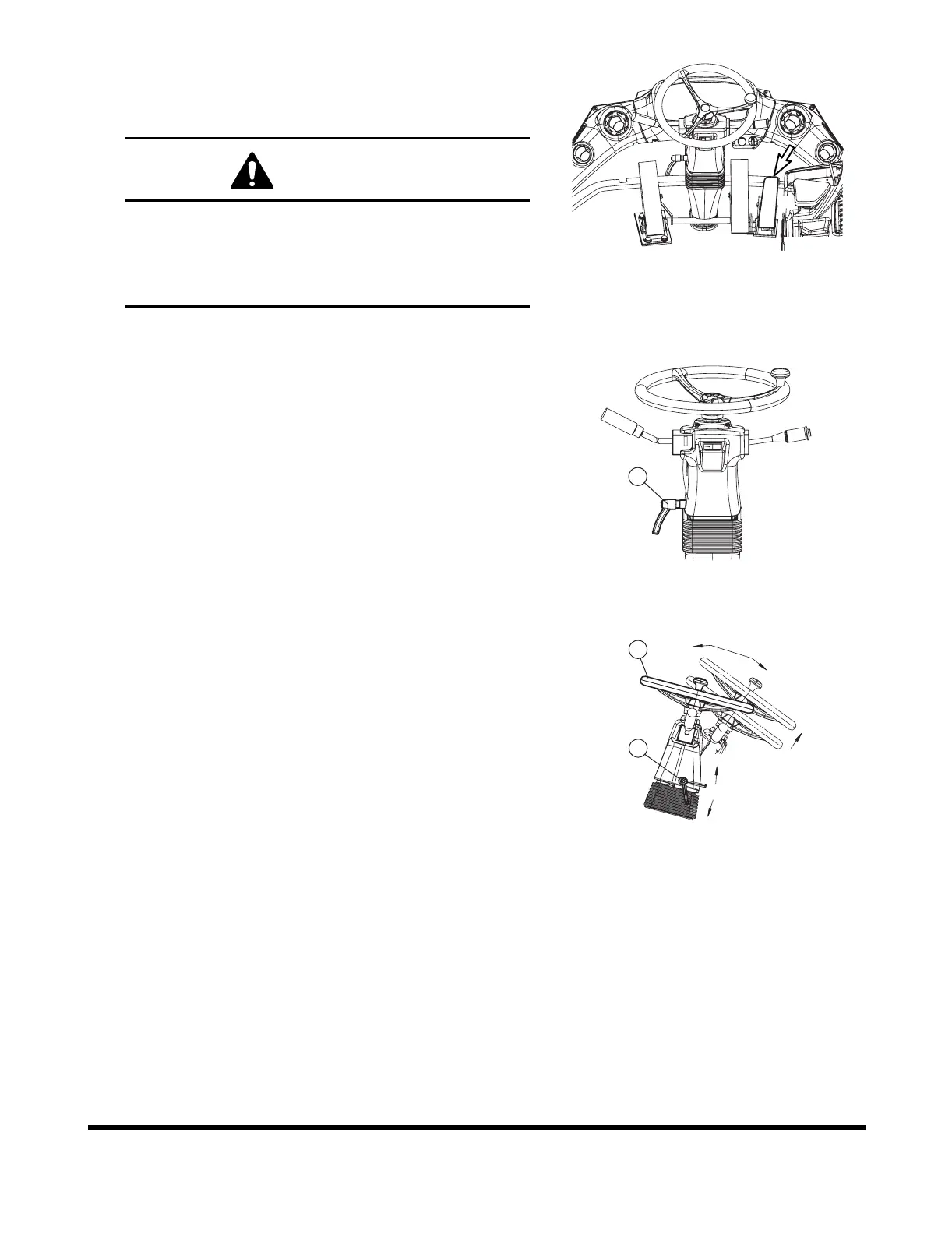

Operating Controls
4. Accelerator Pedal
Controls the travel speed of loader and working speed
of load handling system.
5. Steering Wheel Adjustment Lever
Control lever (1, Figure 12) is used allow wheel to be
moved to the most convenient position for the operator.
Adjusting Steering Wheel Tilt
Pull lever (1, Figure 13) upward and move wheel (2,
Figure 13) to desired position. Push lever down (Tilt
angle is 21°).
Adjusting Steering Wheel Telescopic
Pull lever (1, Figure 13) upward and move wheel (2,
Figure 13) to desired position. Push lever down
(telescopic stroke is 80 mm)
FG003937
Figure 11
CAUTION!
The further the pedal is pressed, the more engine
speed increases. However, do not press the pedal
more than necessary; otherwise it will increase fuel
consumption, cause short life on the engine, and in
the worst case lead to a serious accident.
1
FG003887
Figure 12
1
2
FG003888
RELEASE
LOCK
Figure 13
To Next Page
