OP000507Operating Controls
2-14

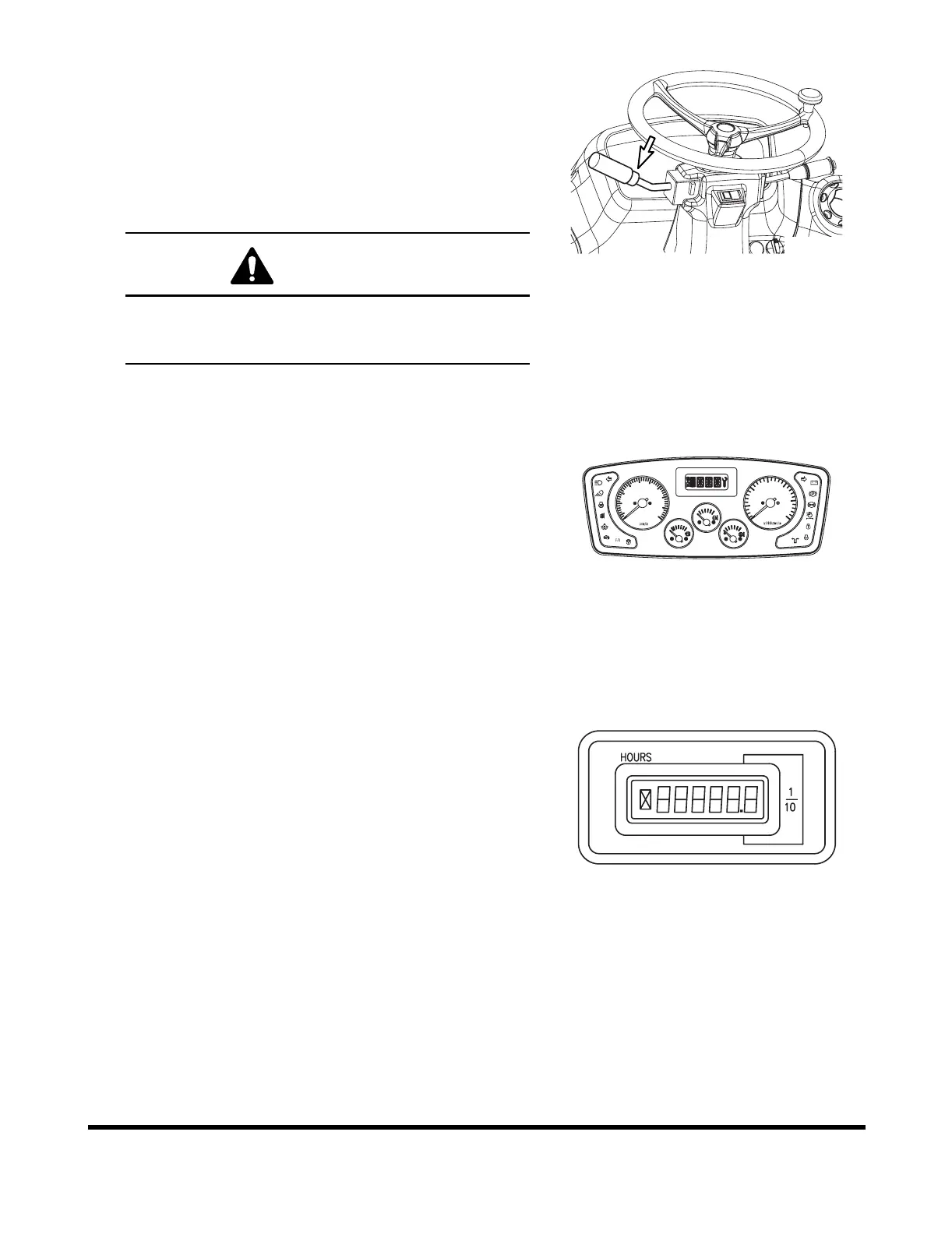

A transmission neutral lever lock is in base of
transmission lever. This neutral lever lock prevents the
transmission lever from being moved out of
"NEUTRAL."
N "NEUTRAL LOCK" position. Prevents lever from
being moved out of "NEUTRAL."
D "DRIVE" position. Allows lever to be moved from
"NEUTRAL" to "FORWARD and REVERSE."
10. Front Instrument Panel
See “Front Instrument Panel” on page 2-16.
11. Hour Meter
A LCD Meter that records total time. When engine is
running, the hourglass icon blinks every four seconds.
This shows that the hour meter is working.
FG003943
Figure 20
CAUTION!
"LOCK" transmission lever. Whenever machine is
parked, "LOCK" transmission lever in "NEUTRAL"
to prevent accidental machine movement.
10
0
5
20
30
25
15
40
30
50
20
0
10
FG006053
Figure 21
FG004112
Figure 22
To Next Page
