OP000507
2-13
Operating Controls

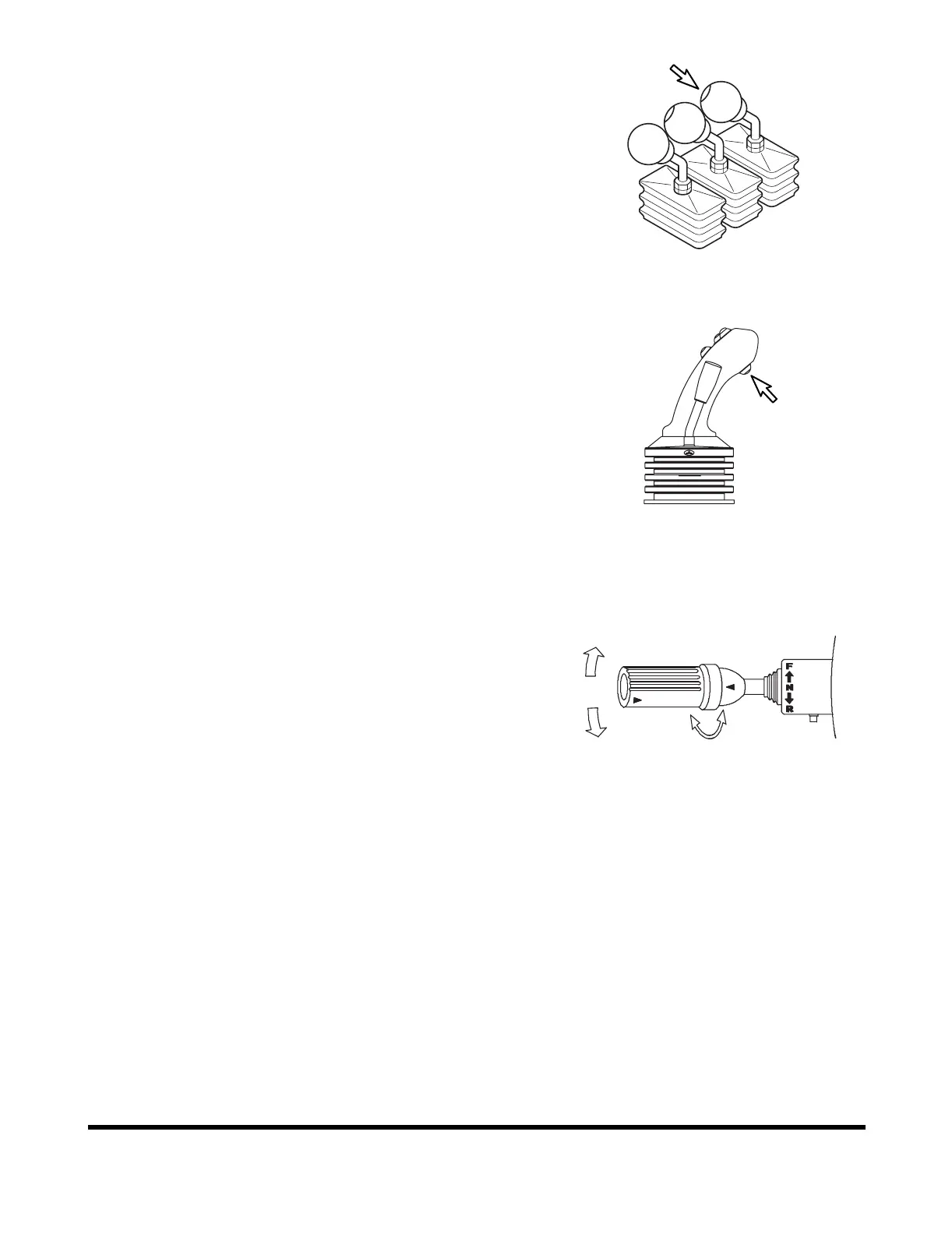

A second kick-down switch (Figure 17) is on the right
button in the tip of the pilot control valve lever
(joystick) (Right one of two levers).
9. Transmission Lever
F Forward - When the lever is pushed forward,
transmission is in "FORWARD." 1st, 2nd, 3rd and
4th are available.
N Neutral - When the lever is returned to the center
position, between forward and reverse, the
transmission is in "NEUTRAL."
R Reverse - When the lever is pulled back,
transmission is in "REVERSE" 1st, 2nd and 3rd
are available.
Rotating the switch shifts transmission between 1st,
2nd, 3rd or 4th gears.
NOTE: There is a transmission display, on the dash,
that indicates, gears, direction of travel, error
codes and kick-down activation. (See page
2-17)
FG003940
Figure 17
FG003936
Figure 18
Figure 19
R
N
F
2
3
1
HAAA3680
To Next Page
